80kv Transformer Oil Dielectric Strength Tester Oil Bdv Analyzer Price
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Weight：50kg
- Power Source：110V,127V,220V,50,60Hz
- Application：Transformer Oil Bdv Test
- Test Stndards：IEC156, Is6792, BS5874, ASTM D1816 , ASTM D877
- Max Output Voltage：AC80kv,100kv
- Max. Test Times：9
Base Info
- Rate of Voltage Rise：0.5kv,S, 2kv,S, 3kv,S, 5kv,S
- Temperature Measurement Range：0°c to 70°c, or Better
- Data Storage：100 Groups
- Stir Time：0~999s
- Oil Temperature Test：Yes
- Transport Package：Plywood Case
- Specification：50KG
- Trademark：GOLD
- Origin：Chongqing
- HS Code：9030849000
- Production Capacity：500 Pieces,Month
Description
Basic Info.
Rate of Voltage Rise 0.5kv/S, 2kv/S, 3kv/S, 5kv/S Temperature Measurement Range 0°c to 70°c, or Better Data Storage 100 Groups Stir Time 0~999s Oil Temperature Test Yes Transport Package Plywood Case Specification 50KG Trademark GOLD Origin Chongqing HS Code 9030849000 Production Capacity 500 Pieces/MonthProduct Description

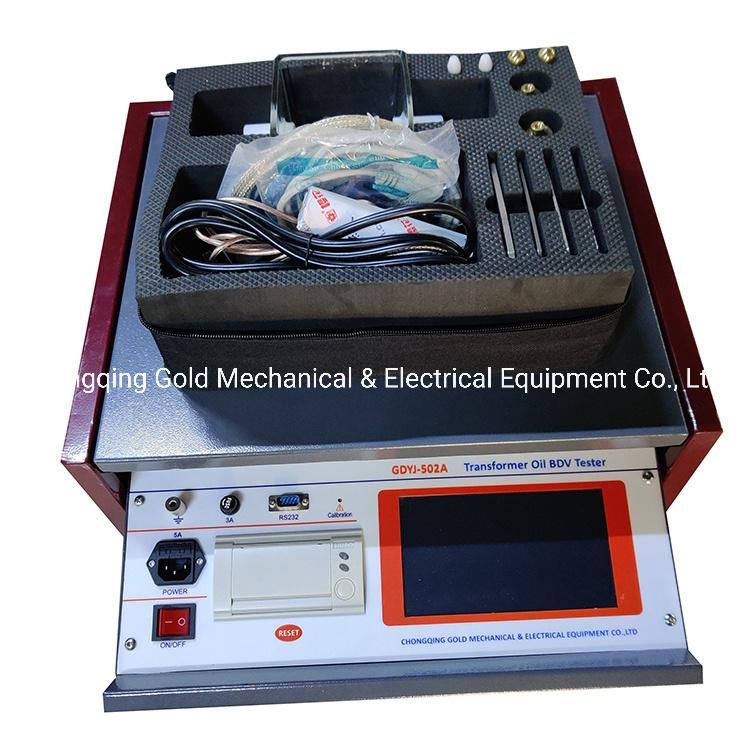

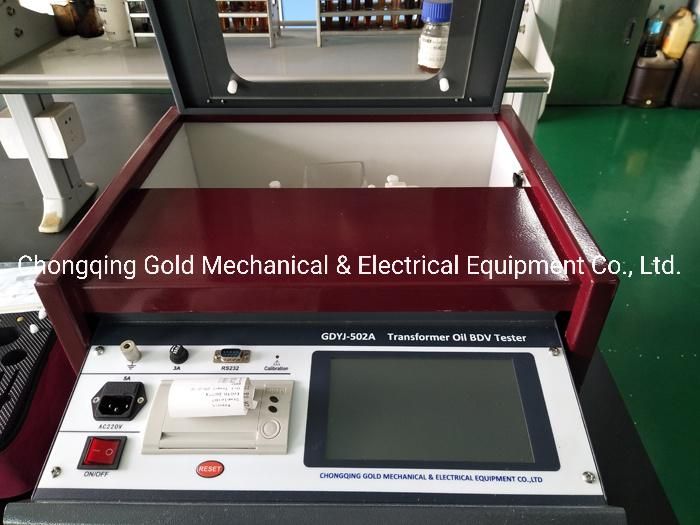

80KV Transformer Oil Dielectric Strength Tester Oil BDV Analyzer Price
Introduction:
80KV Transformer Oil Dielectric Strength Tester Oil BDV Analyzer Price is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;
The oil test vessel with temperature measurement unit, so it can detect oil temperature.
With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
80KV Transformer Oil Dielectric Strength Tester Oil BDV Analyzer Price has large LCD display, all the selection can be done by touch panel with color LCD;
80KV Transformer Oil Dielectric Strength Tester Oil BDV Analyzer Price also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
It is multi-functional, stable, and easy for operation
Specifications:
1 | Output voltage | AC 0V~80KV |
2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
3 | Max. test times | 9 |
4 | Stir time | 0~999s |
5 | Wait time | 0~999s |
6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
7 | Resolution | 0.1KV |
8 | Temperature measurement range | 0°C to 70°C, or better |
9 | Temperature resolution | 1°C, or better |
10 | Data storage | 100 groups |
11 | Weight | 38kg |
12 | Size | 550 mm*500mm*580mm |
13 | Power supply | AC220V, 50Hz |
14 | Working environment | Room temperature to 45°C, humidity<85% |

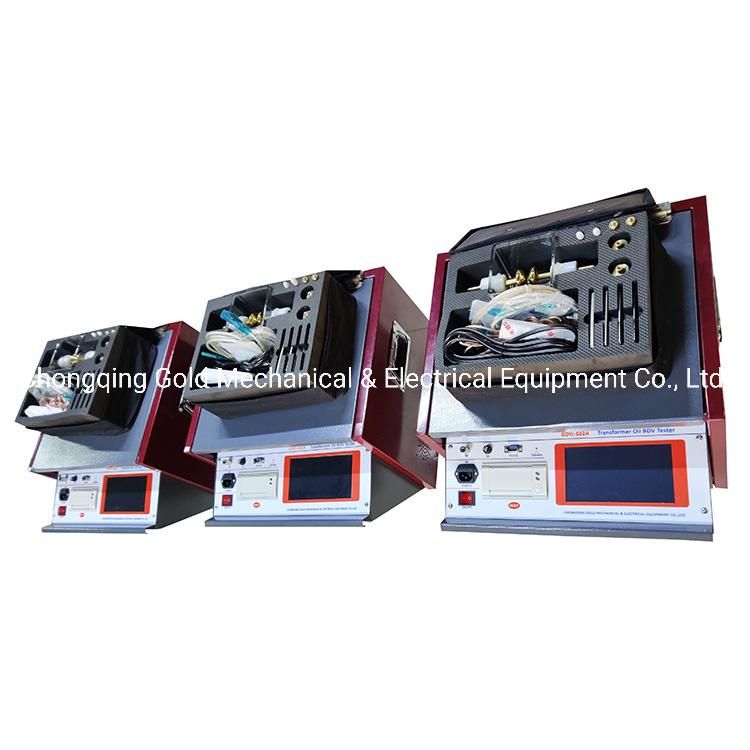

Three Sets GDYJ-502A 80KV Transformer Oil BDV Tester Sold to Philippines
