Borehole Digital Inclinometer Cx-901f
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package：Aluminum Carrying Case
- Specification：weight 20kg
- Trademark：C-TECH
- Origin：China Mainland
Base Info
- Model NO.：CX-901F
- HS Code：90248000
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. CX-901F HS Code 90248000 Production Capacity 100 Sets/MonthProduct Description
CX-901F Borehole Digital Inclinometer system
CX-901F type Inclinometer is widely used in the enginieering aspects such as deep excavation, subway foundation, highway foundation, retaining wall, dam body, landslide and so on to monitor the internal movement of soil. Full set equipment includes reading device, special cable, movable probe, communication and data processing software and so on.
Specifications:
| Measuring range | ±30° |
| Resolution | 0.01mm/500mm |
| Probe accuracy | ±2mm/20m |
| Work temperature | -25ºC~+55ºC |
| Water pressure resistance | 2.0MP |
| Seimic capacity | 2000g |
| Guide wheel space | 500mm |
| Probe dimension | dia. 28 x 690mm |
| Probe weight | 2.6kg |

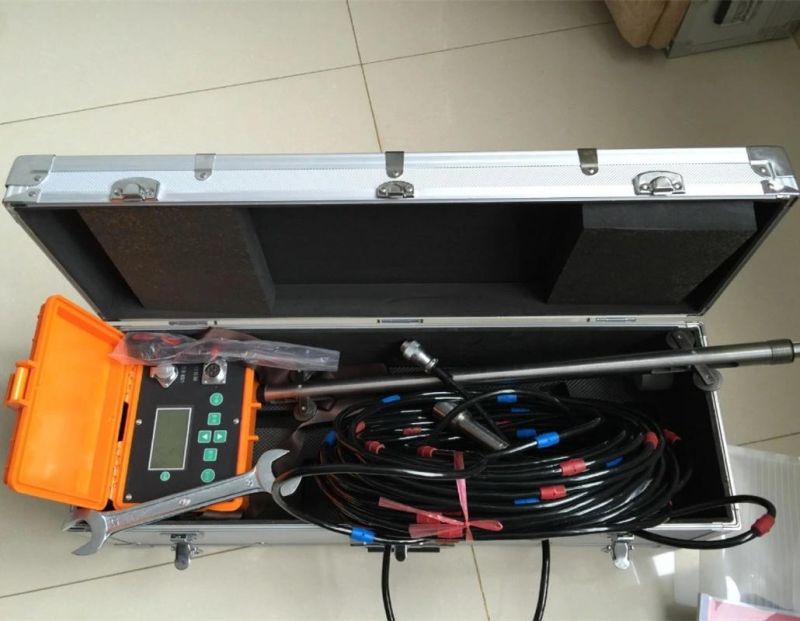

Packing picture
