• Model NO.：RTT-01
• Stations：4

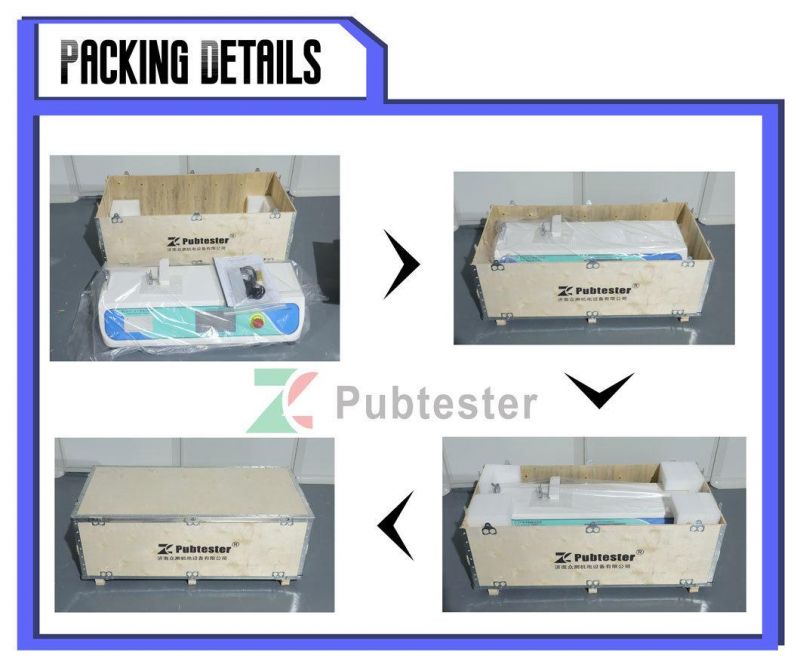

• Transport Package：Veneer Case
• Trademark：Pubtester
• Origin：Jinan, Shandong
• Production Capacity：30 Sets,Quarter

Basic Info.

Model NO. RTT-01 Stations 4 Transport Package Veneer Case Trademark Pubtester Origin Jinan, Shandong Production Capacity 30 Sets/Quarter

Product Description

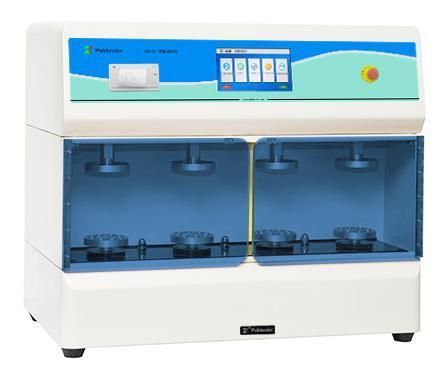

RTT-01 Films Foils Gelbo Flex Durability Resistance Testing Instruments
RTT-01 Composite Coating Films Foils Gelbo Flex Durability Resistance Testing Instruments  is professionally applicable to the determination of flex durability of flexible films, composite films and coating films. The instrument can simulate the kneading and creasing behaviors of films happened during production, processing and transportation. The flex durability can be obtained by measuring the changes in number of pinholes or barrier properties after test, which can provide quantitative basis for package design and practical usage.



Product Features
High-end Configuration

• Six standard test modes including condition A, B, C, D, E and F.
• High-frequency data acquisition system, up to 500 times/s to ensure accurate data collection
• High-performance servo motors with closed-loop feedback to ensure full functionality of testing
• Four stations improve the testing efficiency
• Equipped with micro-printer that can print number of experiments, mode and other information

Intelligence and Efficiency

• 7" HD colorful touch screen operation, display test parameters in real time
• With automatic data storage, statistical analysis, power-down automatic memory and other functions, convenient for users to manage data
• Storage up to 5000 test records
• Equipped with an emergency stop button to ensure test safety
• Provides professional customization services to meet the individual needs of users in fixtures, software, etc.
• Free software upgrade service lifetime

Test Principle
Mount the clamping tool on the test bench to fix the sample, set a test number and rotation parameters, and realize sample pretreatment work by rotating, compressing, and stretching the sample.

Applications

Basic Application	Extended application
Flexible Films, Composite Films and Coating Films including plastic films, sheets and composite films e.g. composite films, aluminized films, aluminum plastic composite films, nylon films and coating films for food or drug packages	Test the flex durability of paper materials

Technical Specifications

Specifications	RTT-01
Flex Frequency	45 cpm
Test Mode	Condition A (2700 cycles), Condition B (900 cycles),  Condition C (270 cycles), Condition D (20 cycles),  Condition E (20 cycles partial flex), Condition F (Set freely)
Tensile & Pressing Force	300N, optional with customization
Torque	2Nm
Specimen Thickness	≤3mm(customization)
Flex Angle	440° / 400°
Horizontal Stroke	155 mm / 80 mm
Stations	4
Specimen Size	280 mm x 200 mm
Dimension	800 mm (L) × 450mm (W) × 680mm (H)
Power Supply	220VAC±10% 50Hz
Net Weight	90 kg

Standards
ASTM F392, YY/T0681.12

Configurations
Standard configuration: Instrument, Adjustable Positioning Ring, Micro-printer, Sampler

Optional configuration: Stainless steel clamping tool 64(91mm~114mm)




FAQ

Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.

Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.

How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.

Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.

How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.

How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
