Gdbc-901 High Quality Single Phase and Three Phase Transformer Turns Ratio TTR Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Description：Three Phase Transformer Turns Ratio TTR Tester
- Application：Test Turns Ratio, Group Vector of Transformer
- Function：Test Turns Ratio and Group Vector of Single or Thr
- Standard：IEC76-1, IEC60044
- Ratio Measurement Range：1-10000
- Group Measurement：1-12
Base Info
- Model NO.：GDBC-901
- Measurement Parameters：Turns Ratio, Phase Angle, Polarity, Vector Group
- Display：Digital Display
- Warraty：1 Year
- Power Supply：220V, 50Hz
- Transport Package：Packed in Veneer Case
- Specification：400mm*350mm*200 mm, 7kg
- Trademark：GOLD
- Origin：China, Chongqing
- HS Code：9031809090
- Production Capacity：1000 Sets , Month
Description
No.
Item Name
GDBC-901 High Quality Single Phase and Three Phase Transformer Turns Ratio TTR Tester
1
Ratio measurement range
1-10000
2
Group measurement
1-12
3
Phase measurement error
1 degree
4
Ratio measurement error
1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
5
Test voltage
0~80V, frequency 50Hz
6
Power supply
AC220V ± 10%, 50Hz/60Hz
7
Environment temperature
0-50°C
8
Humidity
≤85%RH
9
Size
400mm*350mm*200 mm
10
Weight
7kg
Functions:
- Turns ratio testing: single phase power transformer, three phase power transformer, CT, PT;
- Phase angle testing:single phase power transformer, three phase power transformer, CT,PT;
- Polarity testing: single phase power transformer, three phase power transformer, CT, PT;
- Vector group testing: three phase power transformer;

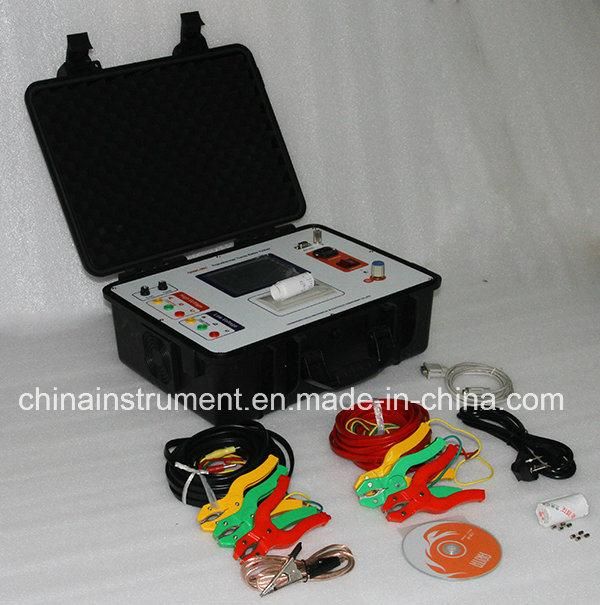

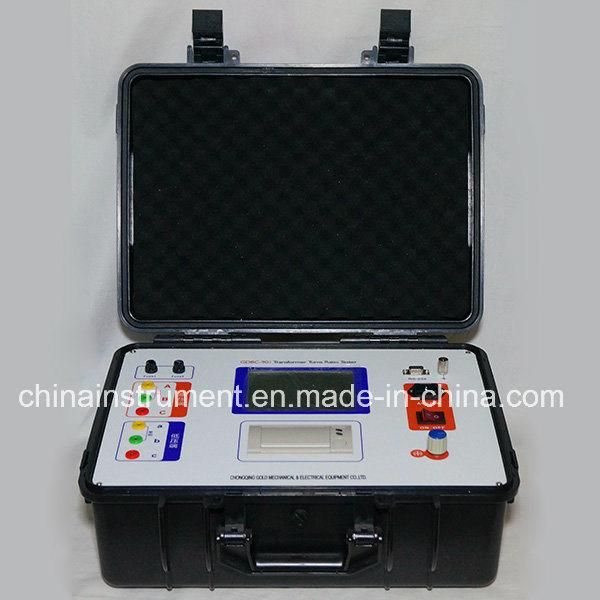

Real Pictures:
