Ce Certificate Low Pressure High Low Temperature Climate Chamber

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Type：Low Pressure High Low Temperature Climate Chambe
  • Maxcapacity：N,a
  • Accuracy Grade：0.5
  • Load Way：N,a
  • Loading Method：N,a
  • Display：Digital

Base Info

  • Model NO.：YCTL-225
  • Control：Controller
  • Weight：500-1000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：N,a
  • Inner Chamber Size(Wxhxd Cm)：50X70X60
  • External Chamber Size(Wxhxd Cm)：121X175X135
  • Temperature Range：-65~+150degrees
  • Temp. Fluctuation：+,-0.5degrees Under Room Pressure
  • Temp. Uniformity：+,-2degrees Under Room Pressure
  • Pressure Range：Room Pressure to 0.5kpa
  • Inner Chamber Material：304 Stainless Steel Plate
  • External Chamber Material：Cold Rolled Sheet with Powder Coated
  • Insulation Material：PU Fiberglass Wool
  • Cooling Way：Water Cooling
  • Transport Package：Plywood Case
  • Specification：CE, TUV, SGS Certificate
  • Trademark：Yuanyao
  • Origin：China
  • HS Code：9032100000
  • Production Capacity：5sets,Month

Description

Basic Info.

Model NO. YCTL-225 Control Controller Weight 500-1000Kg Power Source AC380V Oil Cylinder Position N/a Inner Chamber Size(Wxhxd Cm) 50X70X60 External Chamber Size(Wxhxd Cm) 121X175X135 Temperature Range -65~+150degrees Temp. Fluctuation +/-0.5degrees Under Room Pressure Temp. Uniformity +/-2degrees Under Room Pressure Pressure Range Room Pressure to 0.5kpa Inner Chamber Material 304 Stainless Steel Plate External Chamber Material Cold Rolled Sheet with Powder Coated Insulation Material PU Fiberglass Wool Cooling Way Water Cooling Transport Package Plywood Case Specification CE, TUV, SGS Certificate Trademark Yuanyao Origin China HS Code 9032100000 Production Capacity 5sets/Month

Product Description

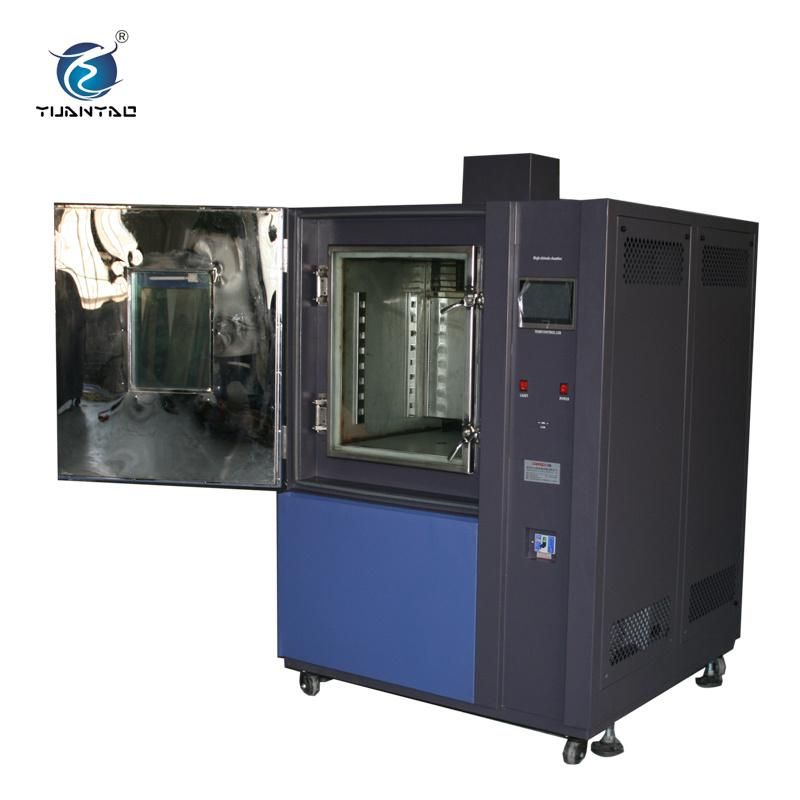

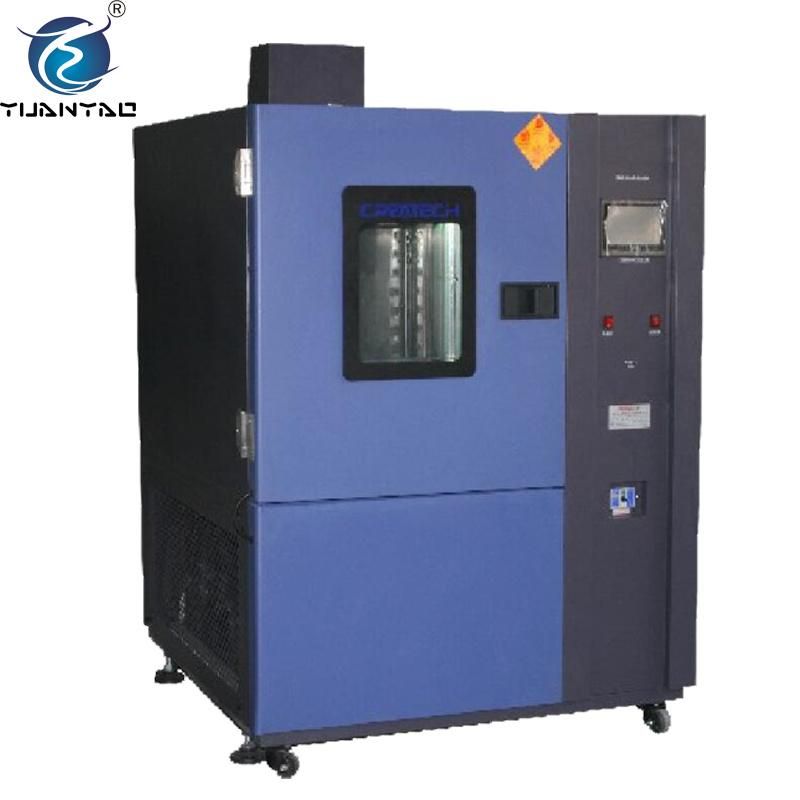

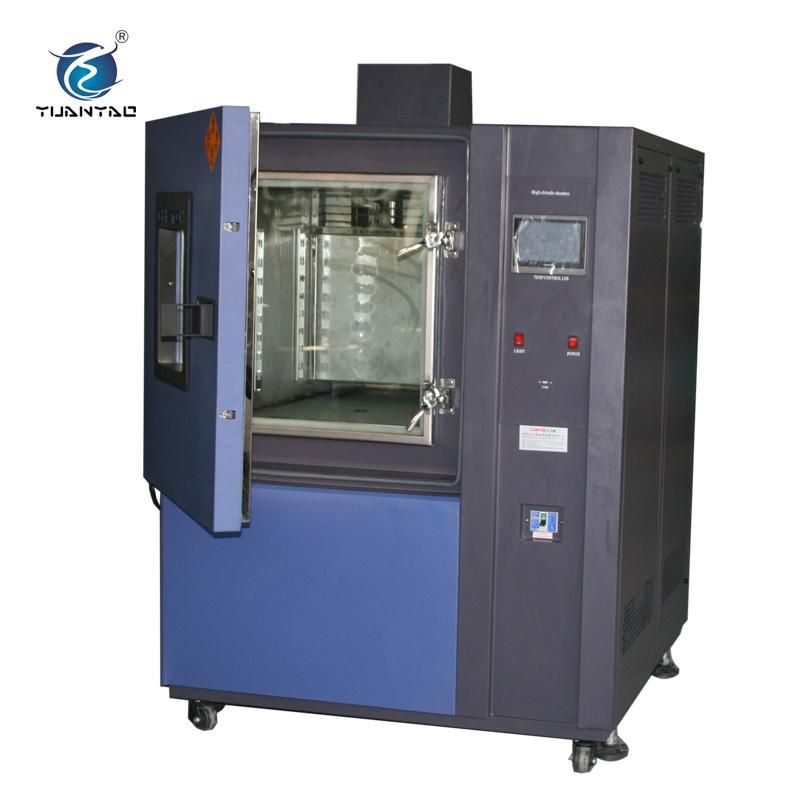

CE Certificate Low Pressure high low temperature Climate Chamber

CE Certificate Low Pressure high low temperature Climate Chamber simulates the high low temperature and low pressure condition to test the temperature and low pressure resistance performace of the products, it is widely applied to aviation, aerospace,electronics, national defense,scientific research and other industries.
Ce Certificate Low Pressure High Low Temperature Climate Chamber
Ce Certificate Low Pressure High Low Temperature Climate Chamber
Ce Certificate Low Pressure High Low Temperature Climate Chamber

Features:

1. True color touch screen PLC controller, English language display, easy operation. 32groupsx800segments/group, 999 cycles program capacity.

2. Can choose fix and program control mode.

3. Seperately do the temperature, humidity and low pressure test; do the temperature low pressure test at the same time.

4. Customization and overseas service are available.

5. One year free parts warranty.



Ce Certificate Low Pressure High Low Temperature Climate Chamber
Ce Certificate Low Pressure High Low Temperature Climate Chamber
Till now, we received 7 patent certificates for our climate test equipment, now we are applying for the patent certificates for our new research and develop test equipment in 2018.

Ce Certificate Low Pressure High Low Temperature Climate Chamber
Ce Certificate Low Pressure High Low Temperature Climate Chamber

Thanks a lot for your attention! Any questions, please feel free to contact me, I will be here to reply you within 24hours during the working time.
