• Model NO.：HZJB-D
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Usage：Single Phase Relay Tester
• Work Power：110V-400V Adjustable
• Power Frequency：50±1Hz
• Phase：0--360 °
• Power Capacity：300va , Phase
• Line Voltage Range：0--250V
• Power：AC220V ± 10% 50Hz 10A
• Environment Humidity：≤90%Rh
• Work Temperature：-10°c~ 50°c
• Certificate Standard：ISO Ce
• Transport Package：Standard Carton, Box
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Baoding, Hebei
• HS Code：9030820000
• Production Capacity：500set ,Year

Basic Info.

Model NO. HZJB-D Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Usage Single Phase Relay Tester Work Power 110V-400V Adjustable Power Frequency 50±1Hz Phase 0--360 ° Power Capacity 300va / Phase Line Voltage Range 0--250V Power AC220V ± 10% 50Hz 10A Environment Humidity ≤90%Rh Work Temperature -10°c~ 50°c Certificate Standard ISO Ce Transport Package Standard Carton/ Box Specification CE/ISO/IEC Trademark HuaZheng Origin Baoding, Hebei HS Code 9030820000 Production Capacity 500set /Year

Product Description

Full Function Automatic Single Phase Relay Protection Test System Price


I.General

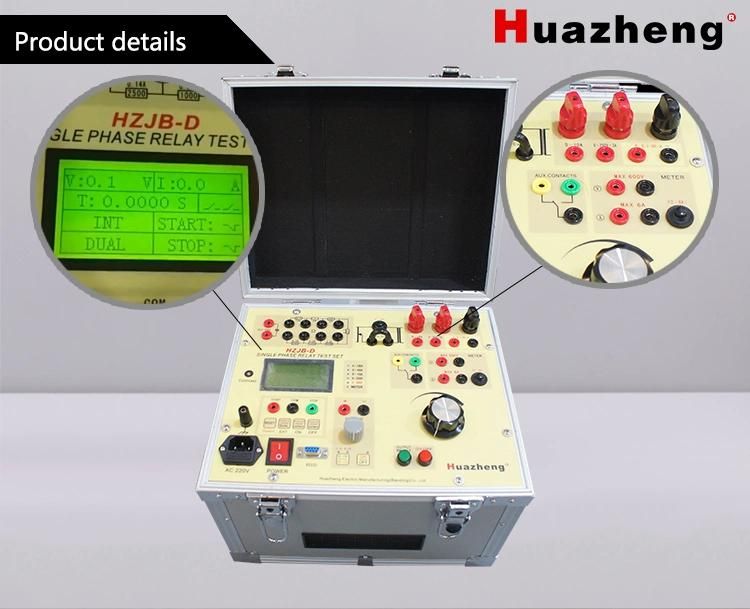

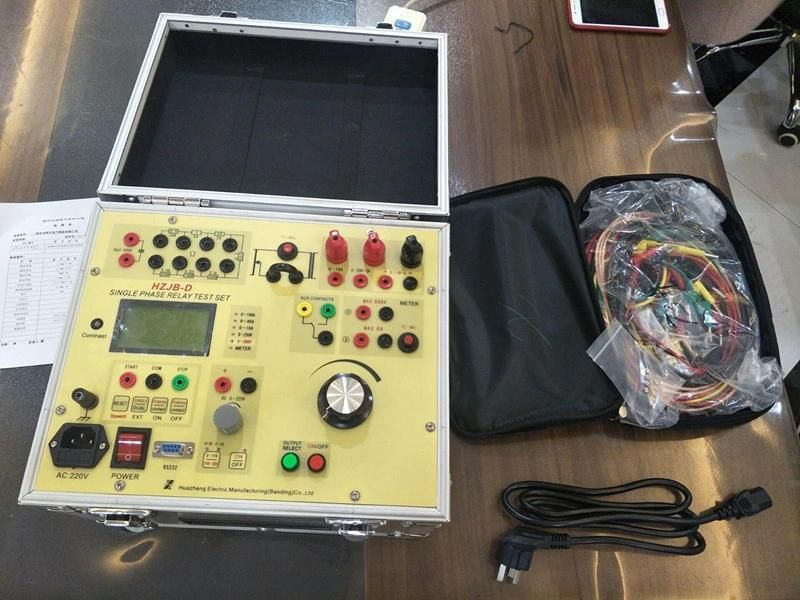

   HZJB-D  SINGLE PHASE RELAY TEST is a portable field testing equipment with excellent performance; Elegance and polished appearance with aluminum alloy chassis and PC panel, within the ARM chip control, LCD screen display voltage and current output stopwatch, it could output a full isolation way for adjustable AC/DC voltage, and AC/DC current and a way for adjustable DC voltage; the output loop with double overload protection with large output capacity ,small volume, light weight, high reliability ,It Suitable for field calibration and test for various relay.

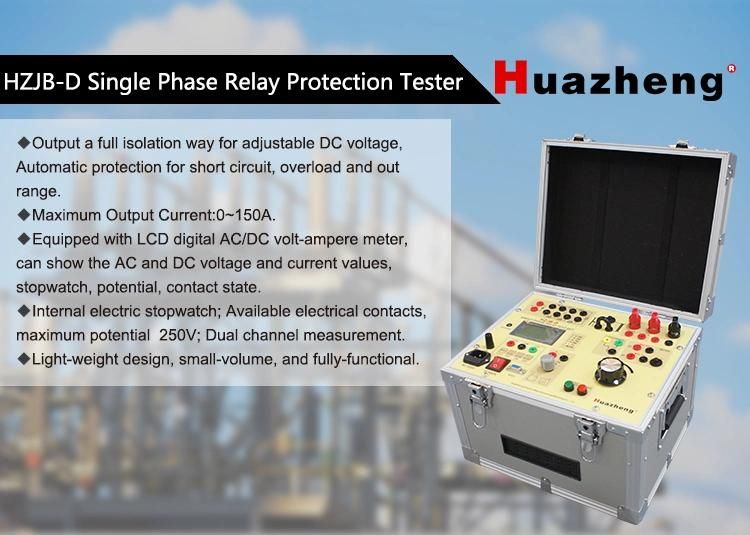

II.Main Features
   2.1  Output a full isolation way for adjustable DC voltage, Automatic protection for short circuit, overload and out range.
   2.2   Maximum Output Current:0~150A.
   2.3   Equipped with LCD digital AC/DC volt-ampere meter, can show the AC and DC voltage and current values, stopwatch, potential, contact state.
   2.4  Internal electric stopwatch; Available electrical contacts, maximum potential  250V; Dual channel measurement.
   2.5   Light-weight design, small-volume, and fully-functional.


III.Main Technical Parameter And Functions
   3.1   Rated input power: AC:220V±10%·1000VA·50Hz
   3.2   AC Output


Range(A)	No-load Voltage  (Minimum)V	Full-load Voltage ( (Minimum)V	Full-load Current  (Maximum)A
0~10	90	80	10
0~40	25	22	40
0~100	10	8	100
0~250(AC)	250	240	3
0~300(DC)	320	250	3

    3.3  DC auxiliary Output

Range V	Voltage V	Maximum current A
0~110	120	0.5
110~220	220	0.5

       3.4  Stopwatch:
       Range: 0.0000~999999S,Resolution: 0.1mS,
       Accuracy: ±5
       With electrical contacts and potential input, the maximum input voltage: DC 250V
    3.5  Ammeter:
        Range: internal: 0.000~150.0A;
        External: 0.000~6.000A(AC or DC)
        Accuracy: 0.5%, Measurement methods: AC: True RMS value DC: Average
    3.6  Voltmeter:
        Range: 0.0~600.0V(AC OR DC);
        Accuracy: 0.5%, Measurement methods: AC: True RMS value DC: Average
       3.7   Resistors and Capacitors:
      Resistance: 0.5 ohm to 2.5k ohm
          Capacitor: 10uF, maximum voltage AC 450V
     3.8  Division / combination of auxiliary contacts
          Maximum current: 1A, Maximum voltage: AC250V or DC120V
     3.9  Using Environment: Temperature: -10 ~ 40 ºC,
           Relative humidity must less than 80%
     3.10  Volume: 320mm×260mm×230mm
     3.11   Weight: 16kg





IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

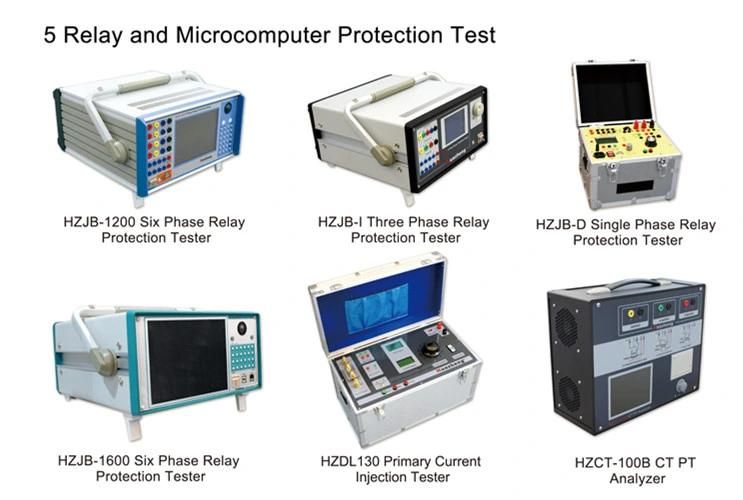

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


V. Our Services
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.
