Universal Auto Testing Multifunctional DSP Control 0 - 120V 30A AC Output High Performance Digital Microcomputer Six Phase Relay Protection Tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Current channel number：Standard six phase
- AC current output range：30A,phase or 180A (six phase parallel)
- DC current output range：10A DC ,phase
- AC voltage output range：120V AC ,phase
Base Info
- Model NO.：ZX-1200
- DC voltage output range：160V DC , phase
- DC current output：0- +-10A , phase
- DC voltage output：0- +-160V output precision 0.2 grade
- Time measurment range：0.1ms -9999s, measurement accuracy:less than 0.1ms
- Output power of phase voltage/ line：70VA , 140VA
- AC voltage output：Harmonic order:0-20
- AC maximum output power of phase current：450VA
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
AC current output>
The virtual value of each phase output when six phase current output :0~30A, output precision :0.1 grade
The virtual value of each phase output when three phase current output: 0~60A
The virtual value of six phase parallel current output : 0~180A
The allowed virtual value when the phase current work long time:10A
The maximum output power of phase current :450VA
The maximum output power when six phase parallel current output :1000VA
The allowed working time when six phase parallel current maximum output :10s
Frequency range(fundamental wave) : 0~1000Hz
Harmonic order :0~20
DC current output
Current output :0~±10A / phase ,output precision :0.2 grade
The maximum load volatage output :20V
AC voltage output
The virtual value of phase voltage output :0~120V, output precision :0.1 grade
The virtual value of line voltage output :0~240V
The output power of phase voltage/ line voltage :80VA / 100VA
Frequency range(fundamental wave) :0~1000Hz
Harmonic order:0~20
DC voltage output
The output amplitude of phase voltage :0~±160V , output precision:0.2 grade
The output amplitude of line voltage :0~±320V
The output power of phase voltage/ line voltage:70VA / 140VA
Input and output
8 channels input
Free contact : 1~20mA, 24V
Electric potential contacts :"0":0 ~ +6V; "1":+11 V ~ +250 V
4 channels output : DC:220 V/0.2 A;AC:220 V/0.5 A
Time measurment range:
0.1ms ~ 9999s, measurement accuracy <0.1ms

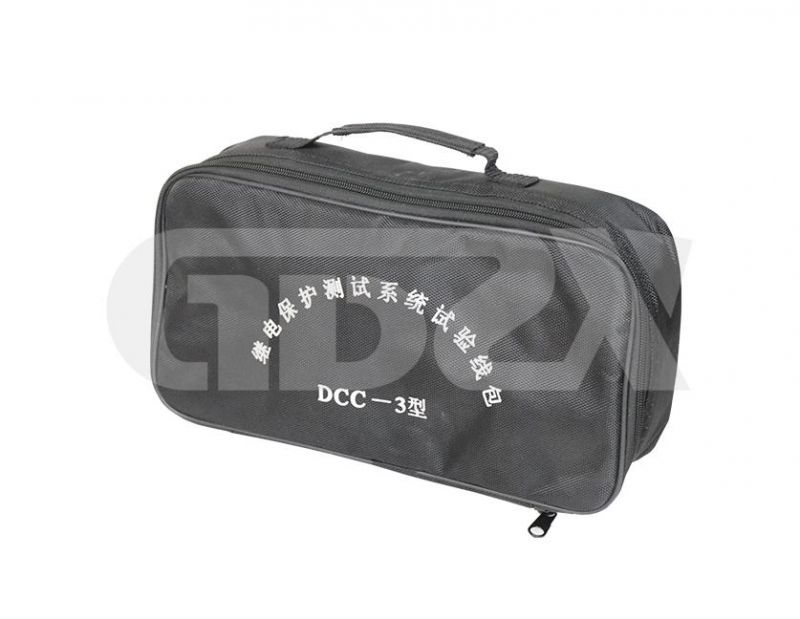

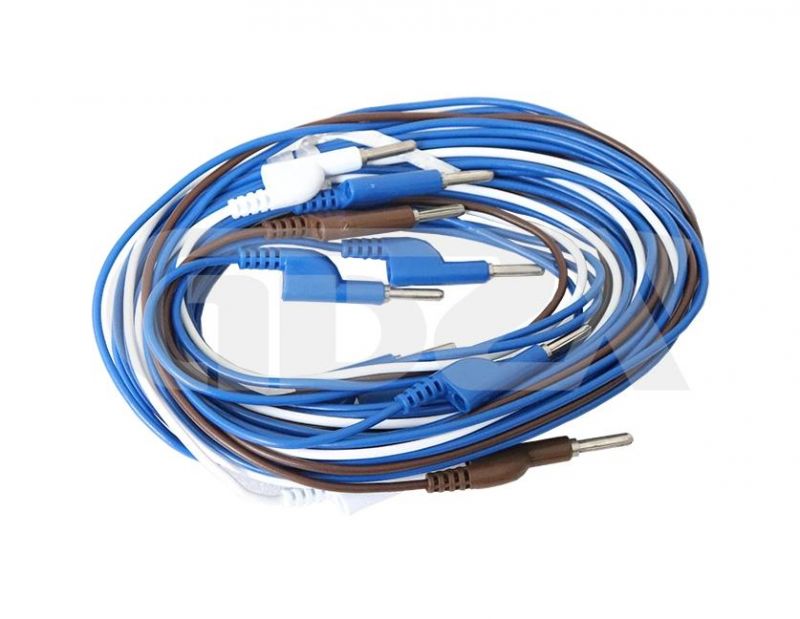

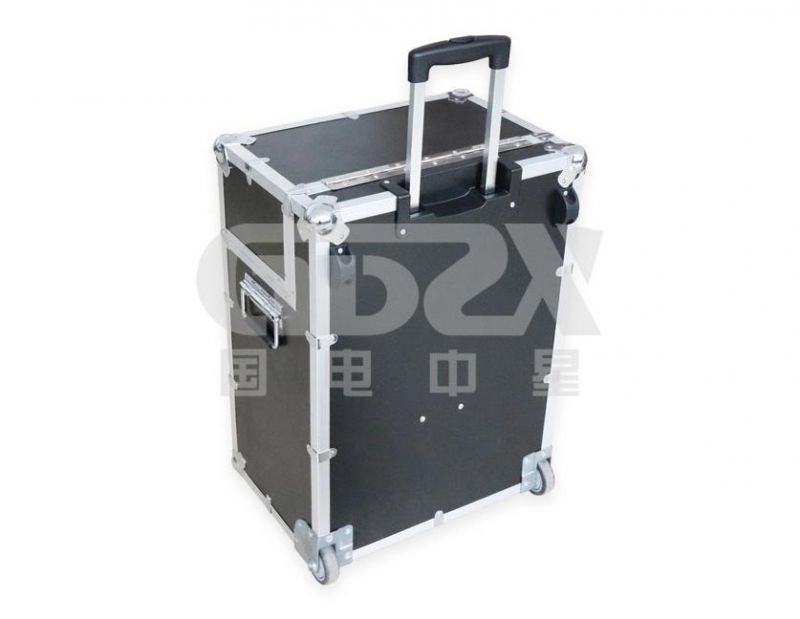

Product pictures
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.
Test cases
