Air Purifier Filter Element Counting Efficiency, Resistance Testing Machine/Testing Equipment
Scince Purge Technology (Qingdao) Co., Ltd.- Function：Testing
- Display：Computer Screen
- Usage：Filter Element Testing
- Environment：Room Temperature
- Warranty：With Warranty
- Power Source：AC 380V, 50Hz
Base Info
- Model NO.：SC-7099
- Weight：〉10Kg
- Output Air Volume：150~1500m3,H
- Aerosol：Dehs
- Resistance Range：0~500PA
- Filter Efficiency Range：45%~99.995%@0.3μm
- Demension：3350*750*1850mm
- Transport Package：Wooden Package
- Specification：3350*750*1850mm
- Trademark：Scince
- Origin：Suzhou, China
- Production Capacity：50sets,Year
Description
Technical Data SheetItem Parameter Output air volume 150-1500m3 / h Maximum size of the filter can be tested 750*610*150mm Aerosol DEHS Filter efficiency range 45%~99.995%@0.3μm Sampling flow ≥2.83L/min Resistance range 0~500Pa Resistance accuracy ±2% Dimension 3350*750*1850mm

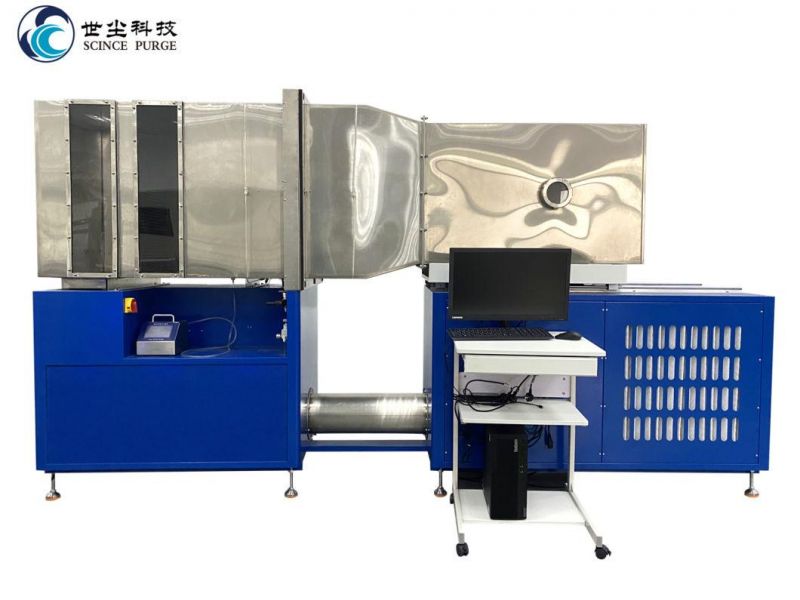

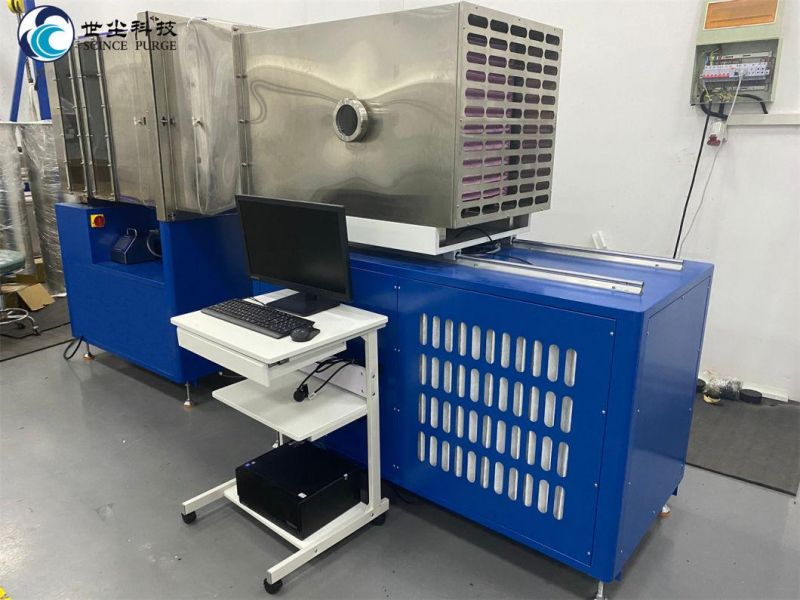

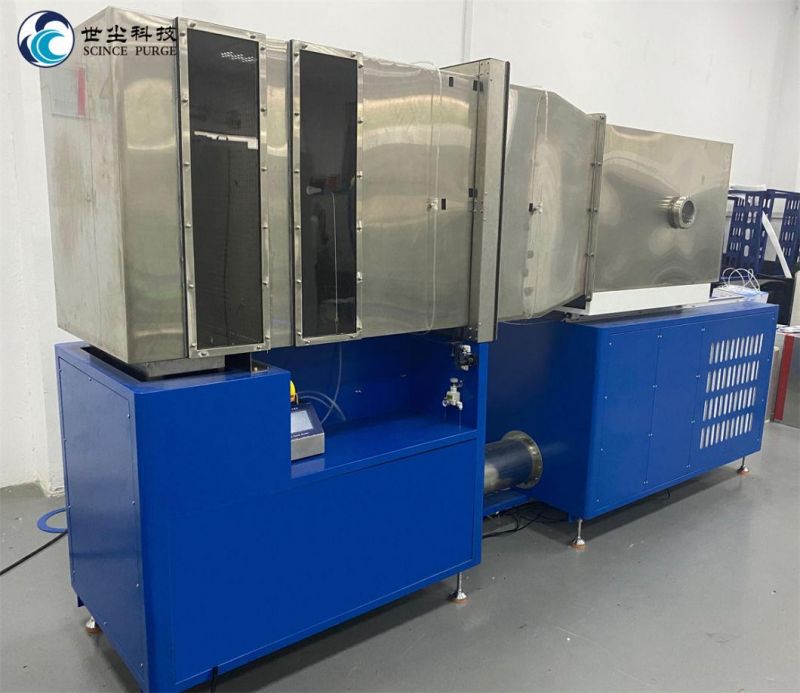

Product Pictures
Features
The filter to be tested can be conveniently installed in the test fixture. Test aerosol and clean air are evenly mixed and passed through the tested filter. Resistance and filter efficiency are obtained by detecting the pressure difference and concentration difference downstream and upstream of the filter. Filters are graded according to their average efficiency.
Adopted the main control board and upper computer software system to ensure the stability of the control system.
The advanced on-line monitoring software system is adopted. Install the filter, input the filter parameters, set the test flow and adjust the aerosol concentration, then the test automatically completes the following process: self purification, particle number judgment, and test. The test results are reflected on the computer LCD display, which is clear at a glance. If resistance data under different air volume are needed, please set the test air volume in the software (set by the percentage of rated air volume).
The start and stop of the aerosol generator, the conversion of the upstream and downstream laser particle counter, and inflation and sealing all are automatically controlled by the corresponding solenoid valves.
The test system uses positive pressure, sets the air volume through software, and uses the frequency converter to realize automatic control of air volume.
Functions such as test report printing, label printing, and database management are available.
The system uses a bypass diluter with large dilution ratio and reliability.
1. Are you a trading company or manufacturer?
we are a professional tester manufacturer with 25 years of industry experience. Our factory is located in Suzhou, where is only 100 kilometers far away from Shanghai Hongqiao International Airport. It is pretty convenient for you to make a visit.
2. What is the L/T?
The lead time will be between15 and 30 days after deposit payment. If there is stock for the instrument you want, timely shipment will be arranged within 7 days.
3. What is your terms of payment?
Based on our sales policy, T/T 30% as deposit should be paid before order, and 70% balance payment should be completed before shipment. We will provide you with real photos or video of the instrument before balance payment.
4. What is your terms of delivery?
Available in EXW, FOB, CFR and CIF.
5. What is your packing for the tester?
Generally, packed with wooden case. We can do some adjustments in terms of your special requirement.
6. Can the mask tester be certified?
There is certification requirements for mask only, and there has no relevant certification requirements for mask tester, but a calibration report is required. we will provide a calibration report with a randomizer for our mask test instrument. The calibration report is valid for one year. After then, we can also support the corresponding calibration service for small fee.
7. Do you have after-sales service?
We can provide on-site installation and commissioning service for you, but you need to bear the travel expense of our engineer. The warranty period will be one year. Free replacement parts will be supplied during this period. Only accessories and corresponding shipping charges will be charged out of the warranty period.
8. Is there an English interface for your instrument?
Our instrument can be customized on the base of your demand. For example, both mask tester and filter material tester can be displayed in Chinese, English and Korean interfaces. The instruction manual is available in both Chinese and English.
