• Model NO.：YG(B)401GC
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Motor Drive
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• No. of Stations：9
• Diameter of Movement：40mm
• Range：1-99999
• Pressure：490cn,590cn,780cn
• Sample Size：112.8mm
• Height of Brush：2-12mm
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. YG(B)401GC Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Motor Drive Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under No. of Stations 9 Diameter of Movement 40mm Range 1-99999 Pressure 490cn/590cn/780cn Sample Size 112.8mm Height of Brush 2-12mm Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

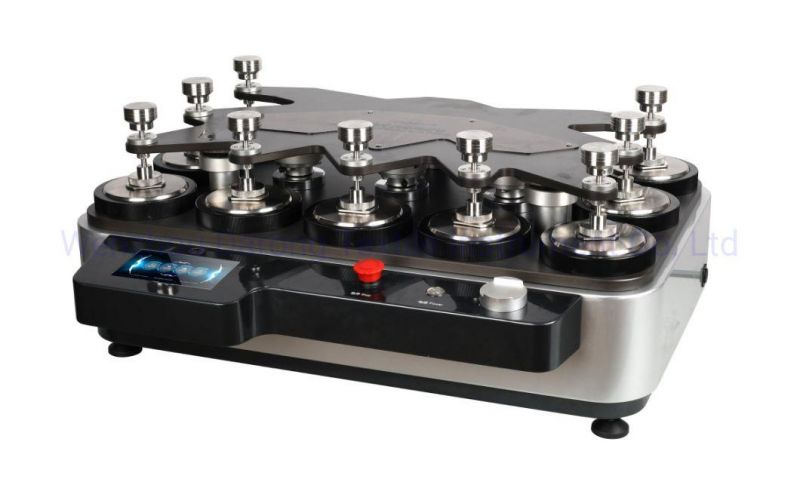

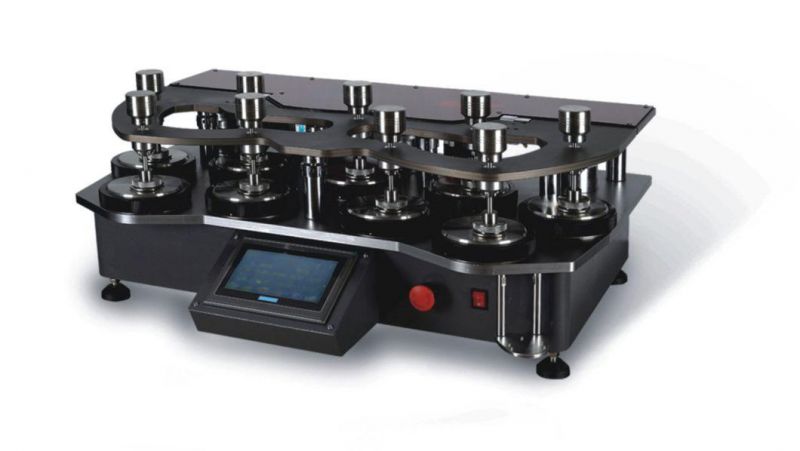

YG(B)401GC   Fabric Martindale pilling and abrasion testing equipment
[Scope of application]
Used for the performance test of wear resistance, wear resistance and appearance change (pilling) of textiles and film materials (Martindale method).

Standard:
GB/T21196 (National standard drafting unit), FZ/T20020, GB/T4802.2, GB/T13775, ASTM D4966, ASTM D4970, ASTM D3886, ISO12945.2, ISO12947, JIS L1096, IWSTM196/TM112, M&S, etc
[ Instrument characteristics ]
1. Three test modes, plus and minus two counting modes.
2, no turning guide design, loading without moving.
3, PLC modular control, 7-inch color touch screen, Bilingual menu operation.
[ Technical parameters ]
1. Number of working stations: 4
2, counting range :(0 ~ 999999) times
3, the maximum range: (60.5±0.5)mm (24±0.5)mm
4, pressurized material quality:
A. Clothing sample weight: (397±2)g
B. Furniture decoration sample weight :(597±2)g
C. Stainless steel discs :(260±1)g
5. Effective friction diameter of grinding block:
Type A 198g (3kPa) friction head φ (28.8-0.084)mm
Type B 155G (1.52N) friction head φ (90-0.10)mm
6, clamping device and grinding platform relative movement speed :(50±0.5)r/mi(20-70r/min adjustable)
7, sample pressure hammer quality :(2385±10)g
8, overall size :(613×530×286)mm (L×W×H)
9, power supply: AC220V±10% 50Hz 200W
10, weight :71kg





Technical parameters]

Number of stations	Counting range	Test modes
4	1-999999	3
