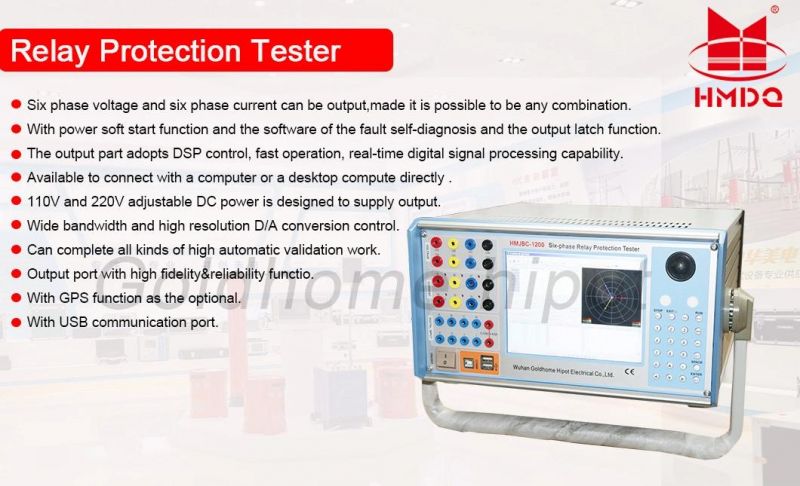

Protective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test Set

Wuhan Goldhome Hipot Electrical Co., Ltd.
  • After-sales Service：Life Time Support
  • Warranty：1 Year or Extended
  • Type：Protection Relay Test Set
  • Accuracy Grade：0.5
  • Display：Digital
  • Control：Computer Control

Base Info

  • Model NO.：HM1200
  • Weight：49kgs
  • Power Source：AC220V
  • Time Measuring Range：0.1ms - 9999s
  • Accuracy of Measurement：<0.1ms
  • Phase Voltage / Line Phase Output Power：70va , 140va
  • Harmonic Time：1-20
  • Frequency Range (Fundamental)：20-1000Hz
  • Output Precision：0.5 Degree
  • Product Name：Production Relay Tester
  • Work Temperature：-10°c~ 50°c
  • Certificate：CE,ISO
  • Calibration Report：Factory Report or The Third Party Report
  • Model Name：Relay Tester
  • Model Type：Hmjbc-702
  • AC Output Current：30A Per Phase
  • DC Output Current：10A Per Phase
  • AC Output Voltage：120V AC Per Phase
  • Transport Package：Wooden Box with Foam Inside
  • Specification：customize
  • Trademark：HMDQ
  • Origin：Hubei, China(Mainland)
  • HS Code：9030820000
  • Production Capacity：200sets,Month

Description

TypeTotal Current channelsSix phasesTotal Voltage channels Six phasesAC Output current 30A per phase or 180A (six phase parallel)DC Output current10A DC per phaseAC output voltage 120V AC per phaseDC output voltage 160V DC per phase

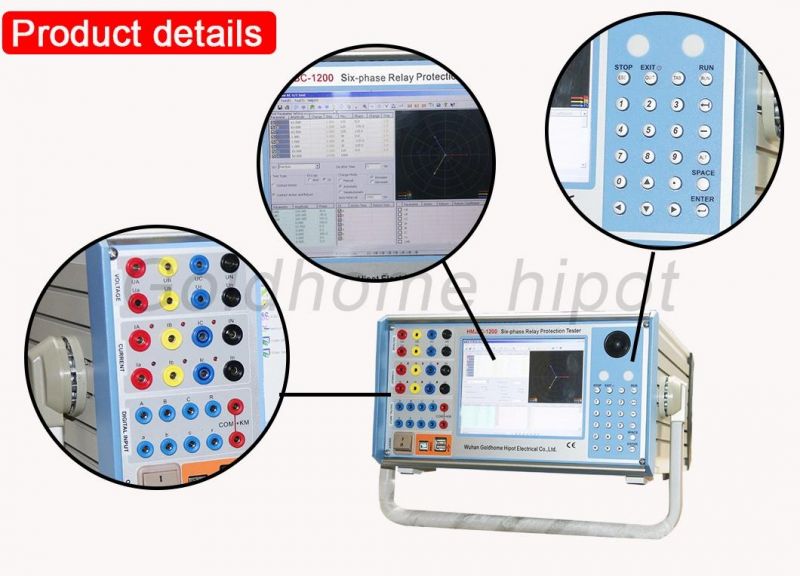

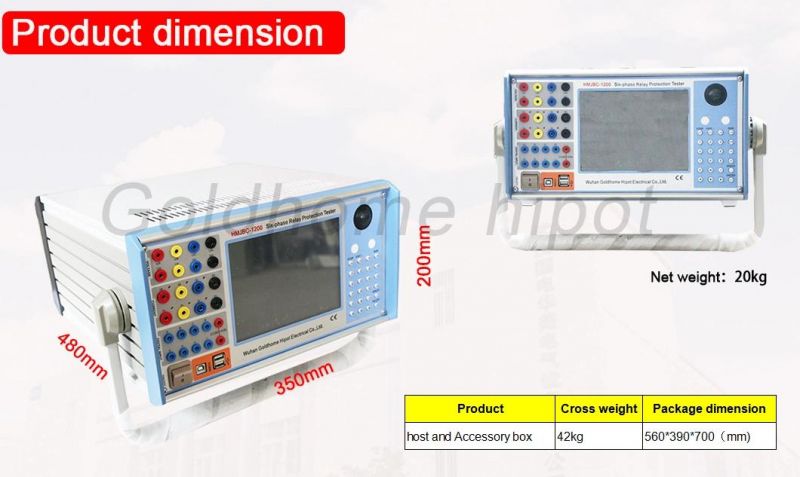

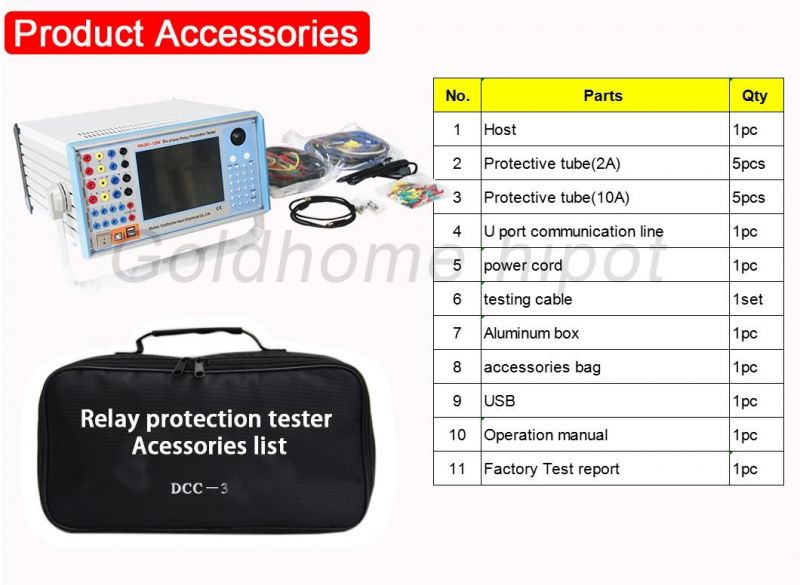

III.Detail photos

Protective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test SetProtective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test SetProtective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test SetProtective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test SetMain parameter:

AC current output
Output current per phase under 6-phase output:  0~30A   output precision   0.1 grade
Output current per phase under 3-phase output:  0~60A
Output current when 6-phase in parallel :         0~180A
Allowed phase current for long time working:       10A
The maximum output power of phase current       450VA
The maximum output power when 6-phase in parallel:  1000VA
The allowed working time when 6-phase in parallel:    10s
Frequency range(fundamental wave):              0~1000Hz
Harmonic times:                          0~20

DC current output
Current output:    0~±10A / phase       output precision   0.2 grade
The maximum output load voltage:    20V

AC voltage output
Phase voltage output:    0~120V    output precision   0.1 grade
Line voltage output:   0~240V
Output power of phase voltage/ line voltage :  80VA / 100VA
Frequency range(fundamental wave):    0~1000Hz
Harmonic times:         0~20

DC voltage output
Phase voltage output:  0~±160V   output precision  0.2 grade
Line voltage output:      0~±320V
The output power of phase voltage/ line voltage  70VA / 140VA

Input and output
8 channels input
Idle contact :    1~20mA,24V
Electric potential contacts:   "0":0 ~ +6V; "1":+11 V ~ +250 V
4 pairs switch output:   DC:220 V/0.2 A;AC:220 V/0.5 A

Time measurement range
0.1ms ~ 9999s ,    measurement accuracy <0.1ms

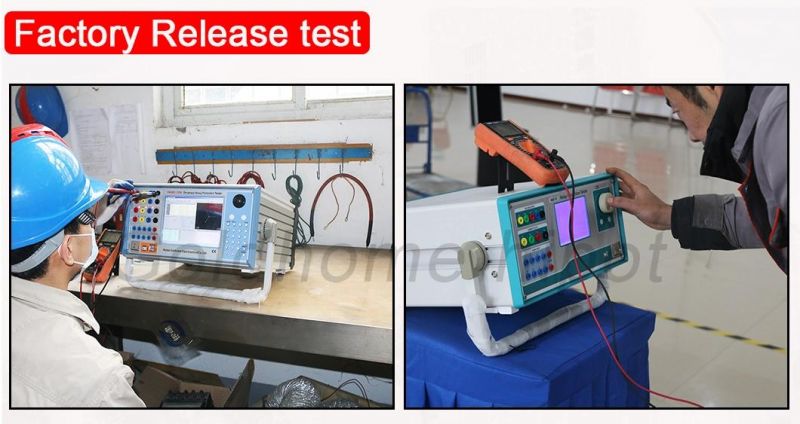

IV.Factory Release test

Protective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test Set

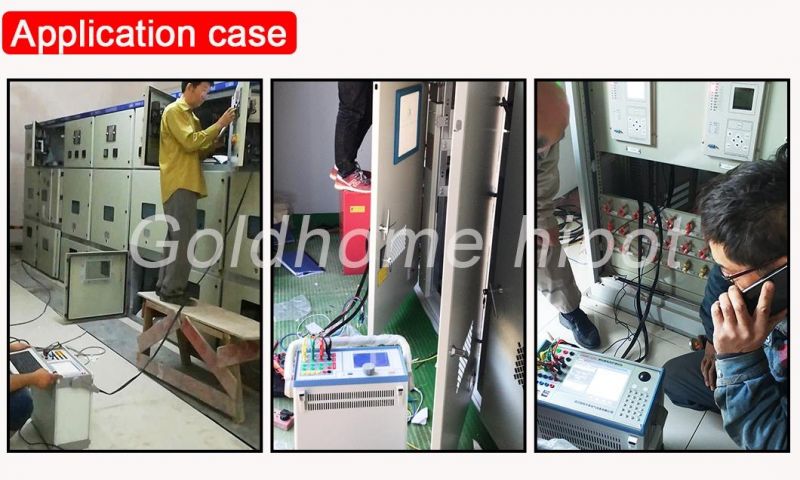

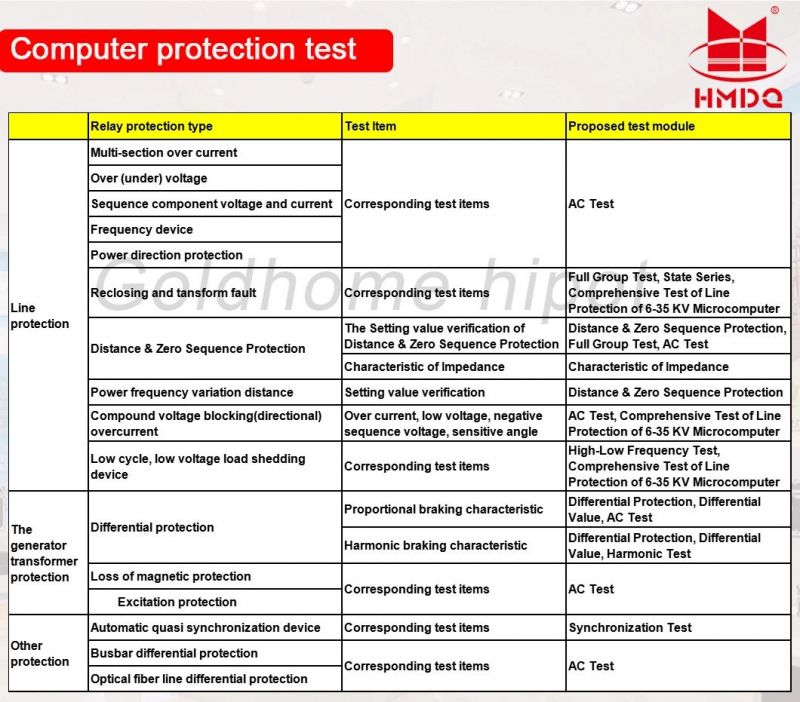

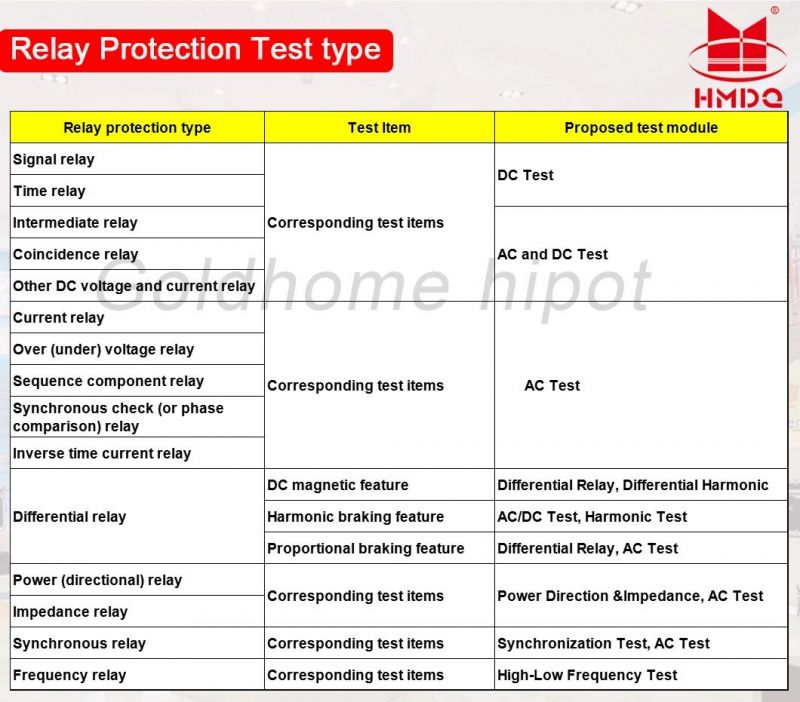

V.Application case


Protective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test Set
Protective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test SetProtective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test Set

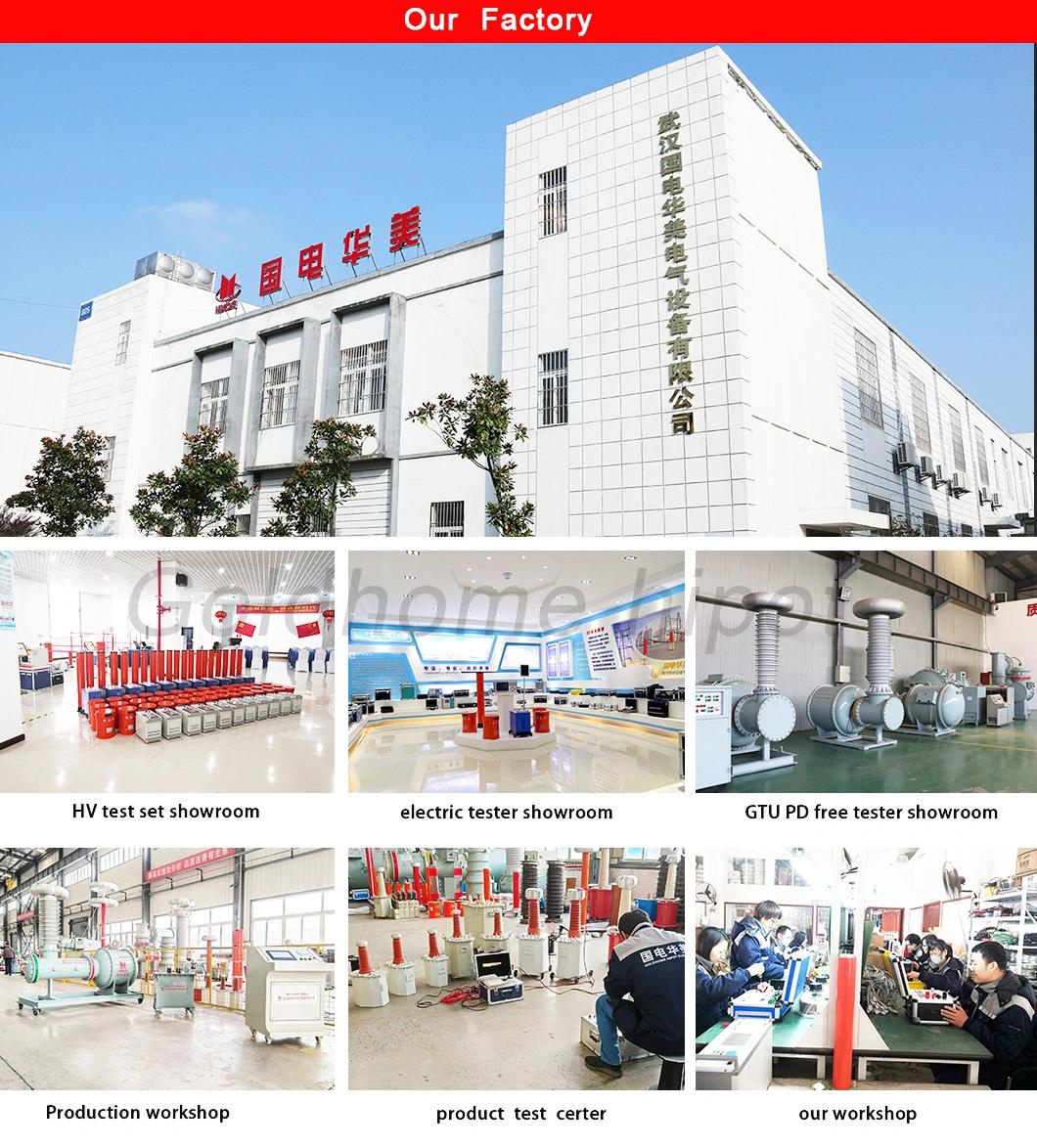

VI.Company profile

Wuhan Goldhome Hipot Electrical Co.,ltd is an ISO certified factory specially in  manufacture electric test equipment with more than 20 years experience , located in Wuhan city , China .
Main products included PD free test set, AC/DC hipot tester, transformer tester, CT/PT analyzer , Circuit breaker tester, relay test set, transformer oil tester ,etc .
Warmly welcome to visit Goldhome Hipot factory !

Protective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test SetProtective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test SetProtective Relay Test Set 6 Phase Electrical Relay Protection Tester High Accuracy High Quality Secondary Current Injection Relay Test Set
