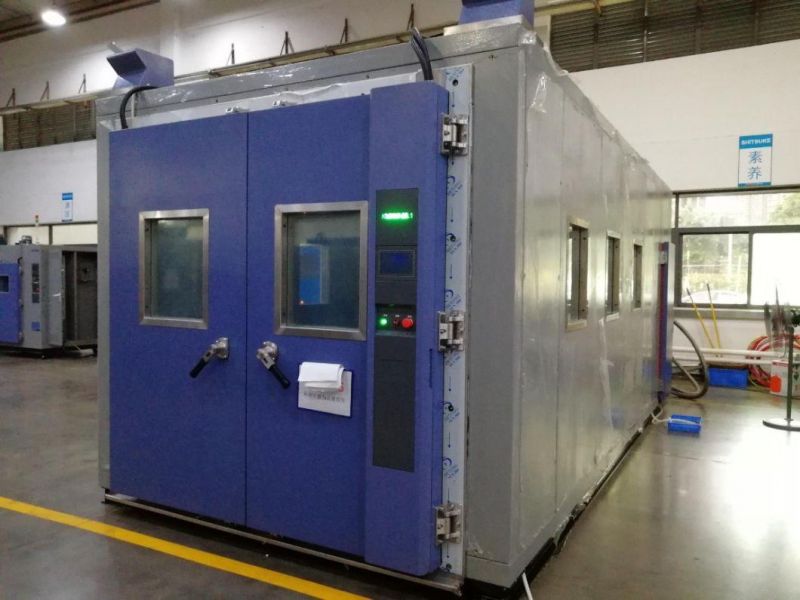

Komeg Manufacturer Walk in Constant Temperature and Humidity Chambers
Guangdong Komeg Industrial Co., Ltd.- After-sales Service：24 Hours on Line Services
- Power Supply：380V 50Hz
- Certification：CE, ISO
- Warranty：1 Year
- Temp. Range：-40oc~+150oc or -104of~+302of
- Humidity Range：20-98%R.H.
Base Info
- Model NO.：KMHW-8L
- Temp. Constancy：+,-0.5oc
- Humidity Constancy：+,-2.5%R.H.
- Humidity Uniformity：+,-3.0%R.H.
- Heat up Time：-40 Oc~+100 Oc Within 45mins
- Pull Down Time：+20 Oc~-40 Oc Within 60mins
- Inner Size：W2000*H2000*D2000mm
- Transport Package：Strong Plywood Case, Meet International Standards
- Specification：Standard and Customized
- Trademark：KOMEG
- Origin：Dongguan, China
- HS Code：90321000
- Production Capacity：1000 Sets Per Yesr
Description
Environmental Temperature and Humidity ChamberSecifications ( at +20°C room temp. Or+25°C water temp with empty load) Model KMH-L series 150L 225L 408L 800L 1000L Interior sizel W(mm) 600 700 700 1000 1000 H(mm) 600 700 750 1000 1000 D(mm) 460 480 800 800 1000 Exterior size W(mm) 880 980 980 1280 1280 H(mm) 1730 1890 1940 2160 2160 D(mm) 1400 1460 1740 1750 1950 Weight(KG) 250 300 420 530 600 Temp. range -40 °C ~ +150°C Humidity Range 20 ~ 98&R.H. Temp. constancy ±0.5ºC Humidity constancy ±2.5%R.H Humidity uniformity ±3.0 % R.H ±5.0 % R.H Heat up time -40°C ~+100°C , within 45 min Pull down time +20°C ~ -40°C , within 60 min Equipment Power 7.5 7.5 8.5 14.5 14.5 Ambient Temp. 5ºC ~+35ºC Standard accessories Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m Safety device (standard) No fuse breaker, over pressure over heat and over current protection for compressor,
Over temp. protect, over load protect of blower, dry heat protection Control System Balanced Temperature & Humidity Control System Refrigeration system Air Cooled ( Water Cooled Type is option ) Hermetic compressor,Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) Controller Panel:7-inch LCD Touch panel, Chinese or English display selectable Operation model :Program or fix point running Memory capacity :120programs,1200steps, All repeat 999 cycles, part repeat 99 cycles Interior material Stainless Steel Plate ( SUS 304 ) Exterior material Baked Painting Steel Or Stainless steel(SUS304) Insulation material Rigid polyurethane Foam and Glass Fiber Wool System Balanced & Humidity Control System Wiring method AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires Note:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
How to maintain the environmental test chamber ?
When you are in an environmental chamber testing laboratory, You may need the environmental chamber insulation or environmental chamber testing services. The below are some guidance which may helpful for you when you are processing the environmental chambers repair work. Try to find local environmental test chamber manufacturers and inquiry their benchtop and walk in environmental chamber price is a good idea !
1. Water pipes in waterways are easy to block and leak. Please check regularly whether there is water leakage or water plugging. The stored water in the humidifier in the small environmental chamber shall be replaced once a month to ensure the water quality is clean and the flow is smooth.
2. When the test sample is taken out after the time is up, the environmental chamber for battery testing must be shut down and the staff must wear dry, electricity-proof and moisture-resistant gloves.
3. When opening and closing doors or taking test objects from the environmental chambers, Do not let the test samples touch the glue edge on the door, in case the glue edge is damaged and the service life is shortened.
4. The ground around environmental test chamber shall keep clean at all times to avoid accidents and performance degradation caused by dust inhalation into the unit.
5. The freezing system is the core of the environmental chamber. Please inspect all copper pipes once a year to see if there is any leakage of Freon. Please inform the environmental chamber factory in casa there any oil leakage of horn joints and welding joints.
