• Model NO.：HM5006
• Test Current Range：10μa-1A
• Resolution：Maximum 0.001PF, 4 Valid Figures.
• Maximum Output Current：200mA
• Relative Humidity：<90%
• External Hv：3PF-1.5μf,10kv 60PF-30μf,0
• Tgδ Range：Unlimited, 0.001% Resolution
• Certificate：CE
• Calibration Report：Factory Report or The Third Party Report
• Capacitance Range：Internal Hv: 3PF~60000PF,10kv 60PF~1μf,0.5kv

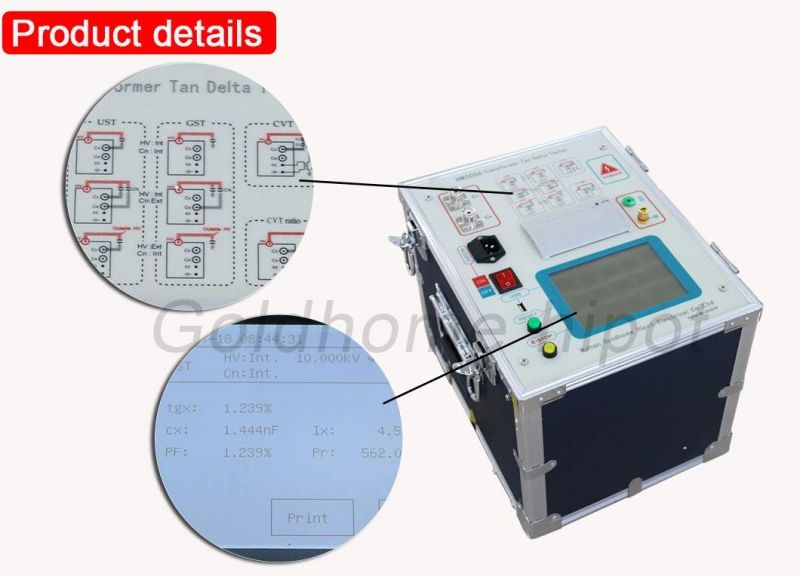

• Test Method：Gst, Ust, CVT Ratio
• Model Input：220V or 120V
• Frequency Input：50Hz or 60Hz
• The Max Output：10kv, 12kv, 15kv or Higher
• Function：Can Be Customzied
• Funtion 2：for Transformer Tan Delat Test and CVT Ratio Test
• Transport Package：Wooden Box with Foam Inside

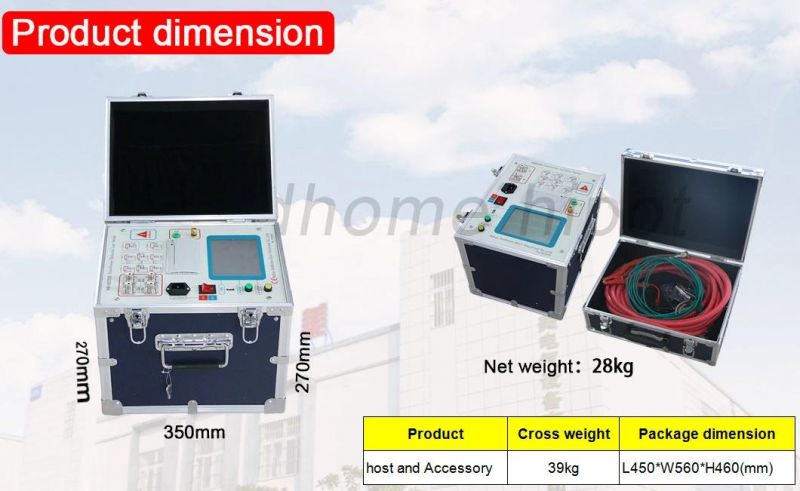

• Specification：460mm*360mm*350mm.
• Trademark：HMDQ
• Origin：Hubei, China(Mainland)
• HS Code：9030899090
• Production Capacity：500sets,Month

Basic Info.

Model NO. HM5006 Test Current Range 10μa-1A Resolution Maximum 0.001PF, 4 Valid Figures. Maximum Output Current 200mA Relative Humidity <90% External Hv 3PF-1.5μf/10kv 60PF-30μf/0 Tgδ Range Unlimited, 0.001% Resolution Certificate CE Calibration Report Factory Report or The Third Party Report Capacitance Range Internal Hv: 3PF~60000PF/10kv 60PF~1μf/0.5kv Test Method Gst, Ust, CVT Ratio Model Input 220V or 120V Frequency Input 50Hz or 60Hz The Max Output 10kv, 12kv, 15kv or Higher Function Can Be Customzied Funtion 2 for Transformer Tan Delat Test and CVT Ratio Test Transport Package Wooden Box with Foam Inside Specification 460mm*360mm*350mm. Trademark HMDQ Origin Hubei, China(Mainland) HS Code 9030899090 Production Capacity 500sets/Month

Product Description

transformer loss tangent tan delta test set 10kv 12kv automatic tan delta and capacitance anti-interference dielectric loss dissipation power factor tester

I. Summary

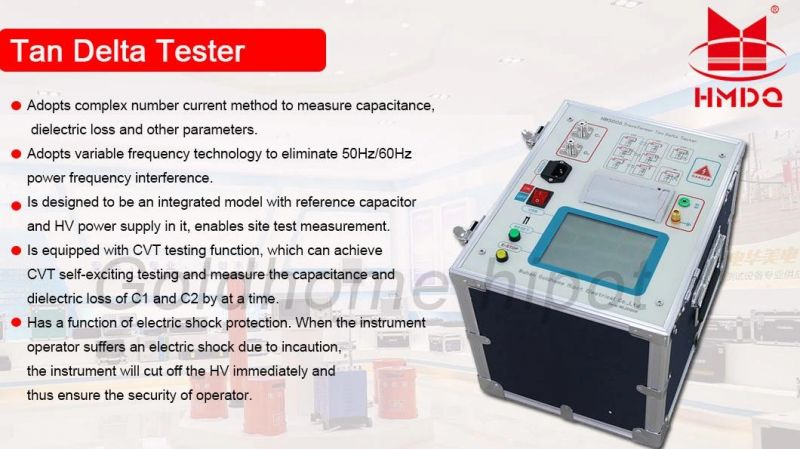

Tan Delta Test Set is a basic method in insulation test and effectively detect damp, degradation and partial defect of insulation of electrical equipment. This method is widely used in electric manufacturing, electric equipment installation, connection and preventive test. Measurement on dielectric loss of transformer, mutual inductor, reactor, capacitor, bushing and arrester is the most basic method to test their insulation property.**** fully-automatic anti-interference dielectric loss tester breaks through the traditional bridge testing method and adopts variable frequency power technology, single chip and modernized electrical technology to carry out automatic frequency shift, analog-to-digital conversion and data computing. It features strong anti-interference capacity, high test speed, high precision, automatic digitization and easy operation. It adopts high-power switching power supply, which outputs 45Hz and 55Hz pure sine wave and automatically increase the voltage to a maximum value 10 KV. It can filter 50Hz interference automatically, and Tan Delta Test Set is applicable to the site test of substation and other places with large electromagnetic interference. This methods is extensively applied in dielectric loss measurement of transformer, mutual inductor, reactor, bushing, capacitor, arrester and others equipments in power industry.

II. Technical indicators
Accuracy: Cx: ±(reading×1%+1pF)
tgδ: ±(reading×1%+0.00040)
Anti-interference: Variable frequency anti-interference, the above accuracy can be reached under 200% interference.
Capacitance range: Internal HV: 3pF~60000pF/10kV 60pF~1μF/0.5kV
 External HV: 3pF~1.5μF/10kV 60pF~30μF/0.5kV
 Resolution: Maximum 0.001pF, 4 valid figures.
tgδ range:unlimited, 0.001% resolution, automatic identification for capacitance, inductance and resistance of three tested articles.
Test current range: 10μA~1A
Internal HV: Set voltage range: 0.5~10kV
Maximum output current: 200mA
 Buck-bust method: continuous stepless regulation
 Test frequency: 45, 50, 55 single frequency 45/55Hz automatic dual variable frequency
Frequency accuracy: ±0.01Hz
External HV: In case of UST, maximum test current is 1A,and power frequency or variable frequency is 40-70Hz
In case of GST, maximum test current is 10kV/1A,
and power frequency or variable frequency is 40-70Hz
CVT self-exciting low voltage output: Output voltage 3~50V,
output current 3~30A

V. Company profile photos

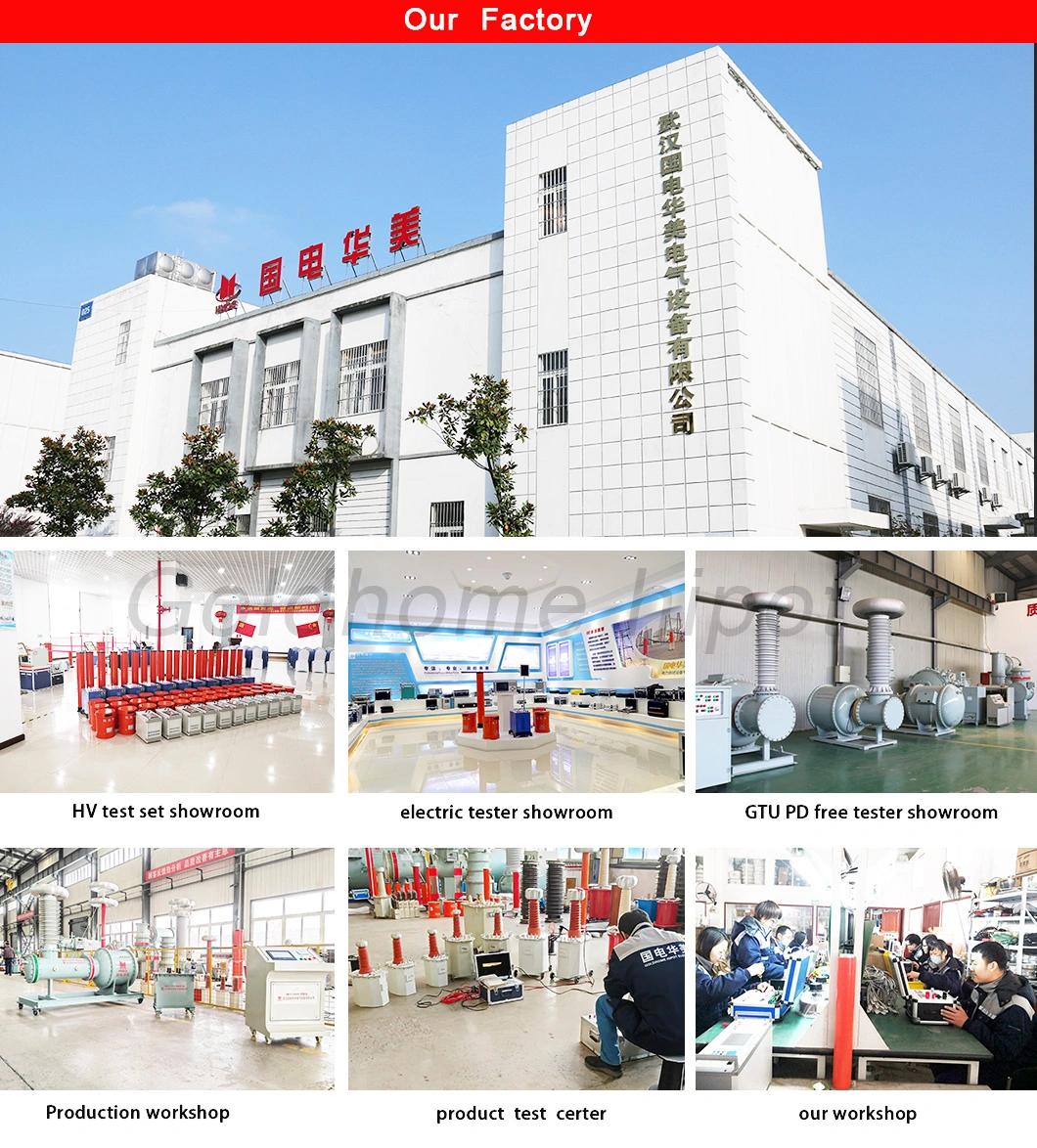

Wuhan Goldhome Hipot Electrical Co.,ltd is an ISO certified factory specially in  manufacture electric test equipment with more than 20 years experience , located in Wuhan city , China .
Main products included PD free test set, AC/DC hipot tester, transformer tester, CT/PT analyzer , Circuit breaker tester, relay test set, transformer oil tester ,etc .
Warmly welcome to visit Goldhome Hipot factory !
