Generator Motor Rotor, Paper Mill Roller, Crusher Rotor Balancing Machine
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Warranty:1 Year
- Max Diameter of Workpiece:2100mm
Base Info
- Model NO.:PHQ-1000H,2000H,3000H,5000H
- Mass Scope of Workpiece:5000kg
- Type:Balancing Machine
- Maxcapacity:>1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:>2000Kg
- Power Source:AC380V
- Oil Cylinder Position:Top
- Item:Balancing Machine for Water Pump Blower Grinding W
- Length:3400 mm
- Width:1000 mm
- Height:1900 mm
- Gross Weight:2500 Kg
- Brand Name:Jp
- Place of Origin:Shanghai, China
- Power Supply:380V or Custom
- Delivery Time:Within 20-30 Days
- Packaging Details:Packed in Fumigated Wood Box
- Transport Package:Packed Fumigated Wood Box
- Specification:ISO. CE. SGS
- Trademark:JP
- Origin:Shanghai China
- HS Code:90311000
- Production Capacity:100 Sets,Month
- Package size per unit product:2400.00cm * 2100.00cm * 1630.00cm
- Gross weight per unit product:1800.000kg
Description
Basic Info.
Model NO. PHQ-1000H/2000H/3000H/5000H Mass Scope of Workpiece 5000kg Type Balancing Machine Maxcapacity >1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight >2000Kg Power Source AC380V Oil Cylinder Position Top Item Balancing Machine for Water Pump Blower Grinding W Length 3400 mm Width 1000 mm Height 1900 mm Gross Weight 2500 Kg Brand Name Jp Place of Origin Shanghai, China Power Supply 380V or Custom Delivery Time Within 20-30 Days Packaging Details Packed in Fumigated Wood Box Transport Package Packed Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 100 Sets/MonthPackaging & Delivery
Package size per unit product 2400.00cm * 2100.00cm * 1630.00cm Gross weight per unit product 1800.000kgProduct Description

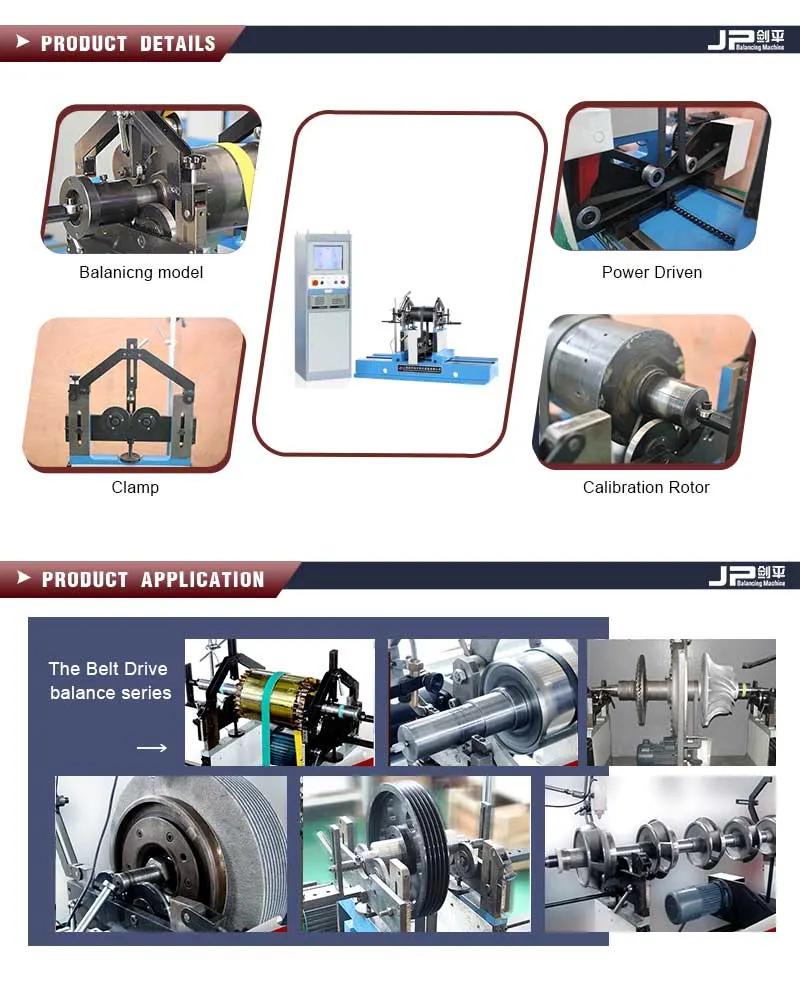

1) Specially designed brackets transmit mechanical force with low vibration damping
2) Durable and reliable sensor possesses good linearity
3) Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4) Belt-driving offers higher precision and easier operation
5) Advanced electrical measuring system and friendly man-machine interface
6) Modular design offers a wide range of application
Applicable to large workpieces
Range of Application:
It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily.
The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System.
Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

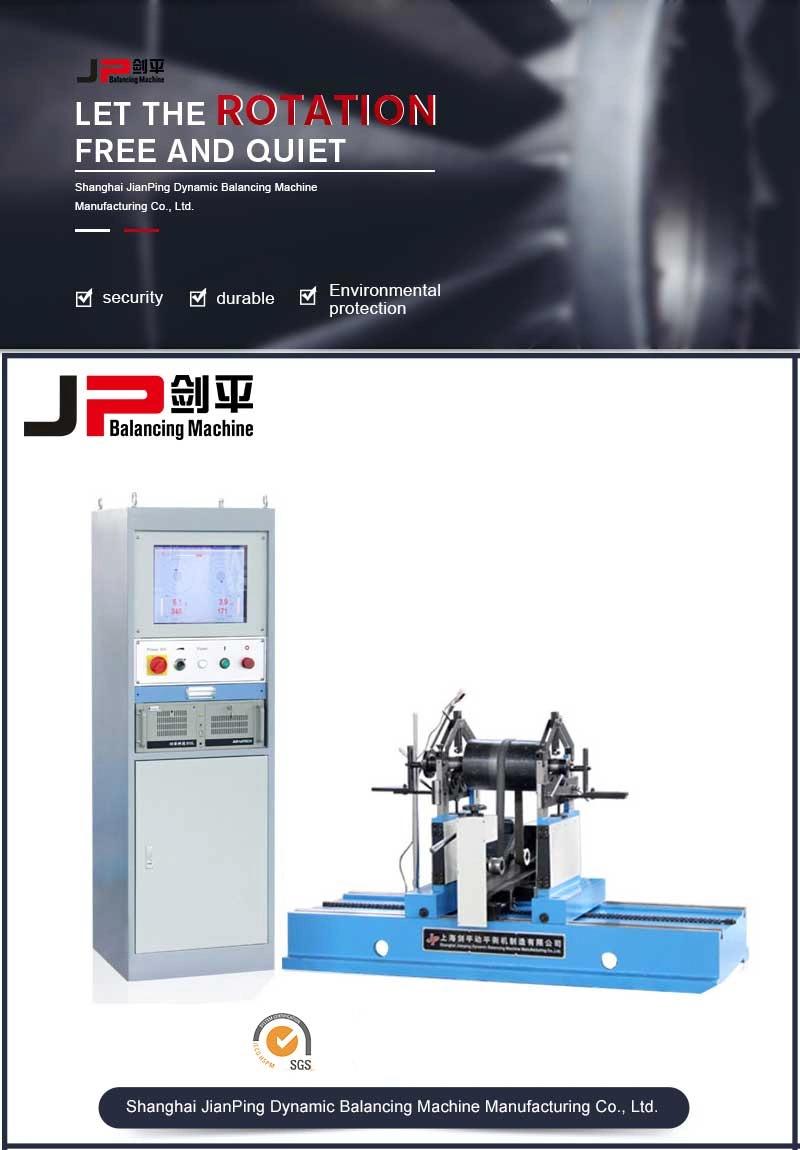

Motor Rotor Belt Drive Balancing Machine (PHQ-1000/2000/3000/5000H) is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency
Production Parameters:
Technical data at a glance | PHQ-1000 | PHQ-2000 | PHQ-3000 | PHQ-5000 |
Max Mass of Workpiece (kg) | 1000 | 2000 | 3000 | 5000 |
Max Diameter of Workpiece (mm) | 1600 | 1800 | 2000 | 2400 |
Distance between Two Support Bearings (mm) | 160~1500 | 180~1700 | 500~2200 | 500~2200 |
Journal Diameter Scope of Workpiece (mm) | 35~200 | 40~240 | 40~380 | 40~380 |
Diameter Scope of Driving Belt (mm) | 40~400 | 40~600 | 50~1000 | 50~1000 |
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) | 1148,1554+Stepless speed regulation | 590,1375+Stepless speed regulation | 795,1853+Stepless speed regulation | 795,1853+Stepless speed regulation |
Motor Power (kw) | 4 2 (Frequency conversion) | 5.5 (Frequency conversion) | 7.5 (Frequency conversion) | 15 (Frequency conversion) |
Min Achievable Residual Unbalance Amount (emar) | Min 0.5g.mm/kg | Min 0.5g. mm/kg | Min 0.5g.mm/kg | Min 0.5g. mm/kg |
After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
