• Model NO.：HMZ-2B
• Test Method：Fully Automatic
• Sample Loading Way：Capillary Tube Method
• Temperature Range：Ambient ~400ºC
• Rampe Rate：Stepless Setting at 0.1ºC~20ºC,Min
• Ramp Rate Error：Less Than 5%
• Display：7" HD Colour Touch Screen
• Transport Package：Corrugated Carton
• Specification：345X245X215mm
• Trademark：HUAZHI, OEM
• Origin：China
• HS Code：9025800000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. HMZ-2B Test Method Fully Automatic Sample Loading Way Capillary Tube Method Temperature Range Ambient ~400ºC Rampe Rate Stepless Setting at 0.1ºC~20ºC/Min Ramp Rate Error Less Than 5% Display 7" HD Colour Touch Screen Transport Package Corrugated Carton Specification 345X245X215mm Trademark HUAZHI, OEM Origin China HS Code 9025800000 Production Capacity 1000PCS/Month

Product Description

According to the definition in physical chemistry, the melting point of a substance is the temperature at which the material changes from a solid to a liquid state. In organic chemistry, melting point determination is not only the basic approach to determine the nature of material, but also an important method to obtain the purity of a substance. Therefore, melting point apparatus is widely used in the chemical industry and the medical research, and it's a must-have instrument in the manufacturing of medicine, spices, dyes and other organic crystal substances.

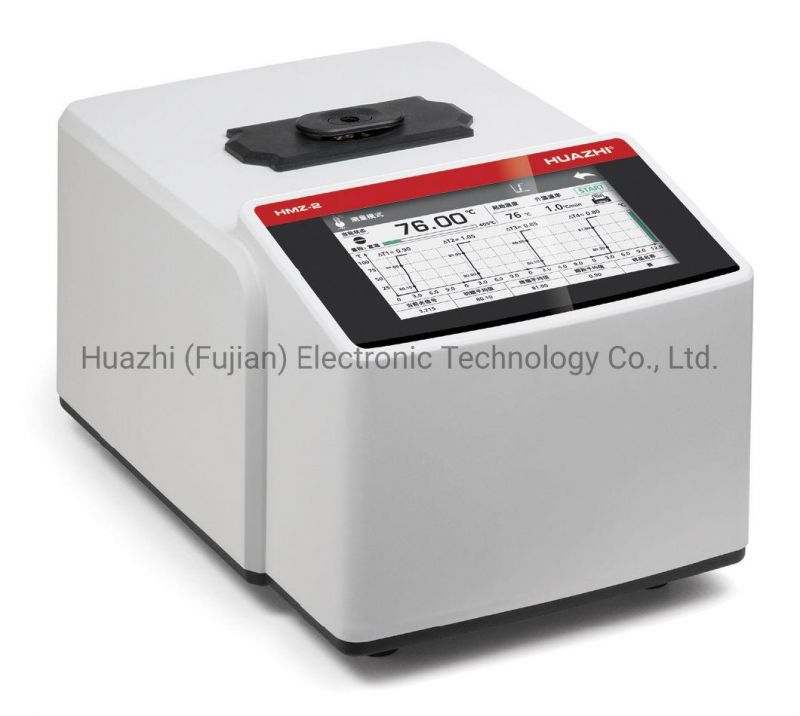

The HMZ series melting point apparatus employs our paticular temperature-control technology to acheive "fast", "accurate" and "stable" control of oven temperature. The large 7'0 inch color touch screen is informative and the touch screen makes the operation easier. Main functions includes melting point determination, temperature calibration, data storage and user management.


Model	HMZ-2B
Grade	0.2grade
Test Method	Fully automatic
Sample Loading Way	Capillary Tube Method
Temperature range	Ambient ~400ºC
Minimum Temperature Resolution	0.01ºC
Rampe Rate	Stepless setting at 0.1ºC~20ºC/min
Ramp Rate Error	≤5%
Accuracy	±0.2ºC(<200ºC) ±0.4ºC(≥200ºC)
Reproducibility	0.1ºC(ramp rate 0.2ºC/min) 0.2ºC(ramp rate 1ºC/min)
Heating/Cooling time	≤7mins/9mins
Number of Capillaries	4
Capillary dimensions	Φ1.4mm outside dia., Φ1.0mm inside dia., 90mm lengths.
Fill height	3mm~5mm
Display	7" HD Colour touch screen ,1024X600 high resolution
Screen	display melting curve in real time
Communication interface	USB Type A,USB Type B, R232
Print Function	YES
Measurement Report	Auto generate and store
User Management	Two grades:administrator+operator
Power supply	110/220±10%V AC, 50/60Hz/120W
Dimensions (L ×W×H):	345X245X215mm
Weight	About 4.5kg

FAQ:

Q:Are your company a trading one or a factory?
A:Factory Direct Sale, More than 12 years focusing on lab instruments field,10 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:Our products are guaranteed for 12 months and we provide life-long service. The professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q: Is Available to print customer required logo on your product ?
A: Sure. Please inform and confirm the logo design details with our team ahead of the production.Then we will follow your requirement

Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy.  Or irrevocable L/C.
