Best End Closure for Plastic Pipes

GOLDEN TIME TECHNOLOGY DEVELOPMENT LIMITED
  • After-sales Service：Lifetime Maintenance
  • Warranty：Lifetime Maintenance
  • Max Diameter of Workpiece：2000mm
  • Mass Scope of Workpiece：2000kg
  • Type：Material Testing Machine
  • Maxcapacity：>1000KN

Base Info

  • Model NO.：GT-EC-SS
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Transport Package：Wooden Package
  • Specification：400kg
  • Trademark：GT-TEST
  • Origin：Beijing
  • HS Code：9024800000
  • Production Capacity：100

Description

Basic Info.

Model NO. GT-EC-SS Accuracy Grade 0.5 Load Way Mechanical Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Transport Package Wooden Package Specification 400kg Trademark GT-TEST Origin Beijing HS Code 9024800000 Production Capacity 100

Product Description

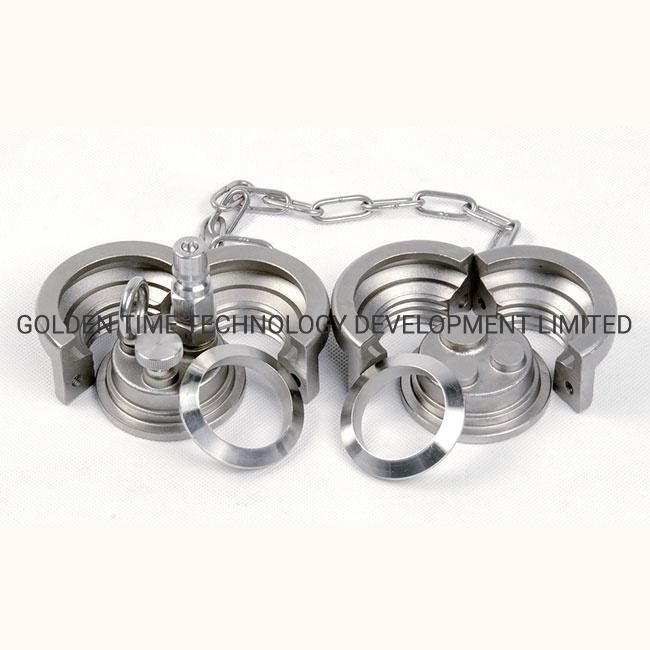

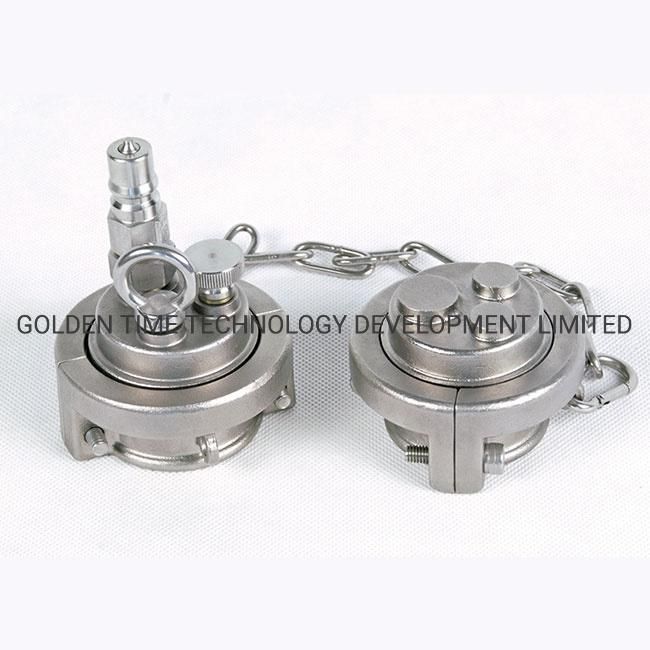

 End Closure for Plastic Pipes

Stan­dards

  • ISO 1167
  • ASTM D 1598
  • ASTM D 1599

Application
For internal hydrostatic pressure testing of pipes. The end closures seal off the sample in order to generate internal pressure in the sample. Maximum pressure depends on standard, specifications and pipe sample diameter.

Features
  1. Special design ensures easy mounting and perfect sealing. Split type clamps help to realize automatic centering.
  2. Selected material of stainless steel with the advantages of corrosion resistance, durability and weight.
  3. Hollow-out design makes it lighter in weight, easier for observation and operation. E.g. the single-end weight of DN400 enclosure is less than 50kg and the weight of clamps is 7.3kg.
  4. End caps are produced with a specific depth from O-ring to the internal bottom which ensures that even on chamfered and oval PE pipes.
  5. Stainless steel chain is provided to avoid the lower enclosure fall on the bottom of water thank in case of specimen fails.
  6. Simple and reliable venting directly at the sample.
  7. Air resource inlet and drain port are introduced to drain water after testing for big diameter end caps.

Technical specifications
Material: Stainless steel (carbon steel as option)
Diameter range: Ø12mm up to Ø1200mm
Connection: 1/4" male connection and supplied with bleed valve
Max. test pressure: up to 100 bar
