Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen Burner

Shenzhen Bonad Instrument Co., Ltd.
  • Type：Vertical Flame Burner
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Needle

Base Info

  • Model NO.：BND-DXR
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Other
  • Transport Package：Wooden Box
  • Specification：550x450x1380(mm)
  • Trademark：BONAD
  • Origin：Guangdong Province, China
  • Production Capacity：100PCS,Month

Description

Basic Info.

Model NO. BND-DXR Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Other Transport Package Wooden Box Specification 550x450x1380(mm) Trademark BONAD Origin Guangdong Province, China Production Capacity 100PCS/Month

Product Description


Model BND-DXR Single Wire  Vertical Flame Burner/Bunsen Burner


 Introdution:
• This vertical burning test instrument is conformance to IEC60332 and several standards, it use specified size Bunsen burner and propane, vertical burn the sample at certain height and angle, according to the ignition time, burning time and burning length to determine whether the sample has danger on fire.
•It is mainly for accessing the flammability of single cable which conductor's diameter is bigger than 8mm (sectional area bigger than 0.5mm2) or smaller than (sectional area smaller than 0.5mm2) . It is applied to lighting equipment, low-voltage apparatus, household appliances, electric tool, electro-technical instruments and parts for researching, manufacturing and quality inspection.

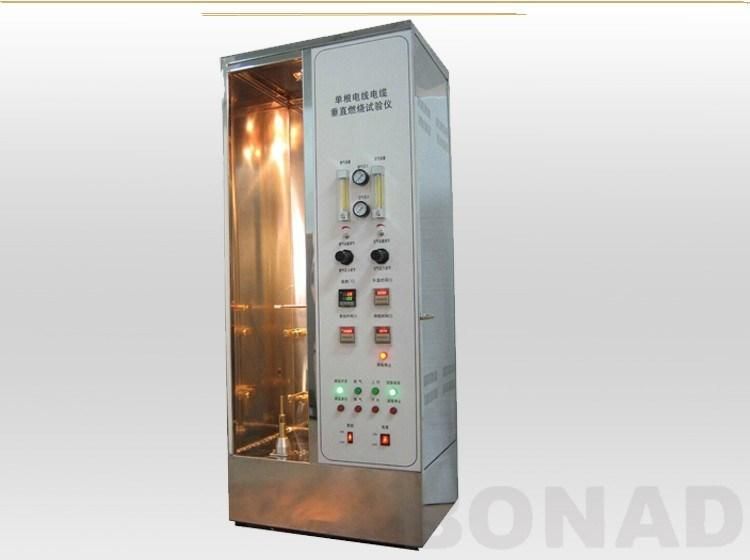

 Product show :
Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen Burner
Technical Parameters:
Burner1pcs Inner diameter 2mm ± 0.5mm and 1pcs inner diameter 9.5mm ±
0.5mm Busun Burner
Test angle45°
Burn height20mm ± 2mm to 190mm±1mm adjustable
Ignition time0-999.9s±0.1s adjustable
Burning time0-999.9s±0.1s,auto record, manual stop
Gas98% propane (can be replaced by liquefied petroleum gas in normal case)
Flow pressureDouble-range recording meter and pressure gauge(gas and air)
 385x204x360 mm
Temperature range0~1000ºC
Fire temperature requirementFrom 100ºC±5ºC rise to 700ºC±3ºC in 45sec±2sec
ThermometerΦ0.5mm(K type)
ProcessAuto test, no individual ventilation
StandardIEC60332-1
Chamber dimension0.15 m3 , exclude door
Instrument dimension550x450x1380(mm)
Power supplyAC220V,50Hz,≤500W

 Packaging & Delivery
Packaging: Wooden Box
Delivery:Shipped in 15~30 days after payment


Our  Advantages :Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen Burner

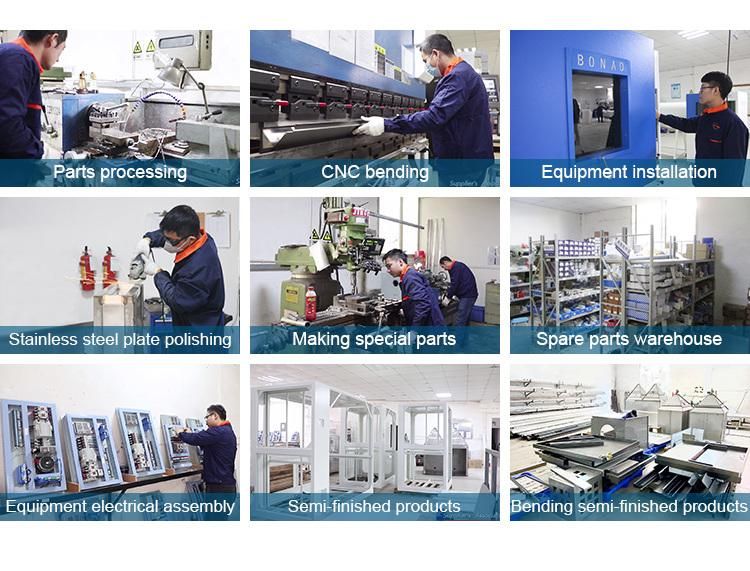

Company  Profile :Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen BurnerCertifications :Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen BurnerFactory  Introduction :Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen BurnerPlant Warehouse :Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen BurnerCooperative Customers & Brands:Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen Burner

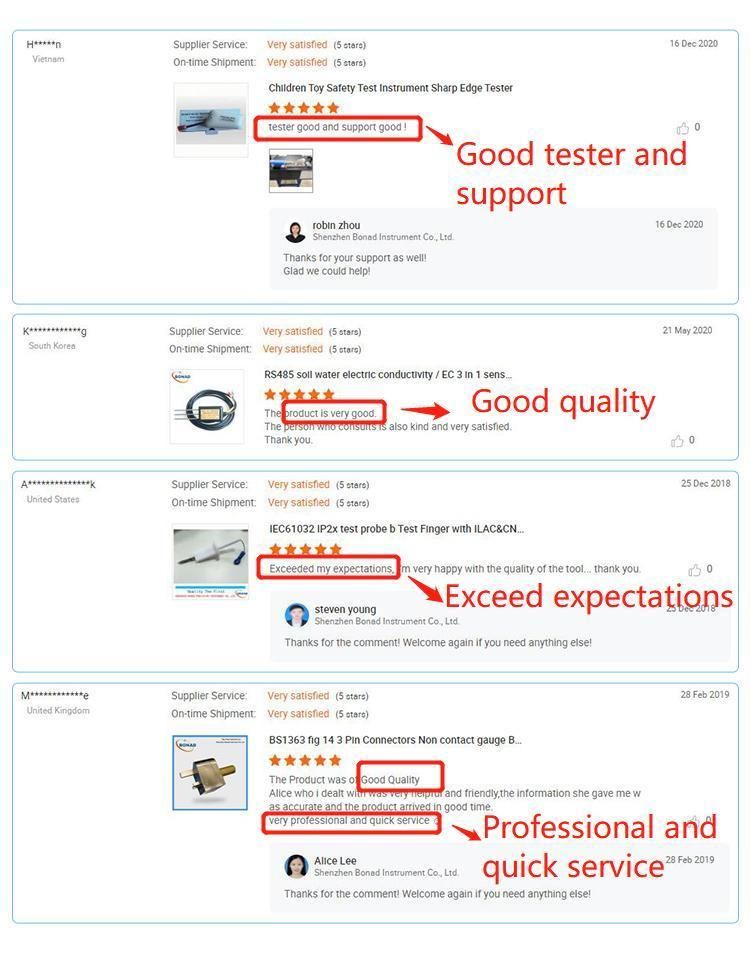

Customer  Reviews :Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen BurnerProduct  Packaging :Model Bnd-Dxr Single Wire Vertical Flame Burner Bunsen Burner
