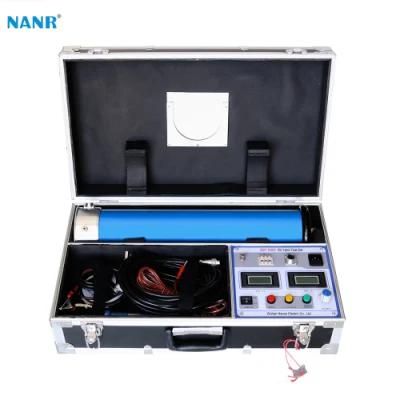

DC High Voltage Test Usaged 120kv 5mA DC High Voltage Generator for Surge Arrester
Wuhan NANR Electric Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year Warranty
- Type：Universal Testing Machine
- Display：Digital
- Control：Manual and Automatic
- Weight：0-100Kg
Base Info
- Model NO.：ZGF-120,5
- Power Source：AC220V
- Rated Voltage：0 - 120kv
- Rated Current：0 - 5mA
- Rated Power：600W
- Accuracy：1.0% Reading + , - 2digits
- Power Supply：Single-Phase 220V, 50Hz
- Ripple Factor：< 1%
- Operation Method：Intermittent Use, Running Time<30min Each Time
- Relative Humidity：< 85%Rh
- Altitude：<1000m
- Temperature：-10 - 40 Centigrade
- Transport Package：Plywood Case
- Trademark：NANR
- Origin：Wuhan China
- HS Code：9030339000
- Production Capacity：5000 Sets Per Year
Description
Operational box features High precision 0.75UDC1mA, single touch button (Accuracy ≤1.0%), suitable for MOA test Over voltage adopt drawing code setting, clearance All in one, portable
Remarks:Voltage: AC 100V /110V /115V /120V /200V /220V /230V /240V can be customized;
Input frequency: 50Hz/60Hz can be customized;
3. Product characteristics
1) Adopt high frequency multivoltage circuit, PWM pulse width modulation technology and high-power IGBT devices.
2) Adopt voltage large feedback, output voltage is stable, ripple factor less than ≤1%.
3) Full range with smooth regulating, voltage regulate fitness precision ≤0.5%, stability≤1%,voltage / current error 1%(reading ±0.2KV), current error ±1 digital.
4) Potentionmeter step up from zero.
5) 75%UDC1mA functional button, easy for MOA testing, accuracy:1% reading ±1%.
6) Over voltage protection adopts drawing code setting, is clear, error ±1%.
7) Multivoltage cylinder adopt new material, light weight, firm. The surface coated special insulation material, good electrical performance, strong moisture resistance.
8) Folding supporting type, long diameter, stable performance.
9) ZGF40KV integrated design, high voltage drag cable, easy for field testing.
4. Patent Certificate
As a professional manufacturer of DC high voltage generator, we have professional R&D team to master the core technology, we had awarded the design patent certificate in 2012.
