• Model NO.：GT-MFI-450A
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Transport Package：Wooden Package with Furmigation Marks
• Specification：80kg
• Trademark：GT-TEST
• Origin：Beijing
• HS Code：9024800000
• Production Capacity：200 Units

Basic Info.

Model NO. GT-MFI-450A Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Transport Package Wooden Package with Furmigation Marks Specification 80kg Trademark GT-TEST Origin Beijing HS Code 9024800000 Production Capacity 200 Units

Product Description

Standards

1. ISO 1133
2. ASTM D 1238

Application

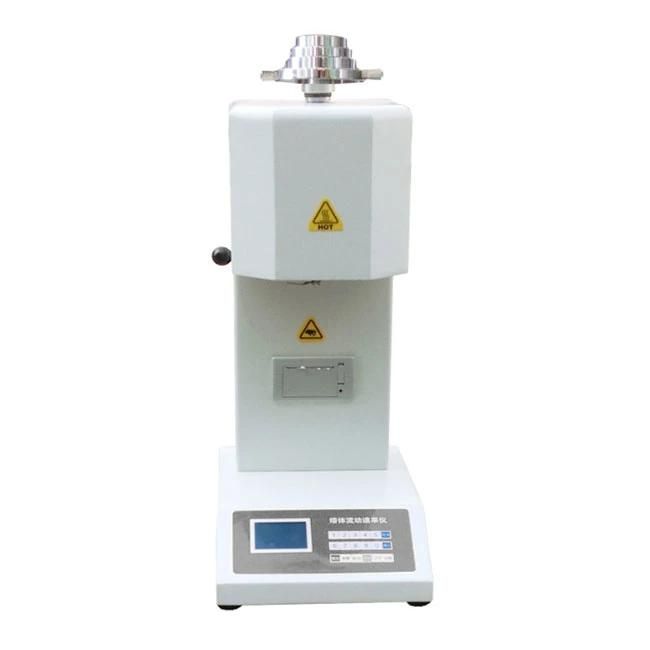

This type of Melt Flow Indexer is a new and affordable tabletop instrument that tests the melt mass-flow rate (MFR) of a wide range of thermoplastic raw materials, in the form of granules, strips of film etc. This test method is particularly useful for quality control tests on thermoplastics.
Features

1. High Accuracy! The built-in microprocessor maintains temperature control to within ± 0.5ºC, with rapid ram-up to the set point. Extruded material is automatically cut off by the built-in scraper mechanism at preset intervals, controllable to ± 0.1second.

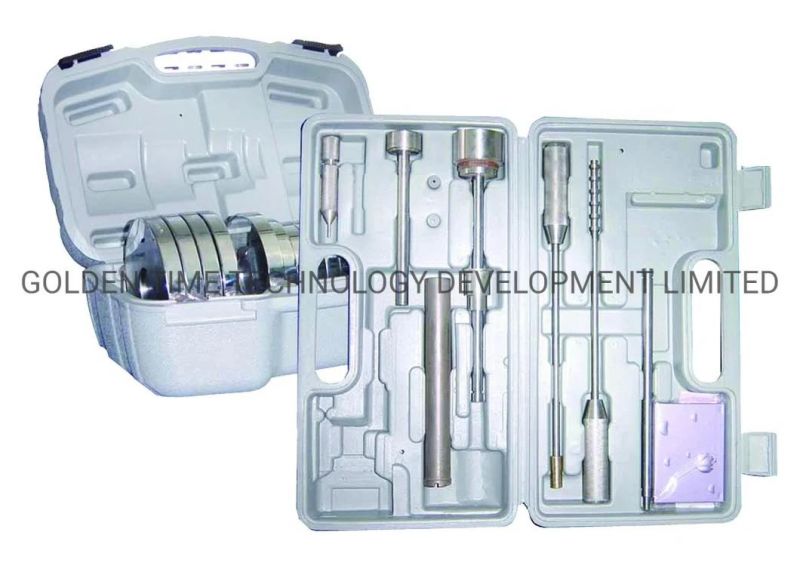

2. Ease to operate! Testing Melt Flow Rate has never been so economical or easy to do! The tester is supplied completely with the accessories and weights necessary for maintenance and operation. Nothing else to buy--just plug it in and start a test.

Technical Parameters

• Temperature Control Range: 50°C - 450°C
• Temperature Accuracy:  +/- 0.5°C
• Temperature rising time < 30min
• Temperature fluctuation ± 0.5°C
• Temperature display error ≤±0.2°C
• Display mode: LCD
• Temperature Recovery time:< 4min
• Accuracy of timer: 0.01°C
• Measurement range : 1.0g -100g/10 Min (MFR)
• Electrical Requirement: 220V 50HZ/60HZ
