• Model NO.：TPO-3000
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Test Method：Thermocouple Differential Detection
• Power Consumption：Power Consumption
• Ignition Mode：Automatically Electronic Ignition
• Temperature Detection：Imported Precision Platinum Resistance
• Transport Package：Wooden Case
• Specification：400*300*240mm
• Trademark：TOP Oil Tester
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. TPO-3000 Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Test Method Thermocouple Differential Detection Power Consumption Power Consumption Ignition Mode Automatically Electronic Ignition Temperature Detection Imported Precision Platinum Resistance Transport Package Wooden Case Specification 400*300*240mm Trademark TOP Oil Tester Origin Chongqing, China HS Code 9027809900 Production Capacity 200 Sets Per Month

Product Description

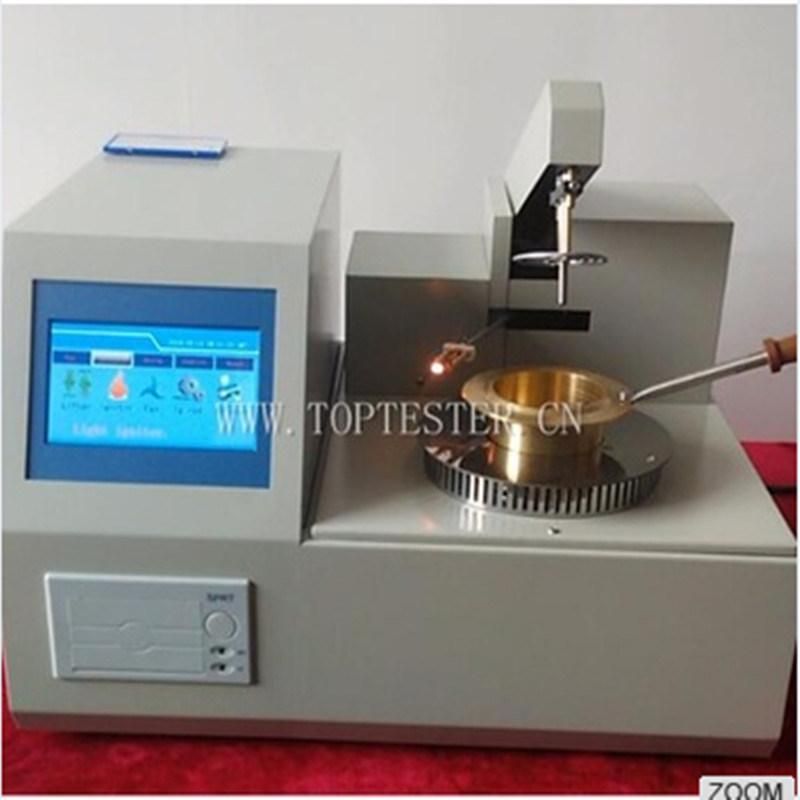

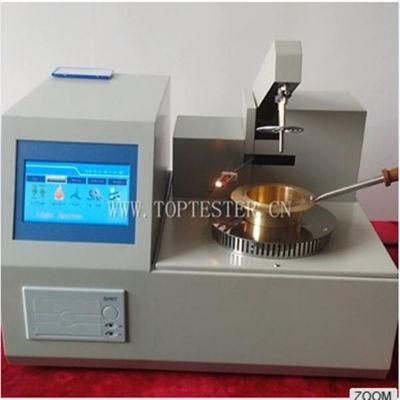

ASTM D92 Transformer Oil Open Cup Flash Point Tester (TPO-3000)

No need of gas source; electronic ignition; imported sensor; automatic correction of air pressure; alerting if over value

Application
The automatic flash point analyzer(open-cup) is designed in accordance with ASTM D92,
IS02592,GB267,GB3536 etc. It adopts microcomputer technology that makes it completely automatic. It is equipped with color touch screen operations system and auto-high speed thermal printer. Most importantly, it has the function of self-checking. It is an ideal flash point analyzer(open-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.

Main Features
1.7-inch color touch screen and man-machine conversation LCD display in English.

2.Adopt high speed signal processor: precise simulation/digital converter circuit.

3.Built-in automatic atmospheric pressure detector: automatically detect and correct the atmosphere pressure; self-adjust the flash point.

4.Data storage function: store 300 groups testing data. It is timely to check historical records.

5.Differential detection: automatic correction of systematic bias; automatically stopped testing by over temperature detection and alert.

6.Stirring,ignition, testing, alerting, cooling and printing are fully automatic.

7.Adaptive PID control algorithm: automatically adjust the heating curve according to standards.

8.Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling and printing, etc.

9.Secure and airless source of platinum alloy to ignite: stable,reliable with high precision.

Technical Parameters

Display	7-inch color touch LCD display screen
Testing method	Thermocouple differential detection
Testing range	Room temperature-400ºC
Repeatability	±2ºC
Printer	High speed thermal printer,paper size:44mm
Ignition mode	Automatically electronic ignition
Temperature detection	Imported precision platinum resistance
Self-checking	Printer, igniter, electromagnetic valve, detection arm movements, ignition rod stroke etc.
Power consumption	<700w
Temperature	Atmospheric temperature: 10ºC-45ºC,humidity: 30-80%
Power	AC220V±10%
Dimension	400×300×240mm
Weight	20 kg

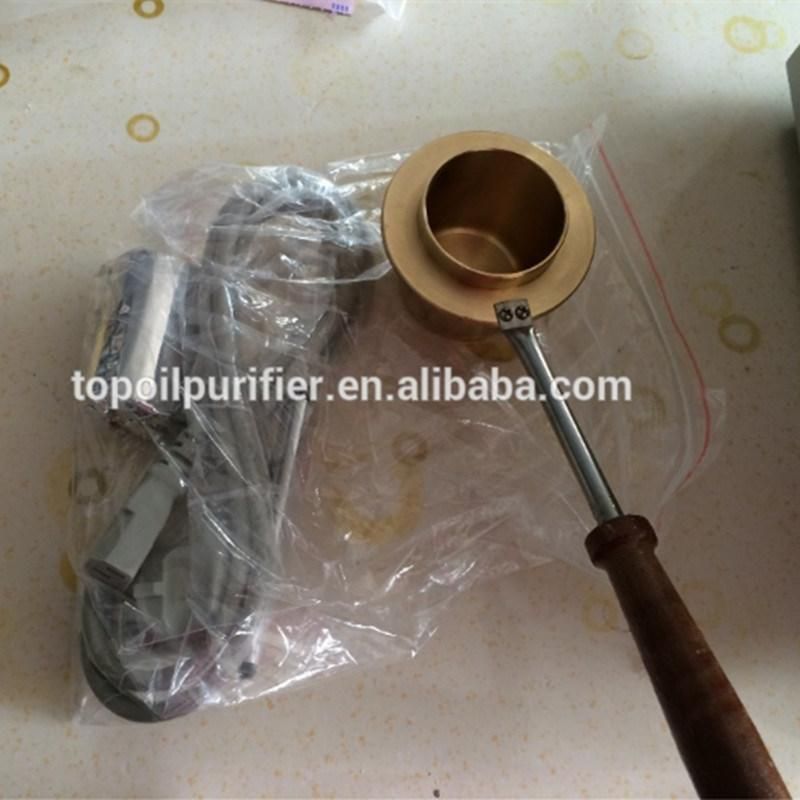

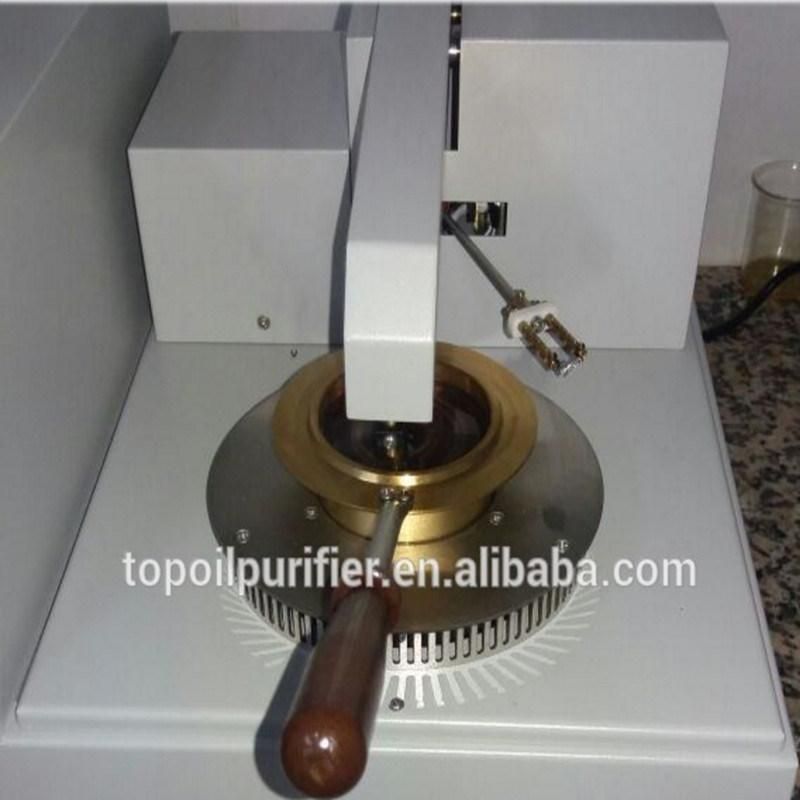

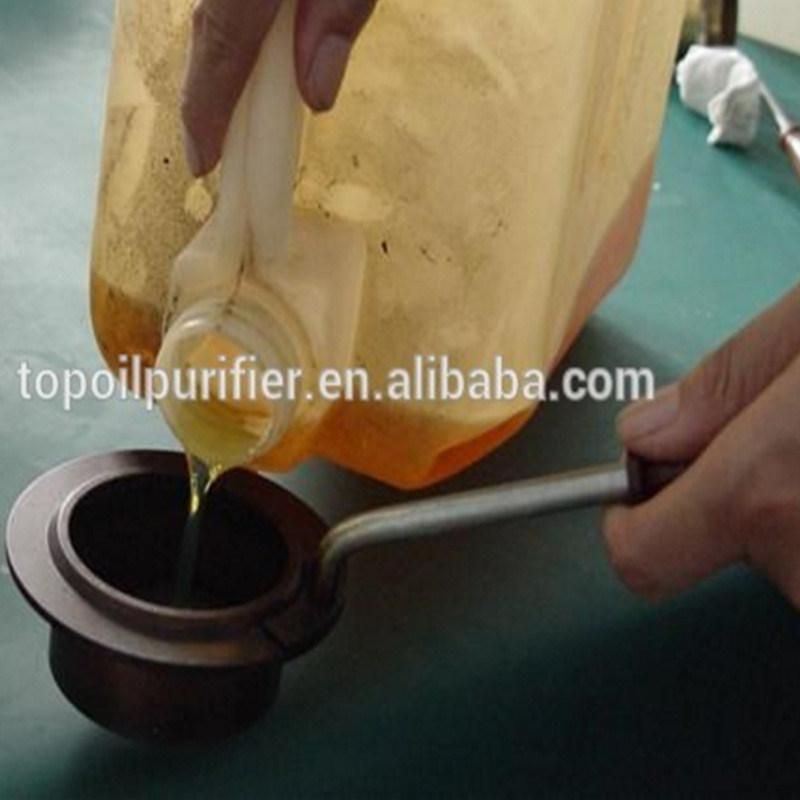

Detaile Images





For more details, please contact me freely!


About Us
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They play a great role in reducing energy consumption for clients as well as environmental pollution. We provide you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, and waste oil recycling equipment etc.

TOP Testers work on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers,and  high voltage testing equipment etc.

Main Testers
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Kinematic Viscosity Tester VST-2000
3. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
4. Fully Automatic Surface/Interface Tension Tester IT-800
5. Fully Automatic Open Cup Flash Point Tester TPO-3000
6.Fully Automatic Closed Cup Flash Point Tester TPC-3000
7.Cloud Point & Pour Point Tester PT-2000
8.Multi-functional Vibration Tester VBT-2000
9.Petroleum Products Density Tester DST-3000
10.Distillation Range Tester DIL-201
11.Liquid Phase Corrosion Tester TPS-05
12.Copper Corrosion Tester TP-113
13.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
14.Dew Point Tester DPME-P
15.Vehicle Gear Oil Channel Point Tester Model TP-0030
16.Anti-Corrosive Oil/Grease Salt Spray Corrosion Tester Model TP-0081
17. Mechanical Impurities Tester Model PC-511
18. Air Release Value Tester Model TP-0308
19.Distillate Fuel Oil Oxidation Stability Tester Model TP-175
20. Foam Characteristics Tester Model FC-892
21.Dark Petroleum Products Sulfur Content Tester Model TPC-120
22. Petroleum Products Aniline Point Tester Model TP-262A
23.Petroleum Products Ash Tester Model TP-508
24.Petroleum Products Chroma Tester Model TP-225
25. Automatic Petroleum Products Carbon Residue Tester (Micromethod) CS-0625
26.Spontaneous Ignition Point Tester FP-706
27.Fully Automatic Glassware Washing Machine TP504
28. Lube Oil/Grease Evaporation Loss Tester EL-7325
29. Crude Oil And Fuel Oil Sediment Tester TP-130
30. Wide Temperature Range Lubricating Grease Drop Point Tester TLS-22
31. Crude Oil And Petroleum Products Salt Content Tester SCA-068
32. Petroleum Products Saturated Vapor Pressure Tester(Reid Method) TP-8017
33.Petroleum Products Freezing Point Tester TP-2430
34. Oxygen Bomb Calorimeter TP-1B
35. Existent Gum Tester TP-509A
36.Octane and Hexadecane Value Tester TP-131
37.Automatic Gasoline Oxidation Stability Tester TP-148
38. Light Petroleum Products Sulfur Content Tester (Lamp-Kindled Method) TP-119
39. Resistant oil Chlorine Content Tester TP388
40. Distillate Fuel Mercaptan Sulfur Tester TP-624

Pre-sale Service
 *Recommend the most suitable machine according  customer's demands.
* Professional pre-sale model/configuration selection advise  and technical support -- offered by experienced technician.
* Free on-site installation, debugging and technical training --  offered by strictly trained technology application engineers.
*Offer OEM service.

After-sale Service

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record   the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Package & Delivery

*Standard export wooden case with high quality cushioning material ensures that the customers get the item in good condition.
*Carefully check every packing detail before delivery to avoid any troubles during the transportation.
*Appointed logistics company could be used according to customers demands.
* Do our best to make sure customers can get their goods in time.
