• Model NO.：LDS-5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：110kg
• Power Source：AC220V
• Transport Package：Fumigation Free Standard Export Packing Box
• Specification：420mm*275mm*1480mm
• Trademark：CB
• Origin：Jinan
• HS Code：9024800000
• Production Capacity：15

Basic Info.

Model NO. LDS-5 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 110kg Power Source AC220V Transport Package Fumigation Free Standard Export Packing Box Specification 420mm*275mm*1480mm Trademark CB Origin Jinan HS Code 9024800000 Production Capacity 15

Product Description

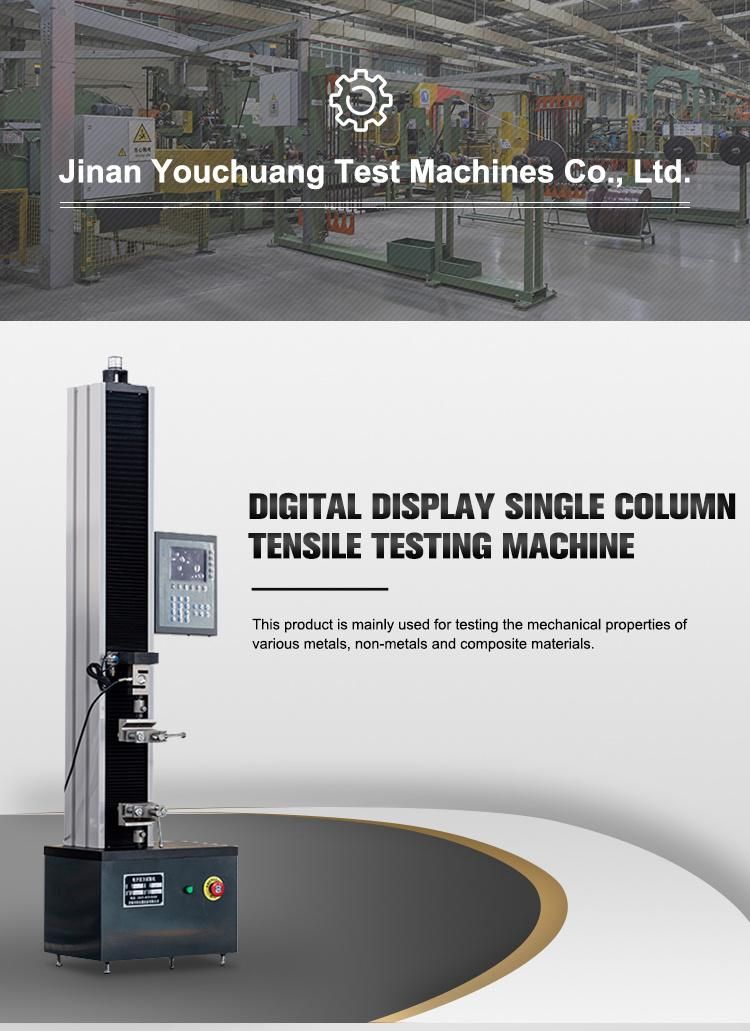

This series of electronic universal testing machine is an economical and practical model developed by our company. This product uses high-strength smooth bars to fix the upper beam and the workbench surface, which makes it form a high-rigidity frame structure. It is driven by a domestic motor, which drives the beam to move up and down through a transmission mechanism to realize the test loading process.Tension and compression space is relatively large, and column spacing is small.LCD screen display is adopted and the configuration is relatively low-end.Accuracy level 1.
This product is mainly used for testing the mechanical properties of various metals, nonmetals and composite materials.The use of word amplification and acquisition makes the display stable, high-precision and easy to use.High precision synchronous belt wheel deceleration has the characteristics of stable transmission, low noise and long service life;Large liquid crystal display, which can display test tensile strength, elongation, maximum force value, deformation, etc., has generous appearance, convenient use and simple operation;With overload automatic protection function.
The equipment is suitable for manufacturing industries such as metals, adhesives, pipes, profiles, aerospace, petrochemical industry, waterproofing materials, wires and cables, textiles, fibers, rubber, ceramics, food, pharmaceutical packaging, geotextiles, films, wood, paper and other product quality supervision departments at all levels, and is also suitable for teaching demonstration work in colleges and universities.
 Main features:
1. The appearance adopts electrostatic spray drawing of surface cold plate, which is simple and generous, multifunctional and economical and practical
2. Force value digital liquid crystal display, and the liquid crystal interface is clear and easy to read;
3. Two units of measurement: N-KN is optional;
4.LCD liquid crystal display with backlight illumination can be used in the environment with insufficient light;
5. After a single measurement, you can read the peak value of tension and reset it automatically and manually;
6. With travel limit and overload stop function.
7. The floor-standing single-column tensile machine is beautiful and delicate in structure, economical and practical;
Meet the criteria:
GB/T16491-1996 electronic universal testing machine
Main technical parameters:
A. maximum allowable load of the machine: 5KN.
B. load element: 5KN.
C. load measurement accuracy: load element +LDS display 0.5% (5%-100% of full scale)
D. Unit display: N, KN
E. resolution: 1/50000
F. Displacement resolution: 0.01mm
G. power system: AC motor, synchronous belt
H. Control system: test speed 0~300 mm/min
I. data sampling frequency: 200times/sec
J. travel of joint plate: 750mm.
K safety devices: overload and emergency stop devices, up and down stroke limiting devices, and leakage protection devices.
L. can store the results of 10 test reference points, automatically calculate the average value, automatically grab the maximum value and the force value when breaking.
M. display mode: LDS dark blue LCD screen displays in Chinese, with film touch key, with the following functions:
Single test, manual statistics at 10 points, and automatic calculation of average value and fracture value;
Automatic switching of multiple units such as n and kn;
Free point taking function;
With multifunctional correction function;
Adopt 24-bit AD acquisition with resolution of 1/20000;
0 ~ 4 decimal places can be selected arbitrarily;
The boot password protection function can effectively prevent non-operators from booting up;
Users can set appropriate breaking downtime according to different materials.
Overload protection function can be set to effectively prevent the machine from overloading;
Host parameters:
Effective stretching space distance: 0-800mm
Effective compression space distance: 0-800mm
Overall dimensions of equipment host (length * width * height) 420*275*1480(mm)
After the specimen is damaged, the moving beam automatically stops moving (or automatically returns to the initial position)
With program control and mechanical limit protection
When the load exceeds the rated value by 3 ~ 5%, it will stop automatically
Power supply: 220V, 50Hz
Net weight of equipment: 110Kg
Use environment: no vibration and dust;Room temperature (15-25ºC);Humidity < 70%;There is no vibration, corrosive medium and strong magnetic field interference around;The fluctuation of power supply voltage shall not exceed 10% of rated voltage.Materials, etc.: several copies;
 Product Configuration:
Stepping motor: Hangzhou Jiugu
Full digital control system: Jinan Weisheng
Deceleration system: Hangzhou Jiugu
High precision load sensor: Guangzhou wide measurement
Precision screw pair: Tianjin Hechun
Clamping fixture: 1 set of corrugated fixture
Compression fixture: 1 set of pressure plate
Random tools:
Operating instructions of testing machine
Packing list (including factory verification certificate, warranty certificate,)
