I. C. T SMT Machine X-ray Inspection Equipment for PCB Process Testing
Dongguan Intercontinental Technology Co., Ltd.- Function：PCB Inspection
- Display：Computer Screen
- Usage：SMT PCB Production Line
- Warranty：1 Year
- Power Source：AC 85V-265V
- Weight：Approx.1000kg
Base Info
- Model NO.：I. C. T
- Installation：Direct Connected
- Customized：Non-Customized
- Product Name：SMT X-ray Machine
- Power：0.5kw
- X-ray Tube Type：Closed
- Image Detector Resolution：77,100lp,Cm
- Work Station Detection Area：385mm×435mm
- Max Load Weight：8kg
- Operate Mode：Mouse, Keyboard, Joystick
- Temperature Control：K-Type Thermcouple
- Available BGA Chip：2*2~80*80 mm(Min 0.04*0.04 Inch)
- Power Supply：AC:220±10%, 50,60Hz
- Transport Package：Vacuum Wooden Box
- Specification：1080*1180*1730mm
- Trademark：I. C. T
- Origin：China
- Production Capacity：50set,Month
Description

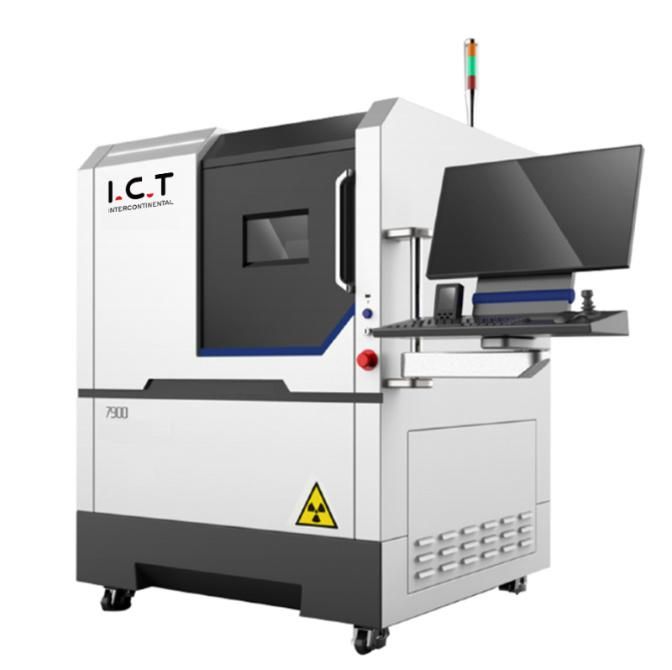

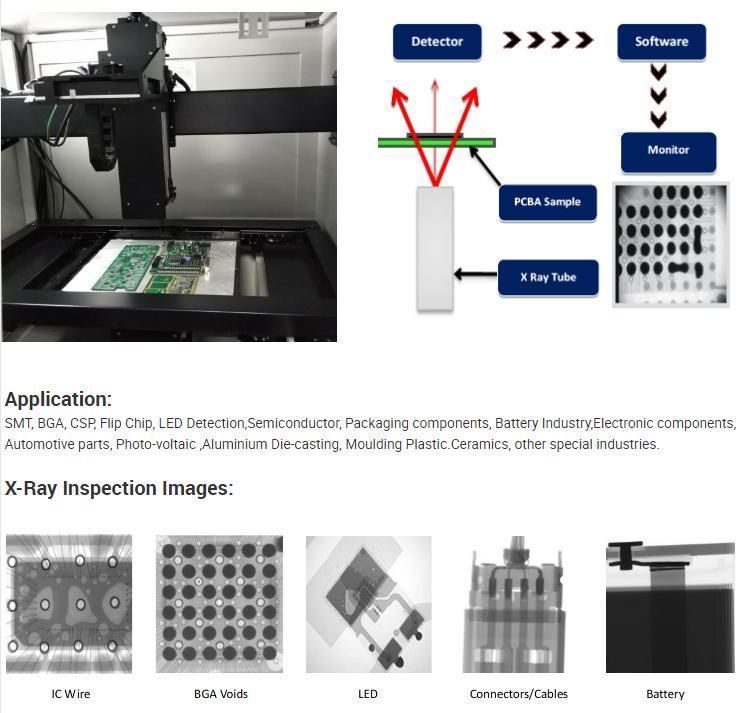

Introduction:The I.C.T-7900 is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system
is effective for
many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT
components.
I.C.T-7900 is a powerful support tool for process development, process monitoring and refinement of the rework operation.
Features:
1.90kV 5µm closed X-ray tube.
2.High resolution FPD with 4-axis motion system, meet basic inspection demands.
3.Navigation in windows, target tracking conveniently.
4.CNC program, improve efficiency significantly.
5.Max. loading area 440mm×400mm, max. inspection area 420mm×380mm, with 360X Magnification.
6.BGA void/area auto-measurement plus report generation.
7.Multi-function DXI image processing system.
Specification
A: Leading SMT Supplier in China; Professional Supplier on Alibaba;
Trade assurance to USD 560,000+; Professional after-sales service team.
