• Model NO.：ZLT-CJ
• Origin：Guangzhou, Guangdong, China
• HS Code：9031809090
• Production Capacity：Preapre Every Time!

Basic Info.

Model NO. ZLT-CJ Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Preapre Every Time!

Product Description

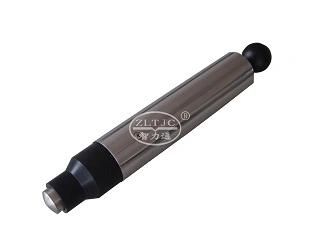

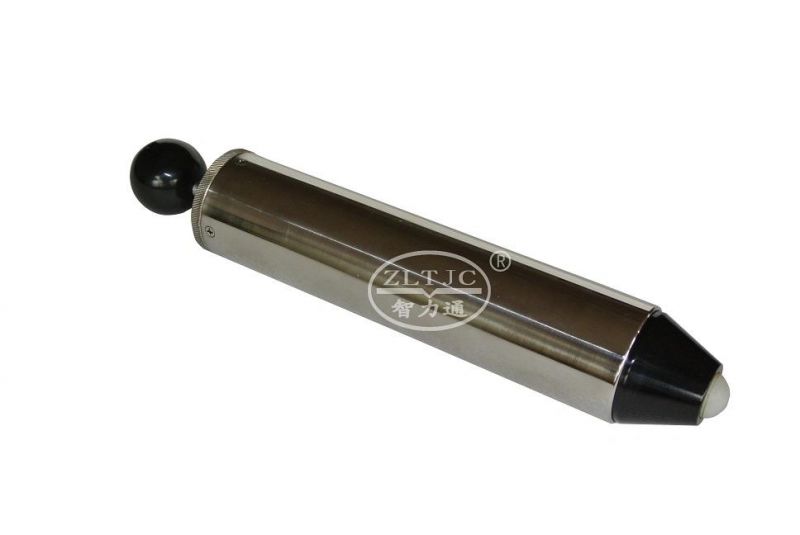

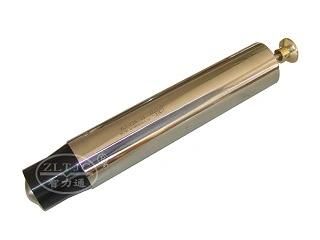

1. Spring-operated Impact Hammer
Required by many Standards to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance to IEC60068-2-75 Ehb, EN, UL, CSA and other international Standards.
Product Details
· Body: Includes release mechanism and striking element guide, mass 1250 g, outside diameter 50mm.
· Striking element: With cocking knob and with hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g, length approx. 310mm.
· Release Cone: Mass 60 g, release force ≤ 10N.
· Impact Force: Single force and adjustable models available in impact energies of 0.20, 0.35, 0.50, 0, 70 and 1, 0 J, mass of striking element is 250g.
· Custom padded carrying case included.
· Model: ZLT-CJ1: Single impact energy models(0, 14J ± 0, 014 J, 0, 20J± 0, 02J, 0, 35J ± 0, 03 J, 0, 50J± 0, 04 J, 0, 70J± 0, 05 J or 1, 0 J± 0.05 J, select)

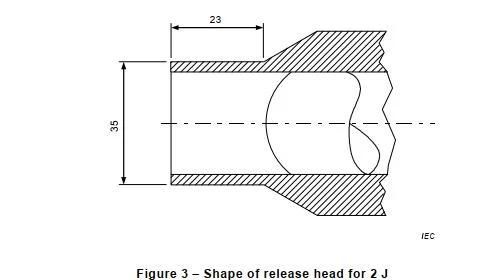

· Model: ZLT-CJ2: Impact energy of 2J± 0, 1J, mass of striking element is 500g, hammer heads made of steel with r=25 mm, 10 N release force.
· Model: ZLT-CJ3: Adjustable models with five impact energies of 0, 20 J± 0, 02 J, 0, 35 J± 0, 03 J, 0, 50J± 0, 04J, 0, 70 J± 0, 05 J and 1, 0 J± 0, 05 J, mass of striking element is 250 g.
· Model: ZLT-CJ5: Impact energy of 5 J± 0, 25 J, mass of striking element is 1.7 kg, hammer heads made of steel with r=25 mm, 10 N release force.
Conforms To: IEC60068-2-75 Test Ehb, IEC60065, IEC60335-1, IEC60598-1, IEC60745-1.
