• Model NO.：GT-MFI-450AB
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Test Methods：Mfr & Mvr
• Printing：Micro-Printer
• Optional Function：Export Test Data to Computer
• Transport Package：Wooden Package with Fumigation Marks
• Specification：80kg
• Trademark：GT-TEST
• Origin：Beijing
• HS Code：9024800000
• Production Capacity：200 Units

Basic Info.

Model NO. GT-MFI-450AB Control Computer Control Weight 0-100Kg Power Source AC220V Test Methods Mfr & Mvr Printing Micro-Printer Optional Function Export Test Data to Computer Transport Package Wooden Package with Fumigation Marks Specification 80kg Trademark GT-TEST Origin Beijing HS Code 9024800000 Production Capacity 200 Units

Product Description

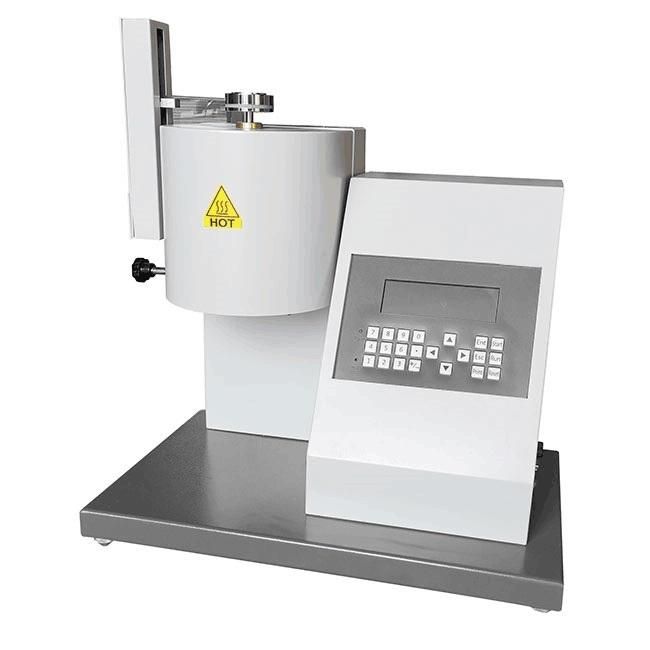

Melt Flow Indexer GT-MFI-450B

Standards

1. ISO 1133, test method A and B
2. ASTM D 1238, test method A and B

Application
It is an affordable tabletop instrument that tests the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of a wide range of thermoplastic raw materials, in the form of granules, strips of film etc, which is particularly useful for quality control tests on thermoplastics.

Features

1. The instrument is with panel for a simple and fast input of the test parameters, visualization of test execution and final results. Also, test result can be print out via a built-in printer.
2. Both Melt flow rate (MFR) and Melt volume rate (MVR) can be determined through a calibrated die under the effect of a pre-determined force, at constant temperature.
3. Piston displacement monitored by encoder; storing and printing whenever necessary.
4. It is supplied completely with all the accessories and weights necessary for maintenance and operation.

Technical Parameters

• Temperature Control Range: 50°C - 450°C
• Temperature Accuracy:  +/- 0.5°C
• Temperature fluctuation ± 0.5°C
• Temperature display error ≤±0.2°C
• Temperature Recovery time:< 4min
• Accuracy of timer: 0.01°C
• Displacement Accuracy: ± 0.02mm
• Measurement range : 1.0g -100g/10 Min (MFR) / 0.01 -350cm3/10min(MVR)
