• Model NO.：HD-E802
• Power Source：AC220V
• Product Name：UV Aging Test Chamber
• Chamber Dimension (W*D*H)：1300*500*1460mm
• Chamber Material：SUS#304 Stainless Steel
• Temperature Range：Rt to 70ºC
• Temperature Uniformity：3ºC
• Humidity Range：≥75%Rh
• Controller：Programmable Controller, LCD Touch Screen
• Irradiance Range：0.45~0.90W,M2
• Testing Time：0~999h, Adjustable
• Transport Package：Strong Wooden Case
• Specification：ISO 4892-3, ASTM G154
• Trademark：Haida
• Origin：China
• HS Code：8479899990
• Production Capacity：150 Sets,Months

Basic Info.

Model NO. HD-E802 Power Source AC220V Product Name UV Aging Test Chamber Chamber Dimension (W*D*H) 1300*500*1460mm Chamber Material SUS#304 Stainless Steel Temperature Range Rt to 70ºC Temperature Uniformity 3ºC Humidity Range ≥75%Rh Controller Programmable Controller, LCD Touch Screen Irradiance Range 0.45~0.90W/M2 Testing Time 0~999h, Adjustable Transport Package Strong Wooden Case Specification ISO 4892-3, ASTM G154 Trademark Haida Origin China HS Code 8479899990 Production Capacity 150 Sets/Months

Product Description

Lab UV Aging Chamber Industrial Quv Accelerated Weathering Tester
Description:
UV aging test chamber can simulate the damage caused by sunlight, rain and dew to the material, UV use UV (UV) lamp to simulate the effect of sunlight exposure, use cold moisture rain and dew.The tested material is tested in a cycle of alternating light and moisture at a given temperature.With a few days or weeks of testing, UV can reproduce damage that has been seen outdoors for months to years.

Application Range:
UV Aging Test Chamber is mainly used for coating ink paint, resin, plastic, printing and packaging, aluminum, adhesives, automobile and motorcycle industry, cosmetics, metals, electronics, electroplating, medicine and so on.

Conforming standard:
UV Aging Test Chamber meet international standard, such as GB, GJB, MIL, ASTM, CNS, IEC, JIS, Fed Test, BS, etc.

STANDARD FEATURES:

Item	Specification
Inside dimension	1140W×650D×500Hmm
Outside dimension	1340W×700D×1800Hmm
Chamber material	SUS#304 stainless steel
Temperature range	RT~70ºC
Temperature fluctuation	±2ºC
Temperature control	PID SSR control
Humidity range:	≥95%RH
Controller	Programmable controller, LCD touch screen
Control mode	Balance temperature humidity control (BTHC)
Test cycle setting	UV exposure, condensation and water spray test cycle is programmable
Lamp power	40W/Piece
Distance from sample to lamp	50±2mm
Centre distance between the lamp	70mm
Irradiance	0.45~0.8W/m2(optional)
UV lamps	Imported Atlas UV-A: 290-400nm (8pcs, 1600h lifetime)
Testing time	1~999s, m, h adjustable
Protection system	Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Applications:1.Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2.To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3.Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
 Function:
Meet Specifications
* Meet customer requirements
* Stay ahead of government regulations
Prevent Field Failures
* Improve quality and durability
* Enhance reputation
* Assure product performance
Gain a Competitive Edge
* Save on material costs
* Expand product lines
* Enter new markets
* Outrun the competition

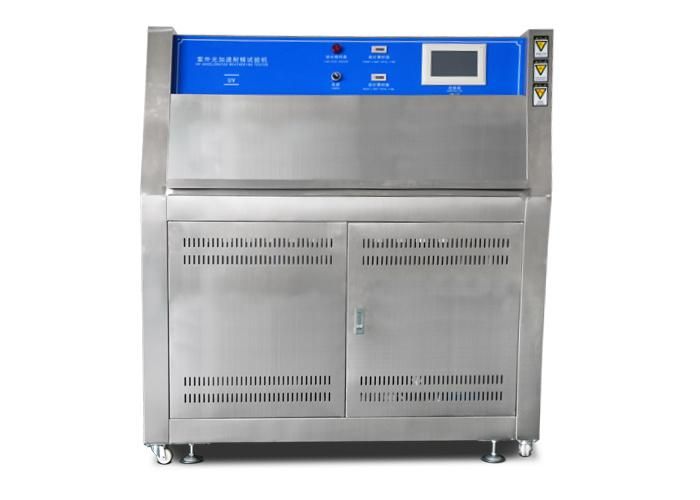

Product Image:
