• Model NO.：PN-IBT
• Specification：TAPPI
• Trademark：PNSHAR
• Origin：Hangzhou Zhejiang
• HS Code：90248000
• Production Capacity：200sets,Year

Basic Info.

Model NO. PN-IBT Specification TAPPI Trademark PNSHAR Origin Hangzhou Zhejiang HS Code 90248000 Production Capacity 200sets/Year

Product Description

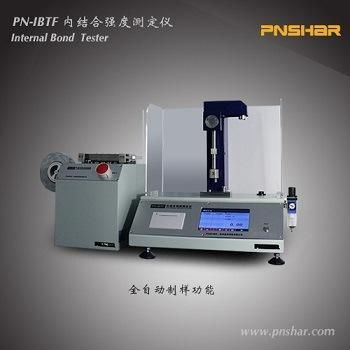

Scott Internal Bond Test equipment

1. Instruction:
This is Scott Internal Bond Test equipment.
The Scott Internal Bond Test equipment is designed to determine the internal bond strength of a variety of paper and board materials according to TAPPI T 569. The instrument design is based on a falling pendulum which creates a high speed impact on a paper specimen. The paper specimen is sandwiched between two double-coated tape substrates. The pendulum impacet measures the total energy required to delaminate the internal fibers of a specimen in a "Z" type direction into two separate piles. The system also incorporates an automatic sample preparation station which allow five specimens to be accurately prepared simultaneously.

2. Features:
1) Selectable units(ft.lb/in2, J/m2.)
2) Report printout with built-in printer
3) Automatic calibration

3. Applications:
Newsprint, Fine paper, Liner board, Bookstock, Carton board, Medium, Coatings, Laminates.

4. Standards: TAPPI T 569 and GB/T 262034.

5. Specifications:
1) POWER: AC 220V 50HZ
2) Test angle: 90°
3) Results directly in: lb-ft/in², J/M2
4) Ranges:  A: 20-500J/M2,  B: 500~1000J/M2
5) Dimensions(WxDxH): 70cm×34.5cm×63cm  92KG
