• Model NO.：KTS-200A
• Pre-Heat Time：+60 Oc~+200 Oc Within 20mins
• Pre-Cold Time：+20 Oc~-70 Oc Within 60mins
• Test Chamber：-55 Oc~+150 Oc
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and customized ISO9001, SGS
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

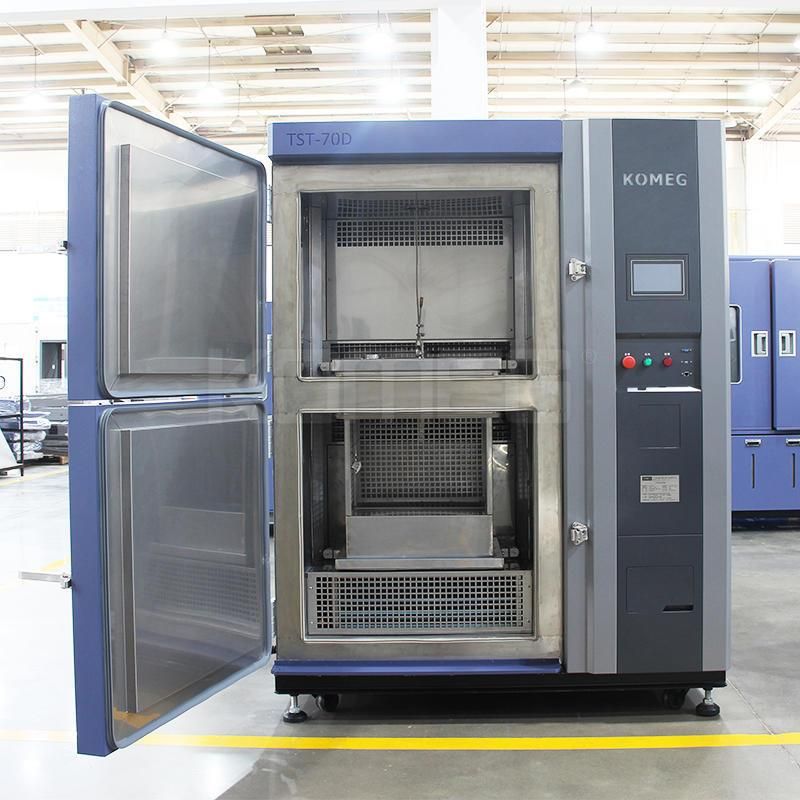

3 Zone Thermal Shock Test ChamberSpecificationsNote:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations availableModelKTS-B Series200BInterior sizeW(mm)670H(mm)600D(mm)500Exterior sizeW(mm)1720H(mm)2000D(mm)1850Test weight(KG)15Low Temp. chamber -70ºC~-10ºCPre-heat time +20ºC~-70ºC ,Within 60 minTest. chamber -55ºC~+150ºCHigh Temp. chamber +60ºC~+200ºCPre-heat time +60ºC~+200ºC ,Within 20 minRecovery timeHigh-Temp Exposure 30 minLow-Temp Exposure 30 minRecovery time within 5 minSafety deviceNo fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protectionStandard accessoryCable port(portΦ50mm)*1,   shelves*2Interior materialStainless steel plate(SUS 304)Exterior materialBaked painting steel or stainless steel(SUS304)Insulation materialRigid polyurethane Foam+glass fiber woolRefrigeration systemWater CooledSemi-hermetic compressor, cascade  refrigeration system,
CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel:7-inch LCD Touch panel,Chinese or English display selectableOperation model:Program or fix point runningMemory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.Accuracy:Temp.:0.1% of F.S±1 digit     Humidity:0.1% of F.S±1 digitInput:Temp.:pt-100                Humidity:pt-100 or ~5V DCVAmbient Temp.+5ºC~+35ºCPowerAC 380±10%50Hz ,3 phase 4 wires +Ground Wires

Main features of Thermal test chamber:
1. Programmable Controller with RS232C, 7 LCD touch panel control
2. Stainess steel Interior, galvanized steel sheet exterior
3. 2pcs stainless steel loading shelves free
4. Multipane viewing window with heater
5. 50mm diameter feed-through port
6. Floor stand with castors.
1.3-zone design: High temperature zone, cold temperature zone, and testing zone.
2. The test specimens under test are stationary in the testing zone.
3. Touch-control operation interface for ease of use.
4. Max. 999H and max. 9999 cycles for high or low temperature shock for thermal shock test chamber.
5. Automatic cycling shock or/and manual selective shock are available
6. Water cooled, binary cooling system for quick cooling effect.


Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt Spray Chamber
Two wings Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
