100kn Digital Brick Compression Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service:Standard
- Warranty:1 Year
- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:<900kg
- Type:Compression Testing Machine
- Maxcapacity:100kn
Base Info
- Model NO.:YES-100
- Accuracy Grade:1
- Load Way:Mechanical Load
- Loading Method:Static Load
- Display:Digital
- Control:Manual Control
- Weight:100-500Kg
- Power Source:AC 380V ,220V
- Oil Cylinder Position:Under
- Color:Gray, White , Blue,Green or Customized
- Safe:Protection Net
- Sample:Concrete or Cement or Stone
- Resolution:0.01kn
- Distance Between Pressure Plate:210mm
- Distance Between Columns:180mm
- Pressure Plate:170mm
- Transport Package:Standard Sea Shipping Case
- Specification:900*450*1400mm
- Trademark:HST or OEM
- Origin:China
- HS Code:9024800000
- Production Capacity:500 Sets,Month
Description
Overview
Product Description
2. Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test force exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3.Main Specifications Block adjustment test spaceOil source control structure With the host integration design Control mode Manual control loading process Test class 1 class 1 class 1 class Load display accuracy ±1% ±1% ±1% Force resolution 1/10000 1/10000 1/10000 Piston stroke 80mm 80mm 80mm Max piston speed 50mm/min 50mm/min 50mm/min Max compression space between two plates 210mm 210mm 210mm Max distance between two columns 180mm 180mm 180mm Working table size φ170 mm φ170 mm φ170 mm Dimension 900×450×1400mm Power supply 0.75Kw/AC380V Company ProfileOur exhibationCertificationsPackaging & ShippingContact
Our Business Scope
A: Universal Testing Machine: Electronic/hydraulic WDS/WDW/WE/WEW/WAW
B: Impact Testing Machine: JB/ JBS/JBW/JBDW-300J/500J/750J

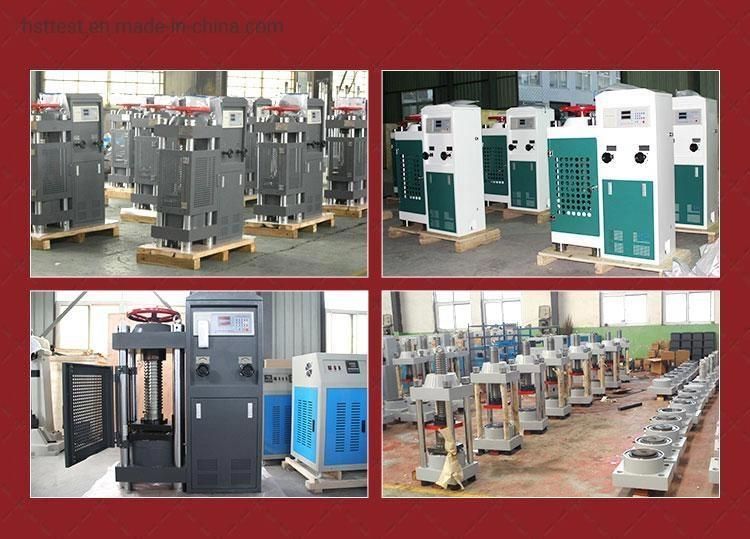

C: Compression Testing Machine: 100/200/30/1000/2000/3000KN
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Metallographic Equipments:cutting, mounting, polishing and grinding machine, microscopes.
1. Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.2. Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test force exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3.Main Specifications Block adjustment test space
