• Model NO.：YAW-1000D
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC 380V ,220V
• Oil Cylinder Position：Under
• Color：Gray, White , Blue,Green or Customized
• Resolution：0.01kn
• Distance Between Pressure Plate：320mm
• Distance Between Columns：280mm
• Pressure Plate：250*250mm , 270*270mm or Customized
• Transport Package：Standard Sea Shipping Case
• Specification：630*457*1410mm
• Trademark：HST or OEM
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Month

Overview Product Description

1. Application

Computer control compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.

2. Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
* Space adjusting way: Electric adjusting to realize the compression space adjusting
* Hydraulic system:The hydraulic oil in the oil box through the motor to drive the high pressure pump entering into the oil channel, flowing though one way valve, high pressure oil filter, differential pressure valve group,servo valve into the oil cylinder. The computer send out signal to the servo valve to control the servo valve openings and direction,in order to control the flow quantity into the cylinder and realize the constant speed test force control.

* Control system:
The system include the digital servo valve, high precision sensor, controller and software. High control precision, good reliable, meet the test GB,ISO,ASTM and other test standard of cement, mortar, concrete test requirement.

System function:
*. Force closed loop control function;
* Can realize constant force rate and stress rate loading
* Adopting computer to realize the electronic test, automatic test;
* Computer automatically calculating result and print report;

 Computer Control Automatic Compression Testing MachineModel  YAW-1000D   YAW-2000DYAW-3000DMax test force (kN)100020003000Control wayComputer automatically control test processTest force range (FS)200~2000kN300~3000kNTest value accuracy (%)Better than ±1%Test force resolution 0.01kNOil cylinder stroke50mm80mmMax distance between upper and lower plate320mm340Pressure plate250×250mm270×270mmDimension950×420×1350 mm1000×500×1500mmWeight850KG1300KGMotor power               2.0kW/ AC 380VCompany Profile

Our customers

Our exhibation

Certifications

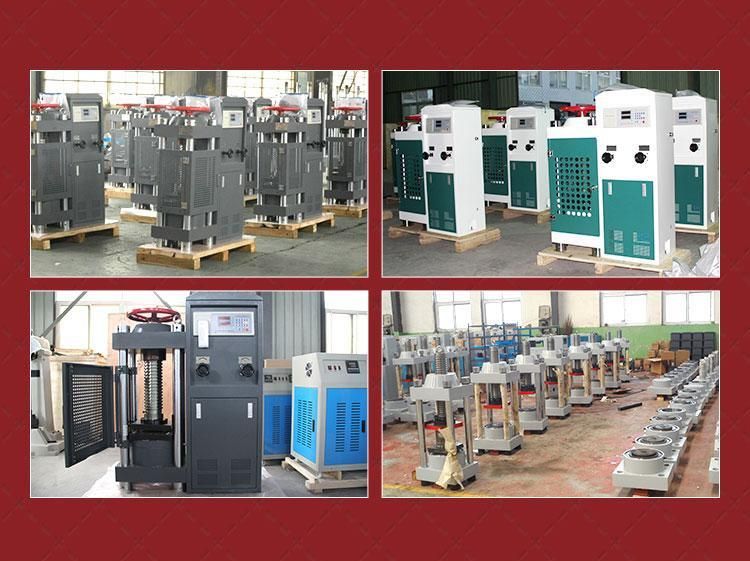

Packaging & Shipping



Contact

Tina



Our Business Scope
A: Universal Testing Machine: Electronic/hydraulic  WDS/WDW/WE/WEW/WAW
B: Impact Testing Machine:   150/300/250/500/750J
C: Compression Testing Machine:  100/200/300/1000/2000/3000KN
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Metallographic Equipments:cutting, mounting, polishing and grinding machine, microscopes.
