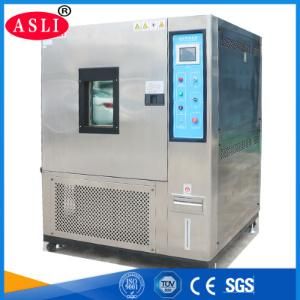

Vertical Type Stability Universal Temperature and Humidity Test Chamber
Ai Si Li (China) Test Equipment Co., Limited- Certification：CE, TUV, ISO
- Warranty：One Year
- Internal Dimension：W600*H850*D800mm
- Temperature：-60~150 C
- Humidity Range：20%~98%R.H.
- Analytic Accuracy：0.1 C
Base Info
- Model NO.：TH-408-E
- Exterior Material：Powder Coating
- Test Hole：Dia.50mm
- Transport Package：Wooden Case
- Specification：TH Series
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：8514109000
- Production Capacity：100 Sets,Month
Description
Constant Temperature Humidity ChamberModel TH-225(A~F) TH-408(A~F) TH-800(A~F) Internal Dimension WxHxD (mm) 600x750x500 600x850x800 1000x1000x800 External Dimension WxHxD (mm) 1200x1900x1150 1200x1950x1350 1600x2000x1450 Temperature Range Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC)
High Temperature 150ºC Humidity Range 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier) Indication relolution/ Distribution uniformity of temperature and humidity 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. Temperature Rising/ Falling Velocity Temperature rising approx. 0.1~3.0ºC/min ;
temperature falling approx. 0.1~1.0ºC/min;
( Falling Min.1.5ºC/min is optional) Optional Accessories Inner door with operation hole , Recorder, Water Purifier, Dehumidifier Compressor French Tecumseh Brand, Germany Bizer Brand
Vertical Type Stability Universal Temperature and Humidity Test Chamber Specifications
1. High performance and quiet operation(65 dBa)
2. Space-saving footprint, designed for flush installation to wall
3. Stainless steel exterior
4. Full thermal break around doorframe
5. One 50mm (2") to 100mm (4") diameter cable port on left, with flexible silicone plug
6. Three levels of overheat protection, plus overcool protection
7. Easy lift-off service panels, electrical access on left
8. Detachable eight-foot power cord with plug
9. Direct water supply connection for continuous operation (supply tank optional)
10. Touch-screen programmer/controller with Ethernet
11. Watlow F4T with touch-screen and Ethernet port standard
12. Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
13. One event relay for external device control, plus specimen power interlock relay for safety
14. Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-232 ports available, as well.

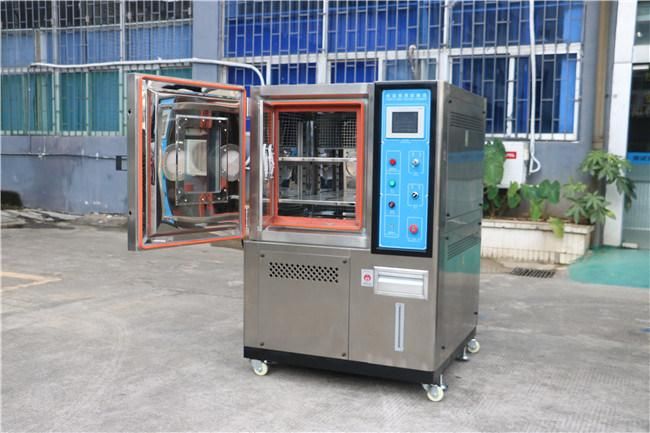

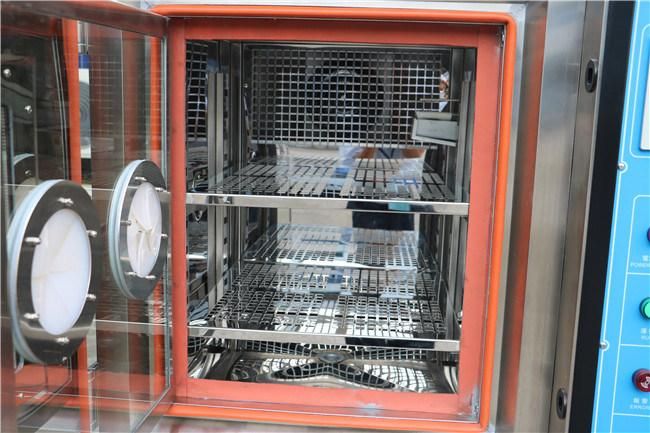

Pictures for reference:

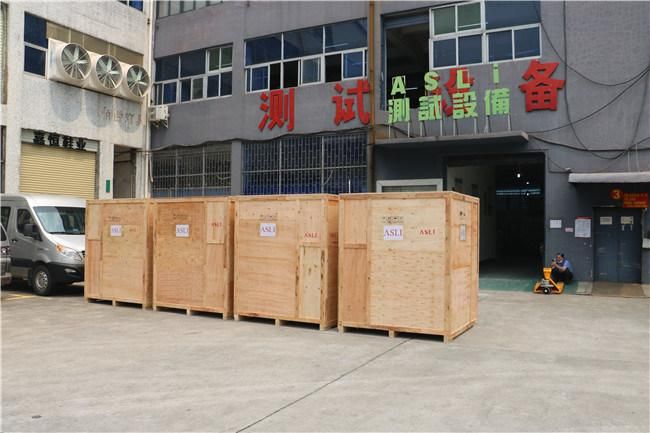

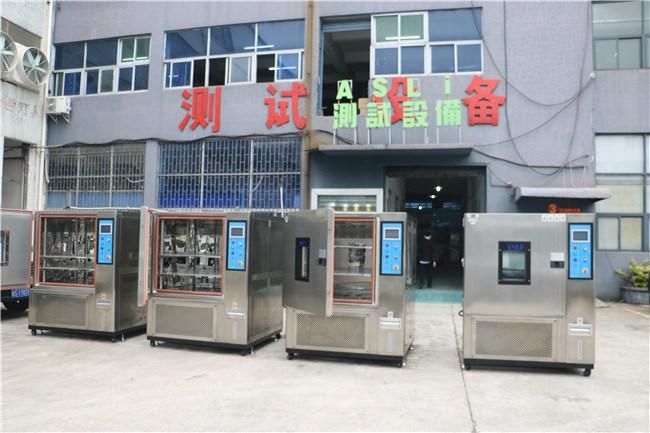

Our Company
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Vertical Type Stability Univerrsal Temperature and Humidity Test Chamber is our star products , and we had obtained the CE certification for this machine .
High Temperature 150ºC
temperature falling approx. 0.1~1.0ºC/min;
( Falling Min.1.5ºC/min is optional)
Vertical Type Stability Universal Temperature and Humidity Test Chamber Specifications
1. High performance and quiet operation(65 dBa)
2. Space-saving footprint, designed for flush installation to wall
3. Stainless steel exterior
4. Full thermal break around doorframe
5. One 50mm (2") to 100mm (4") diameter cable port on left, with flexible silicone plug
6. Three levels of overheat protection, plus overcool protection
7. Easy lift-off service panels, electrical access on left
8. Detachable eight-foot power cord with plug
9. Direct water supply connection for continuous operation (supply tank optional)
10. Touch-screen programmer/controller with Ethernet
11. Watlow F4T with touch-screen and Ethernet port standard
12. Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
13. One event relay for external device control, plus specimen power interlock relay for safety
14. Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-232 ports available, as well.
Pictures for reference:
Our Company
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Vertical Type Stability Univerrsal Temperature and Humidity Test Chamber is our star products , and we had obtained the CE certification for this machine .
