• Model NO.：THR-Volume
• Analytic Accuracy：0.1degree C; 0.1% R.H
• Uniformity：+,-2.5degree C; +,-3.5% R.H.
• Control Accuracy：+,-0.5degree C; +,-2.5% R.H.
• Cooling System：Water Cooling
• Transport Package：Wooden Case
• Specification：CE
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：300 Sets,Month

Technical Parameters:Model  THR-volume (low-temperature options : A ~ F)   Inner Dimensions(cm)  Customers designated space size and design  Temperature Range  Low Temperature(A:25degree C   B:0degree C   C:-20degree C  D:-40degree C
 E:-60degree C   F:-70degree C ) High Temperature 80degree C
(80degree C  ~150degree C  is optional) Humidity Range  20%~98%R.H.
(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) Indication Resolution/
Distribution Uniformity of
temperature & Humidity 0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H.  Control Accuracy of
Temperature and Humidity ±0.5degree C ; ±2.5% R.H. Temperature Rising/
Falling VelocityTemperature rising approx. 0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
(The Falling Velocity Min.1.0°C /min is a optional) Cooling System Water cooledProtection DevicesFuse-free switch, overloading protection switch  for compressor,high and
low voltage coolant protection switch, over-humidity & over-temperature protection
switch, fuses,  fault warning system, water short storage warning protection Optional Accessories Slope for cart , Recorder, Water Purifier, Dehumidifier Compressor French Tecumseh Brand, Germany Bizer Brand Power AC 380 V(±10%),50/60HZ ,3 phase  5 Lines

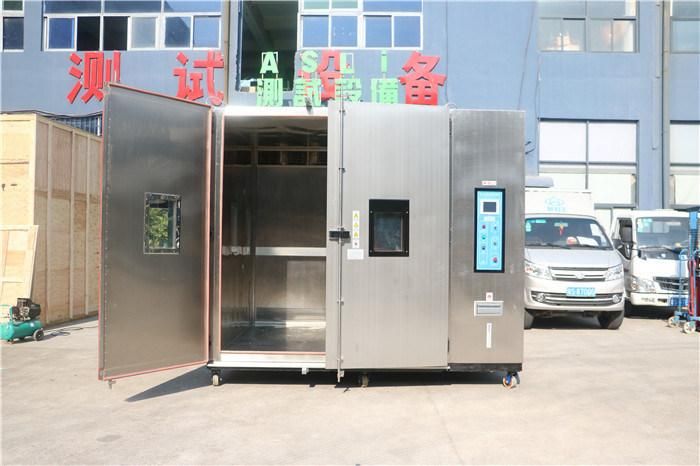

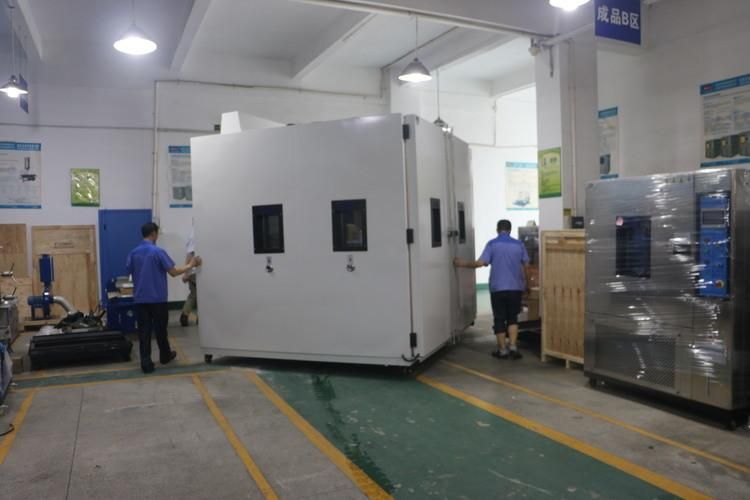

Pictures for reference:



To know more information about Customized Large Volume Climatic Temperature Humidity Test Room, pls feel free to send us your inquiry.We will try our best to support you.
