• Model NO.：ZCAR-702
• Accuracy Grade：0.2
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Power Supply：220V 50Hz
• Size：400*300*180mm3
• Output Voltage：4 Phases
• 3 Phase Parallel Current Output：0-120A
• Harmonic Time：0-20
• LCD Screen：320 X 240
• DC Current Output：0-10A , Phase, 0-30A , 3
• AC Line Voltage Output：0-240V
• Time Measuring Range：0.1ms - 9999s
• Transport Package：Aluminum Alloy Packing Box Inside Andwooden Box O
• Specification：20KG
• Trademark：KvTester
• Origin：China
• HS Code：9031809090
• Production Capacity：500,Month

Alternating current outputOutput accuracy0.5 magnitudePhase current output (effective value)0~40AThree parallel phase current output (effective value)0~120APhase current value with long time under permission (effective value)10APhase current maximum power output400VAThree parallel phase current maximum power output1000VAThree parallel phase current maximum work time10sFrequency range (base wave)20~1000HzHarmonic frequency number1~20 timeDirect current outputOutput accuracy0.5magnitudeCurrent output0~±10A/each phase, 0~±30A/every three parallelMaximum output of load voltage20VAlternating current outputOutput accuracy0.5 magnitudePhase voltage output (RMS)0~120VLine voltage output (RMS)0~240VPhase voltage/line voltage power output80VA/100VAFrequency range (base wave)20~1000HzHarmonic frequency number1~20 timesDirect voltage outputOutput accuracy0.5 magnitudePhase voltage output amplitude0~+160VLine voltage output amplitude0~+320VPhase voltage/line voltage power output70VA/140VAThe switch quantity and time measurementSwitch parameters input (7ways)Empty contact: 1~20mA, 24v
Power contact access: "0": 0~+6V; "1": +11V~+250VSwitch parameters output (2couples)DC: 220V/0.2A
AC: 220V/0.5ATime measurementMeasuring range: 0.1ms~9999s
Measuring accuracy: 0.1msVolume and weightAppearance and size400mm×300mm×180mmWeight of a single machine22kgWorking environmentSupply powerAC 220V±10%,50/60HzEnvironmental temperature-10ºC~+50ºC



Equipment Accessories List

Accesories ListUnitQuantityHost Set1Special test linesSet1PC control software CDpcs1Special USB serial portpcs2Aluminum alloy boxes pcs1User Manualpcs1Quality test reportpcs1Certificate of Originpcs1Fusepcssome

Why Choose us?

1) Owning core technology and advanced equipment with our own Technology Dept.;

2) On-line operation guidance and professional technical support ability.

3) Good quality can be ensured by our Professional QC team with competitive price.

   State Grid Corporation of China is one of our customer!

4) Certifications are available.

5) OEM Service Offered.

6) Design Service Offered.

7) Small trial order can be accepted to see our quality and service.

8) Standardization, effectiveness and timeliness of the pre-sale, in-sale and after sales service.

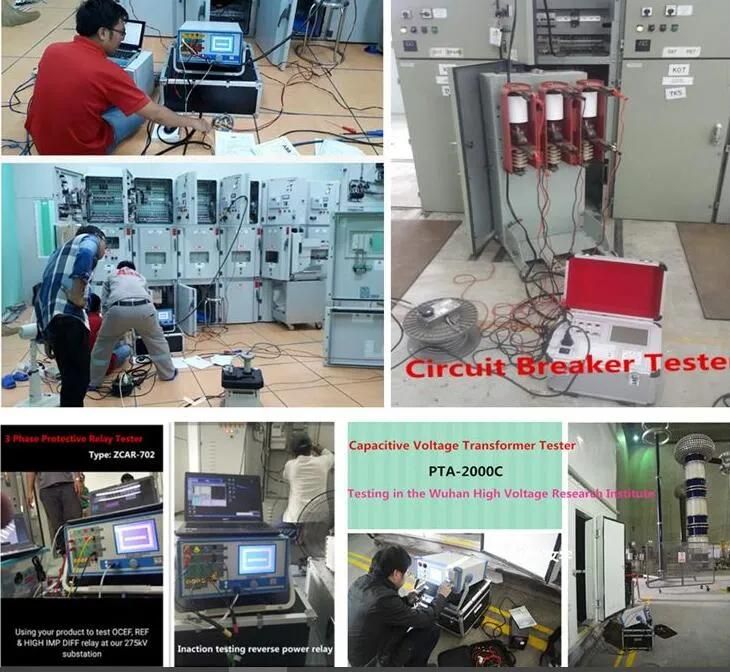

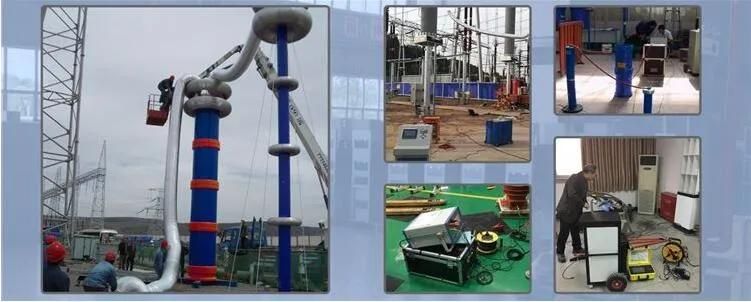

Field Test & Service

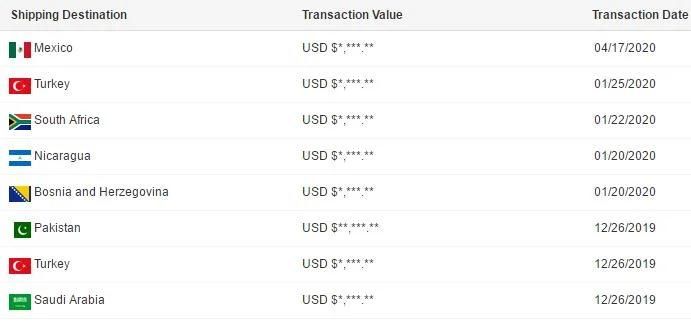

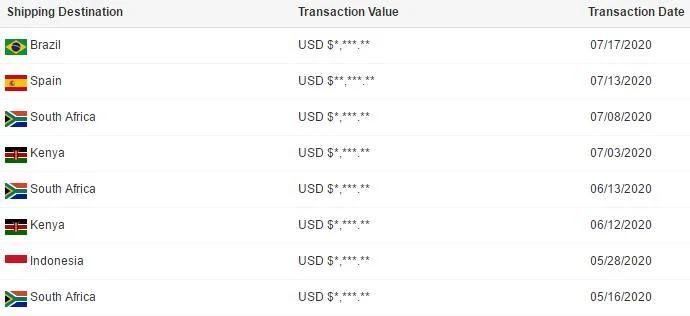

Transaction details
