• Model NO.：BJ-3
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC110V
• Oil Cylinder Position：Under
• Name：Bj-3 Tablet Disintegration Tester
• Nacelle up and Down Frequency：30-32,Min
• Automatic Time Range：1-900,Min
• Accuracy of Controlling Temperature：+-0.5 Degree
• Transport Package：Export Standard Wooden Case
• Specification：Meet GMP Standard
• Trademark：BSIT-GM
• Origin：Made in China
• HS Code：9027809000
• Production Capacity：7 Sets,Week

Basic Info.

Model NO. BJ-3 Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC110V Oil Cylinder Position Under Name Bj-3 Tablet Disintegration Tester Nacelle up and Down Frequency 30-32/Min Automatic Time Range 1-900/Min Accuracy of Controlling Temperature +-0.5 Degree Transport Package Export Standard Wooden Case Specification Meet GMP Standard Trademark BSIT-GM Origin Made in China HS Code 9027809000 Production Capacity 7 Sets/Week

Product Description

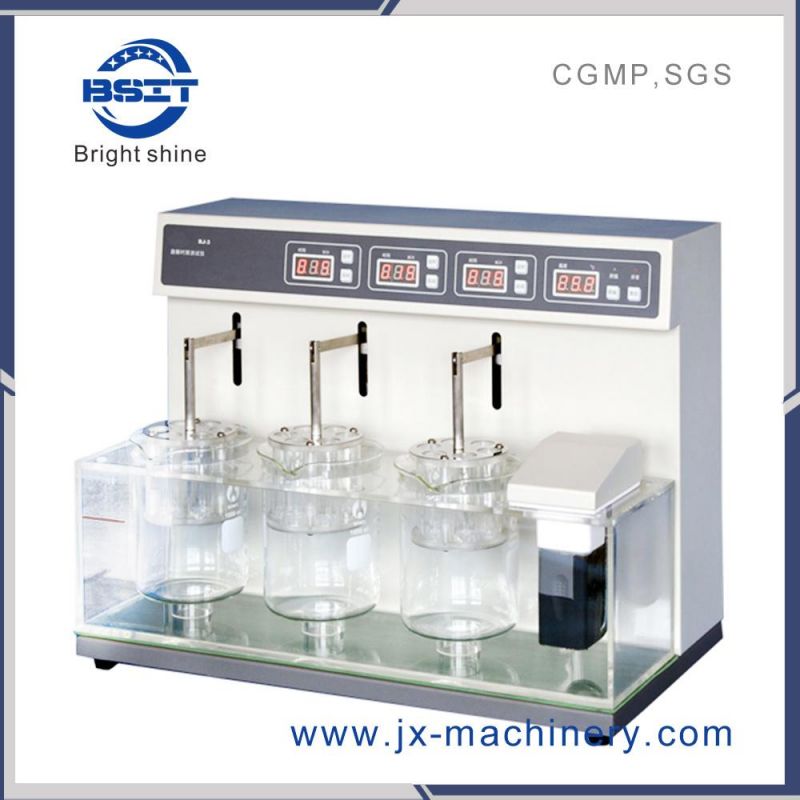

                                       BJ-3 DISINTEGRATION TESTER


Product Description:

BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.

Applicable standards:
National standard( Chinese codex ) /2015
Corporate standard(disintegration tester )Q/12XQ0188-2010

Features:
There are eighteen tubes in three basket assembly.
Each test station is driven independently. Auto stop at timing point.
The bath liquid can achieve an even temperature.
A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
Timing at will. The preset and real time data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.





Technical Parameter


Basket assembly	3pc
Glass tube of basket	18pcs
Flat bottom beaker volume	1000ml
Basket back and forth frequency	(30~32) /min
Basket back and forth range	(55±1)mm
Min. distance between sieves	(25±2)mm
Timing range	1-900 minute
Timing accuracy	±0.5min
Temperature preset range	20-45ºC
Accuracy of temperature control	±0.5ºC
Heating power	500W
Working time continuously	More than 24hours
Power	220V/50Hz 600W
Dimension	540×300×420mm3


 Carton package

Wooden Case for more than 3 sets of testers
