ASTM D4294 Fully Automatic Low Detection Automatic Sulfur in Oil Analyzer
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- After-sales Service:Online and Offline Service
- Warranty:2 Years
- Type:Universal Testing Machine
- Weight:0-100Kg
- Power Source:AC220V
- Total Sulfur Analyzer:Automatic Sulfur in Oil Analyzer
Base Info
- Model NO.:GD-17040
- Application Field:Petroleum Products, Coal, etc.
- Sulfur Analyzer:ASTM D4294, GB,T11140, GB,T 17040
- Xrf Sulfur Analyzer Measurement Range:Sulfur Content From 17ppm~5%
- Xrf Sulfur Analyzer Test Mode:Automatic
- Sample Quantity:2-3ml
- Price:Competitive
- Packing Size:51*43*27cm, 54*49*29cm
- Gross Weight:23kg
- Warranty Period:1 Year
- Transport Package:Packed in Veneer Case
- Specification:Refer to detailed description
- Trademark:GOLD
- Origin:Chongqing, China
- HS Code:9031809090
- Production Capacity:100 Sets, Month
Description
2Repeatability <0.029 ( S+0.6) Reproducibility <0.063 ( S+0.6) 3 Sample quantity 2~3ml (equal to sample depth of 3~4 mm) 4 Measurement time 60, 120, 240, 300, and 600 s at random 5 Calibration curve numbers 9. 5 of them are linear equation in one unknown and 4 of them are binomial parabola 6 Measurement times It can set 2, 3, 5, 10, and 50 times at random 7 Working Temperature 5~40C 8 Relative humidity ≤85% (30C) 9 Power supply AC 220V±20V, 50 Hz 10 Rated power 30 W 11 Size and weight 468 mm*368 mm*136 mm; 13 kg
Application:
1. The sulfur analyzer astm d4294 can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha.
2. The sulfur analyzer can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene.
3. It can be used to determine total sulfur or sulfide in other liquid or solid powder samples.
Introduction:
1. The xrf sulfur analyzer is specially designed to determine sulfur content in the petroleum products.
2. Adopts energy-dispersive principle, and with integrated design, it is rapid and accurate.
3. It can meet the requirements of National Standard GB/T 17040 and GB/T11140 on repeat-ability and reproduction, and it can also meet requirements of ASTM D4294-03 on these indexes.
4. The total sulfur analyzer provides a measure to determine sulfur content during petroleum or petrochemical production process.
Characteristics:
1. Electromechanical integration; microprocessor control; large screen LCD display; Man-machine conversation; simple and beautiful;
2. The Sulfur in Oil Analyzer can determine various products and in a wide measurement range. It is rapid for analysis and it only need little standard sample.
3. Adopts fluorescence intensity ratio analysis methods, it can make correction to temperature and pressure automatically and
it can also make correction to ratio of carbon and hydrogen (C/H).
4. The total sulfur analyzer has self-diagnostic function, so it can determine its working state and electric parameters.
5. It takes disposable sample cell with Mylar film, so it can avoid cross contamination. Sample cell is made by a multi-function pressure device, so it is rapid and convenient. It can record sample serial number, S% (m/m), and date.
6. The sample holder can be precisely located. It can move out from inside of the instrument for sample location and anti-leakage parts replacement. It is convenient and it can avoid any contamination to detection system.
7. It can save large quantity of test data. You can browse test data and calibration curve at any time.
8. It uses a thermal printer, so it is easy to replace printing paper. It is needed to speed money on printing ribbon.
9. Equipped with a RS232 serial port, it can connect with any computer or web system.
10. Its safe X-ray protection measures can keep people from injury of X-ray radiation.

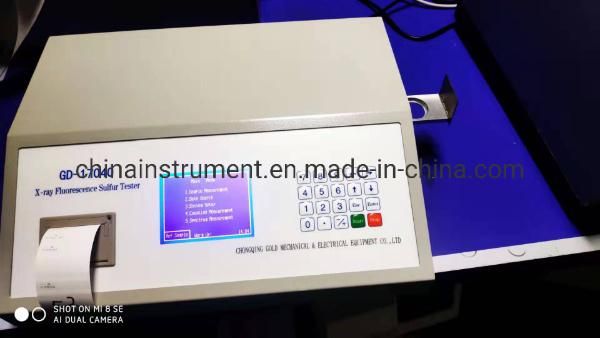

Real Pictures of ASTM D4294 XRF Sulfur in Oil Analyzer for xrf sulfur analysis
