• Model NO.：ES Series
• Power Source：AC380V
• Rated Random Force (N)：1000 to 3500000
• .Frequency Range (Hz)：3 to 3500
• Rated Acceleration(M/S2)：400 to 1000
• Rated Velocity(M/S)：1.2 to 1.8
• Rated Displacement (P-P, mm)：25 to 51
• Max.Loading(Kg)：70 to 4500
• Vibration Direction：Vertical Transverse Longitudinal
• Application：Battery
• Transport Package：Wooden Case
• Specification：ES Series
• Trademark：ASLi
• Origin：Guangdong China
• HS Code：85141090
• Production Capacity：30 Set,Month

Basic Info.

Model NO. ES Series Power Source AC380V Rated Random Force (N) 1000 to 3500000 .Frequency Range (Hz) 3 to 3500 Rated Acceleration(M/S2) 400 to 1000 Rated Velocity(M/S) 1.2 to 1.8 Rated Displacement (P-P, mm) 25 to 51 Max.Loading(Kg) 70 to 4500 Vibration Direction Vertical Transverse Longitudinal Application Battery Transport Package Wooden Case Specification ES Series Trademark ASLi Origin Guangdong China HS Code 85141090 Production Capacity 30 Set/Month

Product Description

Vertical Transverse Longitudinal Vibration Testing Electrodynamic Vibration Shaker System

 Application:
We are manufacturer of Vertical Transverse Longitudinal Vibration Testing Electrodynamic Vibration Shaker System series products, adopted the 'double-magnetic circuit structure',' selfgenerated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology,  can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical(half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications,  electronics,electrical appliances, communications, home appliances and other fields.


Electrodynamic Vibration Shaker System Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.

Magnetic Vibration Testing Machine Parameter:

Model	Rated Sine Force (N)	Rated  Random  Force (N)	Frequency Range (Hz)	Rated  Acceleration   (m/s2)	Rated  Speed (m/s)	Rated  displacement (p-p)mm	Max.  Loading  (Kg)	moving  coil(Kg)	Dimension of Moving coil (mm)
ES-1	1000	1000	3-3500	400	1.2	25	70	2.5	Φ150
ES-2	2000	2000	3-3500	800	1.6	25	70	2.5	Φ150
ES-2a	2000	2000	3-3500	300	1.6	40	70	8	Φ230
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450
ES-120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ500
ES-160	160000	160000	3-2100	1000	1.8	51	1500	150	Φ600
ES-200	200000	200000	3-2000	1000	1.8	51	2500	200	Φ650
ES-350	350000	350000	3-1700	1000	1.8	51	4500	300	Φ870

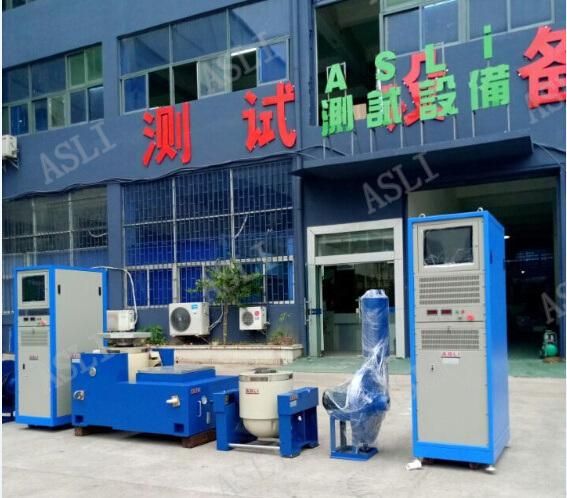

Vertical Transverse Longitudinal Vibration Testing Electrodynamic Vibration Shaker System Pictures :
