• Model NO.：SS1061
• Power Source：DC 100V-300V
• Weight：0-10Kg
• Installation：Direct Connected
• Customized：Non-Customized
• Test Frequency：40Hz~200kHz
• Basic Measurement Accuracy：0.1%
• L：0.0001uh~1999h
• C：0.0001PF~199.99mf
• Z：0.0001~199.99m
• Q/D：0.0000~10000
• Testing V：10mv~1.0V, 10mv,Step,
• Transport Package：Standard
• Specification：SS1061
• Trademark：SanShine
• Origin：China
• HS Code：9001909001
• Production Capacity：6000

Overview Detailed Photos



Product Description

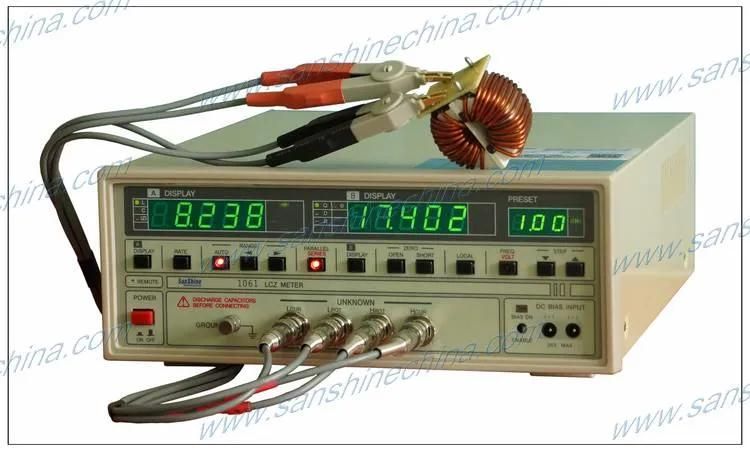

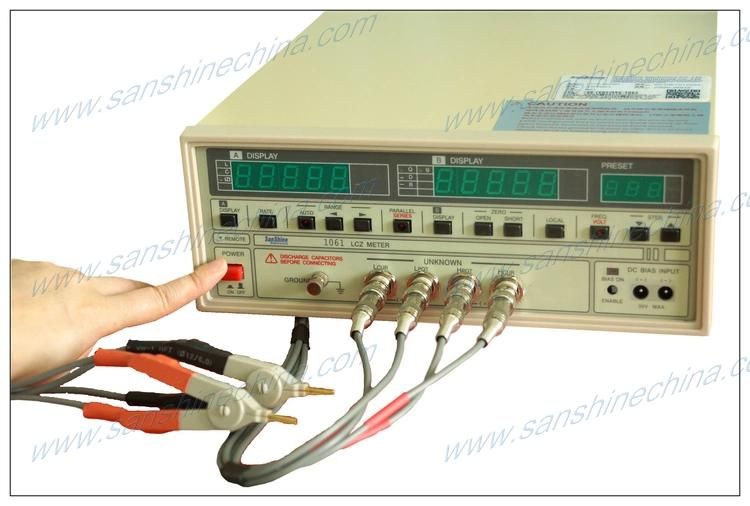

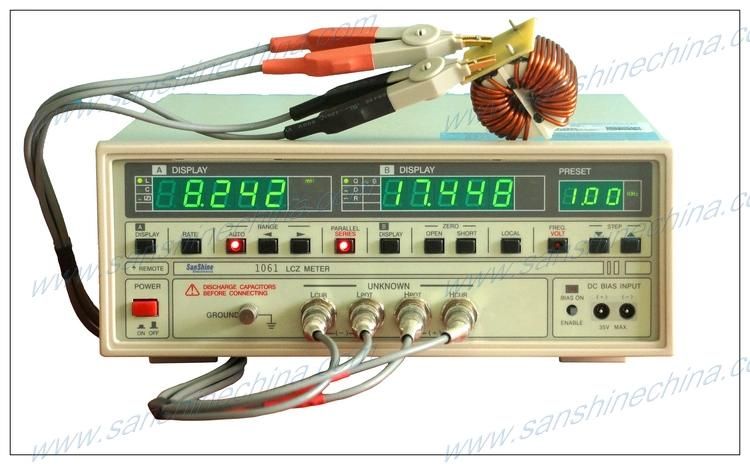

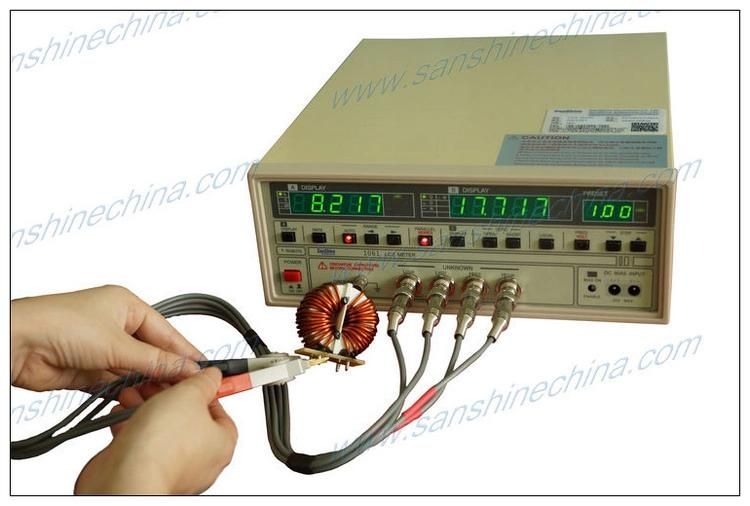

SS1061/1062/1063 LCZ Meters are a test system for passive components designed for the use in electronic inspection or production process for quality control. They meet any demanding requirement on production speed and precision, discrimination of qualified products from unqualified ones, as well as internal setup, storing and calling function for up to 10 instrument groups, so they are actually optimum test instruments for component incoming and production inspection.

*Key Features:
Test frequency: 40Hz~200kHz
Basic measurement accuracy: 0.1%
Single-function Keys, LED display, easy to operate
LCR Nominal Value, Upper Limit%, Lower Limit%, Q/D/R/E Limit thumb switches setting(1062 only).
10 internal Instrument setups store/recall capability(1063 only)
L: 0.0001uH~1999H; C: 0.0001pF~199.99Mf; Z: 0.0001Ω~199.99MΩ; Q/D: 0.0000~10000
θ : -180deg; ~+179.99deg; ESR: 0.0001MΩ~19999kΩ,
Testing V: 10Mv~1.0V, 10mV/step,

*Order Items:
1061
1062
1063

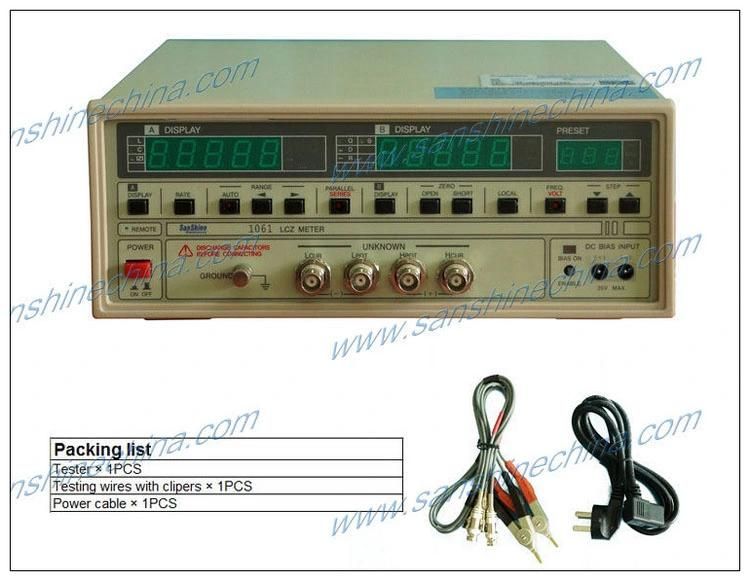

4-terminal test fixture
Test pen
Test box
SMD test wire

*Order project:
1061
1062
1063
Four-terminal Test Clamp
Test Pen
Test Box
SMD Test CableTest parameter
 Main display
 L  , C,   R, Z
 Subaltern display
 Q  , D  , ESR  , θ
 Meas. signal
 Meas. Level
 10mV~2.5V, 10mV/step
 Meas. Frequency
 40HZ~200KHZ
 Frequency accuracy
 ± 0.15%
 Out impedance
 25Ω ± 5%  , 100Ω ± 5%  , 50Ω ± 5%  , 2Ω ± 10%(load impedance ≥ 10Ω )
 Meas. Range
 Main parameter
 L(0.00001uH ~ 9999.99H), C(0.0001pF~9999.9mF)                                                                                                                                                                                                                                   R(0.0001mΩ ~9999.9MΩ ), Z(0.0001mΩ ~9999.9MΩ )
 Subaltern parameter
 Q, D(0.0001~9999.9), θ (-90.00° ~90.00° ), Δ %(0.0001%~99999%)
 Base accuracy
 0.10%
 Meas. speed  ( 1KHZ )
 Best fast
 13Meas. /S
 Fast
 10Meas. /S
 Middle
 5Meas. /S
 Slow
 1Meas. /S
 Trigger
 internal
 internal, external, manual
 Display
 L, C, Z, R
 5pcs digitals
 Q, D, R, θ
 5pcs digitals
 Frequency, level
 3pcs digitals
 Q, D, R, θ
 5pcs digitals
 DC base
 DC: 0~35V
 Revising function
 open, short
 Equivalent circuit model
 series  , parallel
 Automatic judgement

 pass or fail
 Memory

 10terms setup
 Common spec.
 Environment
 temperature  : 10  º C ~ 40  º C, humidity  : 10%~90%RH
 Power consuming
 Max. 55W
 Power
 90~125V or 190~250V, 48HZ~62HZ
 Weight
 ≈ 5.5Kg
 ≈ 6.5Kg
 Meas.   ( W× H× L  )
 270× 105× 350mm
 405× 130× 365mm
