• Model NO.：YG(B)022E
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Test Method：2
• Length Resolution：0.01mm
• Test Gauge Gauge：250X50mm
• Test Platform Size：250X50mm
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. YG(B)022E Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Test Method 2 Length Resolution 0.01mm Test Gauge Gauge 250X50mm Test Platform Size 250X50mm Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

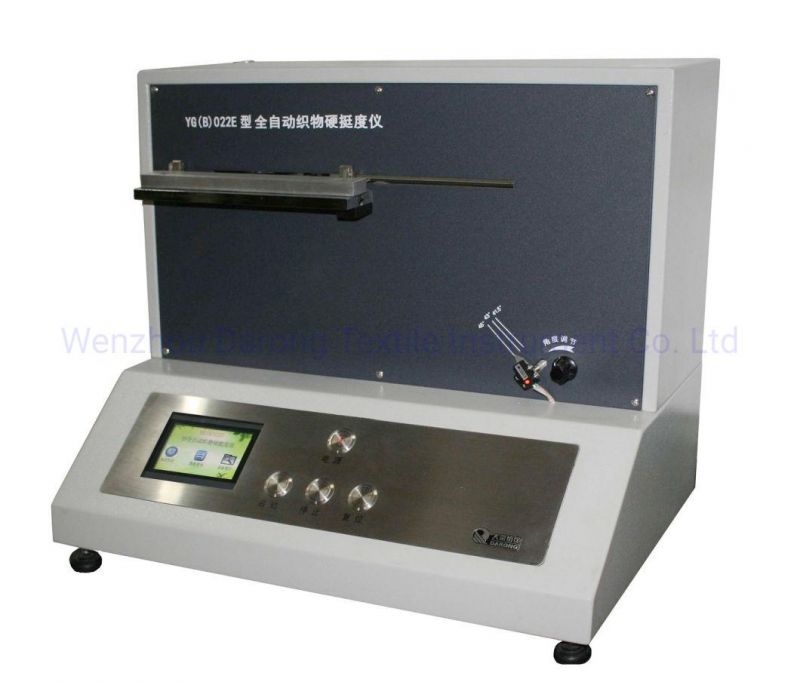

YG(B)022E    automatic fabric stiffness tester
[Scope of application]
Used for the stiffness determination of cotton, wool, silk, hemp, chemical fiber and other kinds of woven fabric, knitted fabric and general non-woven fabric, coated fabric and other textiles, but also suitable for the stiffness determination of paper, leather, film and other flexible materials.

[Related standards]
 GB/T18318.1, ASTM D 1388, IS09073-7, BS EN22313
[ Instrument characteristics ]
1, infrared photoelectric invisible incline detection system, instead of the traditional tangible incline, to achieve non-contact detection, overcome the problem of measurement accuracy due to the sample torsion is held up by the incline;
2, instrument measurement angle adjustable mechanism, to adapt to different test requirements;
3, stepper motor drive, accurate measurement, smooth operation;
4, color touch screen display, can display the specimen extension length, bending length, bending stiffness and the above values of meridian average, latitude average and total average;
5, thermal printer Chinese report printing.
[ Technical parameters ]
1, test method: 2
(A method: latitude and longitude test, B method: positive and negative test)
2, measuring Angle: 41.5°, 43°, 45° three adjustable
3, extended length range: (5-220)mm (special requirements can be put forward when ordering)
4, length resolution: 0.01mm
5, measuring precision: ±0.1mm
6, test sample gauge :(250×25)mm
7, working platform specifications :(250×50)mm
8, sample pressure plate specification :(250×25)mm
9, pressing plate propulsion speed: 3mm/s; 4mm/s; 5mm/s
10, display output: touch screen display
11, print out: Chinese statements
12. Data processing capacity: a total of 15 groups, each group ≤20 tests
13, printing machine: thermal printer
14, power source: AC220V±10% 50Hz
15, main machine volume: 570mm×360mm×490mm
16, main machine weight: 20kg










Technical parameters]

Test method	Extended length range	Length resolution
2	5-220mm	0.01mm
