Sieve Shaker
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece：300mm
- Control：Manual Control
- Weight：56kg
- Power Source：AC220V
- Timer：up to 60 Minutes
- Standard：ISO 565
Base Info
- Model NO.：STSJ-4A
- Transport Package：Plywood Case
- Specification：53x54x88
- Trademark：YF
- Origin：China
- HS Code：9031809090
Description
Basic Info.
Model NO. STSJ-4A Transport Package Plywood Case Specification 53x54x88 Trademark YF Origin China HS Code 9031809090Product Description

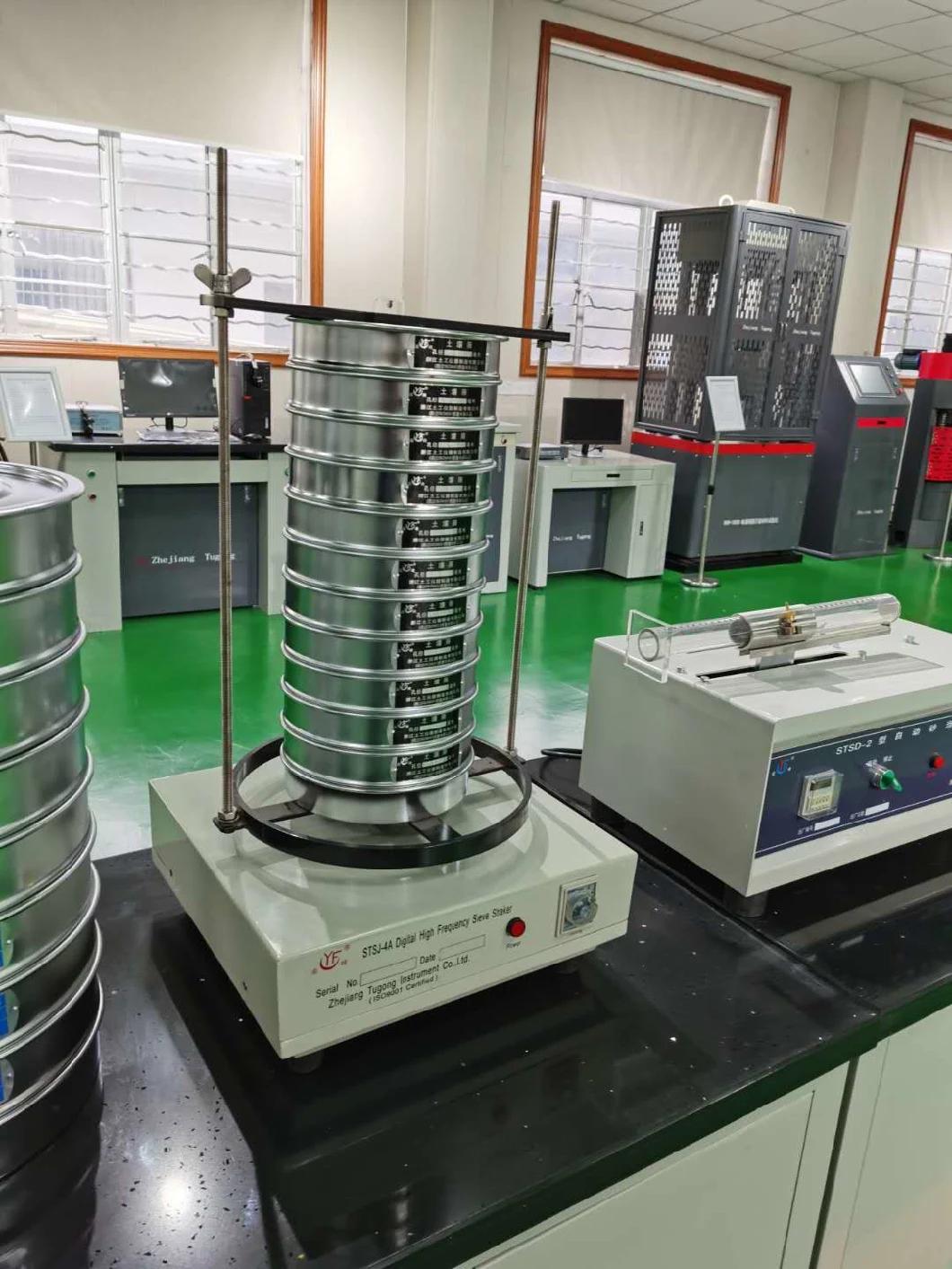

Sieve ShakerApplication: The high frequency Sieve Shaker is mainly used to grading analysis of Non-cohesive grain soil materials.
II. Structure
It is consisted of framework supporting components, shaking table parts, vibration motor and supporting feet components, switch timing control circuit etc.
Soil Aggregate Sample Grading High Frequency Sieve Shaker
The unit accepts up to nine 200 mm or 8 inch, full height, diameter sieves and lid and receiver, or up to seven 300 mm or 12 inch diameter sieves and lid and receiver.
Specification:
| Vibration frequency | 42HZ |
| Vibration mode | Upper and down ways |
| Vibration amplitude | 1.5mm |
| Regular time | 0-60min can choose |
| Vibrating motor power | AC220V,25W |
| Choose standard analytical sieve specifications | 200*50mm (9 level)or 300*75mm(7level) |
