DC Outpust Sweep Measurement Source Meausurement Unit Keysight B2901A Similar Soucemeter P300 Smu Instrument

Wuhan Precise Electronic Technoligy Co., Ltd.
  • After-sales Service：1 Year
  • Function：Test
  • Display：Digital
  • Usage：Electric Component Tester, Gas Sensor Tester, Semiconductor Materials Test
  • Type：Electrolytic Capacitor Leakage Current Tester
  • Environment：Room Temperature

Base Info

  • Warranty：With Warranty
  • Power Source：AC 85V-265V
  • Weight：0-10Kg
  • Installation：Portable Precise
  • Customized：Customized
  • Transport Package：Carton Box
  • Specification：106*255*425mm
  • Trademark：Precise
  • Origin：China
  • HS Code：9030339000
  • Production Capacity：100PCS,Month

Description

  • Measure
     Range
     Programming resolutionAccuracy±(% rdg.+ V)Programming resolutionAccuracy±(% rdg.+ A)100nA10pA0.1%±0.5nA10pA0.1%±0.5nA1uA100pA0.1%±3nA100pA0.1%±3nA10uA1nA0.1%±5nA1nA0.1%±5nA100uA10nA0.1%±50nA10nA0.1%±50nA1mA100nA0.1%±300nA100nA0.1%±300nA10mA1uA0.1%±5uA1uA0.1%±5uA100mA10uA0.1%±20uA10uA0.1%±20uA1A100uA0.1%±2mA100uA0.1%±2mA3A300uA0.1%±3mA300uA0.1%±3mA10A1mA0.1%±5mA1mA0.1%±5mA
    Pulse technical parameters:

    Max currentMax pulse widthMax duty ratio
    100mA@300VDC,no limit100%
    1A@30VDC,no limit100%
    1A@300V5mS3%
    3A@100V10mS5%
    10A@30V1mS5%
    Supplement: min programmable pulse width is 200us, and its figure is higher in some part pulse range. Pulse width programmable resolution is 20us, pulse width accuracy is ±10us. programming.


    Other technical parametes:
    Source range: in DC mod, max output power is 30w; in pulse mode, the max output power reach300w. Four-quadrant source mode or hydrazine mode.;
    Over range: 105% range, source and measurement
    Stable load capacitance: <22nF
    Broadband noise (20MHz) : 3mV RMS (typical value), <20mV vp-p (typical value)
    Max voltage between FORCR HI and SENSE HI is 3V;
    Max voltage between FORCR LO and SENSE LO is3V;
    Cable protection voltage: output impedance 1K ω, output voltage offset <10mV
    Max sampling rate: 100000 S/ s
    Trigger: support IO trigger input and output, trigger polarity can be configured;
    Output interface: panel interface;
    Communication connector: RS - 232, GPIB, LAN;
    Power:AC 100~240V 50/60Hz;
    Working environment:25±10ºC;
    Size:106mm(high)× 255mm(width)× 425mm(length);
    Warranty:1year;

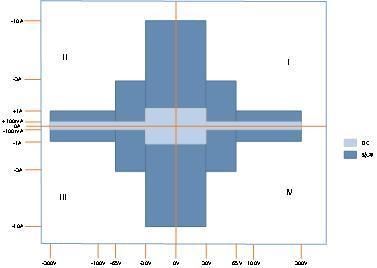

    Pulse Source meter P300 Working Quadrant Diagram

    DC Outpust Sweep Measurement Source Meausurement Unit Keysight B2901A Similar Soucemeter P300 Smu Instrument




    Applications

    1. Nanometer material properties test, graphene, nanowires, etc
    2. Organic material property test, electronic ink, printing of electronic technology, etc
    3. Energy and efficiency test: LED / AMOLED, Solar cells, DC-DC converters, etc .
    4. Discrete semiconductor devices feature test, resistor, diode, light emitting diodes, zener diodes, the PIN diode, BJT transistor, MOSFET, SIC, etc
    5. Sensor characteristic test: Resistivity, Hall effect, etc

    Factory
    DC Outpust Sweep Measurement Source Meausurement Unit Keysight B2901A Similar Soucemeter P300 Smu Instrument
    DC Outpust Sweep Measurement Source Meausurement Unit Keysight B2901A Similar Soucemeter P300 Smu Instrument


    FQA:1. Q:Precise is direct factory or trade company?A: Precise is a factory, and all the SMU R&D are Precise team and manufactured by Precise.
