Test Instrument

Xenon Arc Lamp Aging Test Chamber for Solar Simulation Test

Sailham Equipment (Dongguan) Co., Ltd.
  • Certification:Ce, RoHS, FCC, ISO, SGS Certificates
  • Humidity Range:30%~98% Relative Humidity
  • Temperature Range:0 Degree~80 Degree
  • Service:OEM , ODM , Non-Standard Available
  • Application:School, Hospital, Lab, Factory
  • Power Supply:AC220V,AC380V, Customized

Base Info

  • Model NO.:ZH-XLW-150
  • Interior Sizes:W500×d500×h600mm
  • Wave Length Range:290-800nm
  • Black Panel Temp.:85 Degree
  • Light Source:Imported Full Spectrum Xenon Arc Lamp
  • Transport Package:Wooden Case
  • Specification:Customization available
  • Trademark:Sailham
  • Origin:Guangdong, China
  • HS Code:8479899990
  • Production Capacity:5000sets,Year

Description

ModelZH-XLW-150Interior sizes  W500×D500×H600mm or other sizesExterior sizesW1050×D1050×1750mm (or so)Temp. range0ºC~80ºCControllerimported programmable 7inch touch screenMaterialinner and outer 304# stainless steelSample holderAluminum alloy frame baseProtection deviceresidual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection.Temp. deflection±2ºC  (without lighting)Humid. range30%~98%R.HHumid. deflection±2.5%R.H(Humid.≥75%R.H); ±3%R.H(Humid.≤75%R.H)(without lighting)Light sourceimported full spectrum xenon arc lamp(average useful life 1600hrs)Raining time1~9999min (adjustable)Raining period1~240min, interval(cut)adjustablelamp powerTest period for Temp., irradiation, condensation, spray can be adjustableLamp1.8KWWave length range290-800nmheating power (or so)4.0KWhumidification (or so)2.0KWLight irradiance1200w/m2Distance between arc center and sample holder:350~380mmRevolving speed of sample holder≥1r/minWater spray perioda. spray time: 0~99h59min (Continuing or adjustable)
b. stop time: 0~99h59min, (Continuing or adjustable)
Lighting timeContinuing programming control availableBlack panel temp.85±3ºCCooling methodMechanical wind cooling; Room temp. less than 26ºC is recommend, relative humid: ≤85%R.H; humid. and temp. tested after 2 hours under idle condition.
Product image

Xenon Arc Lamp Aging Test Chamber for Solar Simulation Test




Our Company

Xenon Arc Lamp Aging Test Chamber for Solar Simulation Test



Xenon Arc Lamp Aging Test Chamber for Solar Simulation Test




Company profile
With more than 17 years of experience.
Sailham is a leading manufactuer that specializes in manufacturing and marketing the cost effective& nbsp;and reliable environmental test chambers. Our main products includes:environmental test equipment and mechanical/optical equipment,such as:programmable constant temperature humidity test chamber, high - low temperature cycling test chamber,thermal shock test machine(2zone or 3zone)...

Sailham have got the international advanced ISO9001: 2015 quality management system certification,FCC certification, RoHS certification and SGS/BVcertification and also got the national, high-tech enterprise certificate.
Sailham work with many greatest company in the different industries in the world and provied the professional service.

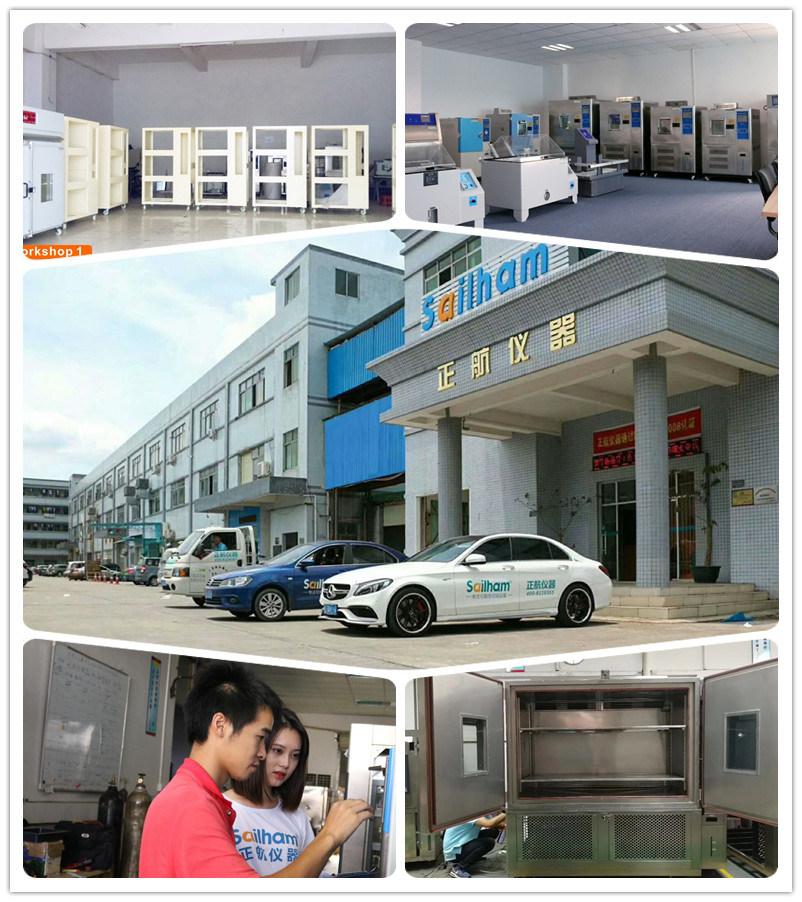

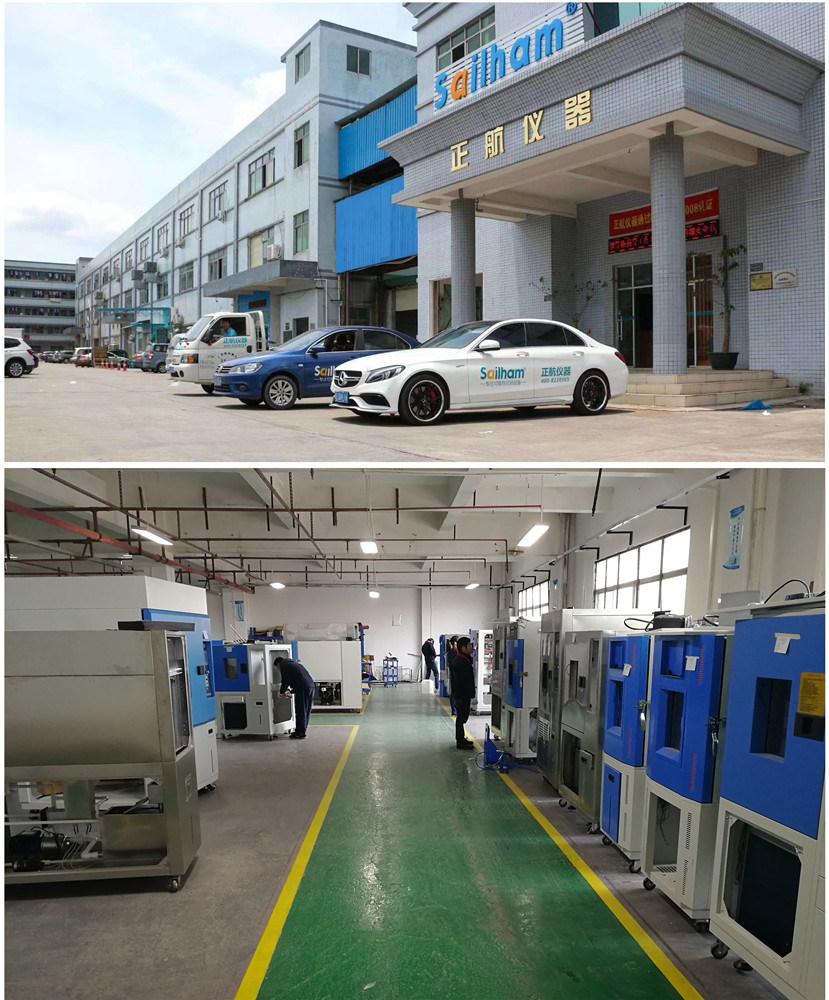

Our Factory


Xenon Arc Lamp Aging Test Chamber for Solar Simulation Test

Xenon Arc Lamp Aging Test Chamber for Solar Simulation Test




FAQ

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.


Q: How to Choose a proper chamber?
A: Please let us know the product to be tested, include the max. size, the quantity per test, lowest shock temperature required and power-on test (mainly for electronic products or device) needed or not. We will provide several models to you for reference, the specification sheet in detail will be provided ASAP.

Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard Environmental Chambers, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.



Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory



Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: What's the delivery term?
A: If we don't have any units in stock. normally, the delivery time is 25 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box (fumigation-free wooden case) for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.

Q: Do you have any certificates for this chamber or for your company?
Yes, we got CE, RoHS and FCC certificates for the normal models. Sailham have also got the SGS and BV certificated, have passed ISO 9001: 2015.
