• Model NO.：KTS-300A
• Exterrior Dimension(W*H*D)：1850*2200*2500mm
• High Temp. Chamber：+60 Oc~+200 Oc
• Low Temp. Chamber：-55 Oc~-10 Oc
• Pre-Heat Time：+60 Oc~+200 Oc Within 20mins
• Pre-Cold Time：+20 Oc~-55 Oc Within 60mins
• Recovery Time(High Temp.)：Exposure 30mins
• Recovery Time(Low Temp.)：Exposure 30mins
• Recovery Time/ Conversion Time：Within 5 Mins
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and customized, ISO9001, SGS, CE, TUV, UL
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Yesr

Model

KTS-B Series

72B

100B

150B

200B

252B

300B

480B

Inside size(mm)

W

450

500

600

670

700

800

800

H

400

450

500

600

600

600

800

D

400

450

500

500

600

650

750

Outside size(mm)

W

1490

1540

1640

1720

1750

1850

1850

H

1790

1840

1890

2000

2000

2000

2200

D

1600

1700

1830

1850

1930

1980

2500

Test weight(KG)

5

10

12

15

18

20

20

Low Temp. chamber

 -70ºC~-10ºC, Pre-cooling time: +20ºC~-70ºC,≤ 60 min

Test. Chamber

 -55ºC~+150ºC

High Temp. chamber temperature

 +60ºC~+200ºC, Preheating time: ≤20 min

Transition time

≤15S

Recovery time

High-Temp Exposure 30 min to reach & stabilize the required hot temp of the test sample

Low-Temp Exposure 30 min to reach & stabilize the required cold temp of the test sample

≤ 5 min

Ambient Temp.

+5ºC~+35ºC

Power

AC 380±10% 50Hz,3 phase 4 wires +Ground Wires

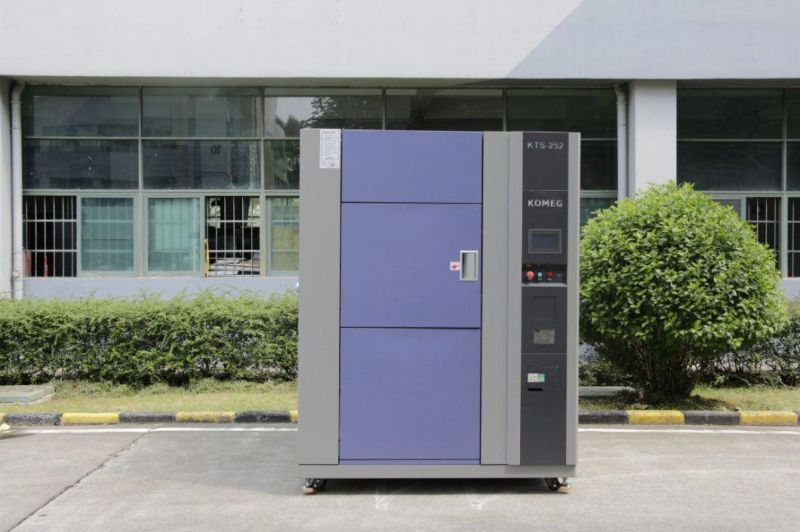

Product Details Picture:


KOMEG FAQ:

Q1. Quality Control System?
A: KOMEG Technology Ind Co., Ltd strictly perform 6S rule, and apply the ISO9000 and ISO14001 Quality control system and strictly carry out in every production stage: from the materials and spare parts suppliers selecting, checking before stocking, to test chambers commissioning, packing, delivery.

Q2. KOMEG Technology Ind Co., Ltd Product Range?
A: KOMEG can supply environmental simulation test chambers, climatic test chamber, thermal cycling test chamber, thermal shock test chamber, walk-in test chamber, temperature humidity vibration three-in-one test chamber, temperature humidity salt-spraying test chamber, industrial drying oven, altitude test chamber, salt spray test chamber, rain chamber,  dust chamber, xenon lamp weathering test chamber, UV weathering test chamber, large volume customized walk-in test chamber, etc.

Q3. Main Markets:
A: English and Russian markets like Asia, Europe, Oceania, America;
Mainly customers are from industries of electronics, materials testing labs, battery, automotive, LED, Solar panels, etc.
