• Model NO.：EPOT
• Display：LCD
• Control：Computer Control
• Weight：38kg
• Power Source：220V or 120V at Customized
• Keywords：Insulating Oil Breakdown Bdv Tester
• Power Supply：AC 220V 50 Hz
• Test Voltage：AC 0-100kv (60kv,80kv at Option)
• Voltage Boosting Rate：2.0 Kv,S, 3.0 Kv,S(Selectable)
• Error：0.2kv,S
• Power Distortion：Less 1%
• Electrodes Gap：2.5mm
• Standing Time：The Default Value Is 15 Min
• Interval Time：The Default Value Is 5 Min
• Stirring Time：The Default Value Is 10 S
• Boosting Voltage：The Default Value Is 100 Kv
• Power Consumption：300va
• Environmental Temperature：0-35c
• Relative Humidity：Less Than 75%Rh
• Volume：730 mm*410 mm*390 mm
• Transport Package：Plywood Case
• Specification：CE,ISO,IEC
• Trademark：EP Hipot Electric
• Origin：Wuhan, China
• HS Code：9030899090
• Production Capacity：1000,Year

Basic Info.

Model NO. EPOT Display LCD Control Computer Control Weight 38kg Power Source 220V or 120V at Customized Keywords Insulating Oil Breakdown Bdv Tester Power Supply AC 220V 50 Hz Test Voltage AC 0-100kv (60kv/80kv at Option) Voltage Boosting Rate 2.0 Kv/S, 3.0 Kv/S(Selectable) Error 0.2kv/S Power Distortion Less 1% Electrodes Gap 2.5mm Standing Time The Default Value Is 15 Min Interval Time The Default Value Is 5 Min Stirring Time The Default Value Is 10 S Boosting Voltage The Default Value Is 100 Kv Power Consumption 300va Environmental Temperature 0-35c Relative Humidity Less Than 75%Rh Volume 730 mm*410 mm*390 mm Transport Package Plywood Case Specification CE/ISO/IEC Trademark EP Hipot Electric Origin Wuhan, China HS Code 9030899090 Production Capacity 1000/Year

Product Description

China Suppliers 0-80kV 0~100kV Transformer Insulating Oil Dielectric Strength Oil BDV Tester Price
Single test cell/three test cells/six test cells is at buyer's option.
I. General Information:
EPOT-3A is the new generation of oil dielectric tester, which designed with 3 oil vessels could test at same time. The user only needs to select test procedure or user defined procedure, it can complete the whole test procedures automatically, and save & print the test report.

EPOT-3A can be used for power frequency withstand test on the transformer oil, capacitor oil, electric device, insulation tool, electric manufacturer etc. It's widely used in the fields of power system, petroleum, chemical industry, railway station, power station, electric manufacturer etc.
Voltage range: AC 0~ 100kV.
Also called: Insulation Oil Breakdown Tester, Transformer Oil Dielectric Strength Tester.
II Features:

• Self-detecting function. The regulator could return to zero start automatically.
• Controlled a large capacity single chip microcomputer, which is stable and reliable.
• The wide range watchdog circuit is set in the tester to prevent the crash.

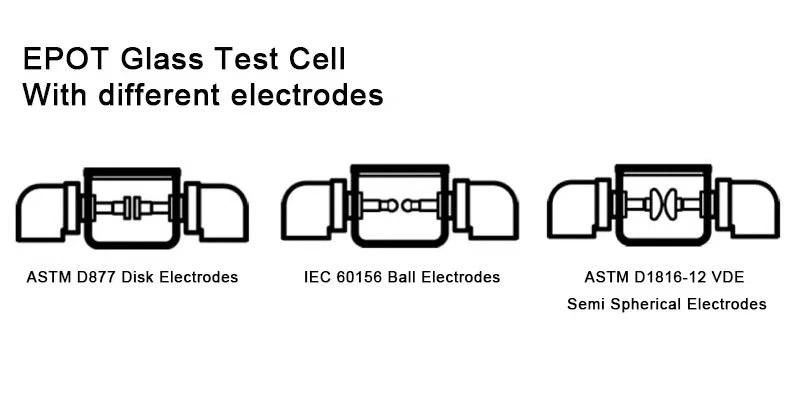

• The oil vessel is made of special glass by one-time casting to prevent the occurrence of oil leakage and interference.
• The unique high-voltage sampling design allows the test value to enter the A / D converter directly, avoids the error caused in the analog circuit, and makes the measurement result more accurate.
• Full protection functions including over-current, over-voltage, short circuit to ensure the safety of operators. And has strong anti-interference ability and good electromagnetic compatibility
• Build-in printer.
• Automatic magnetic bar stir, to eliminate uneven and bubble of oil.
• 100 test data storage, can display the ambient temperature and humidity.
• Portable structure, easy to move, convenient for use indoor and outdoor.



Test voltage	AC 0~80kV (selectable) 100kV is at option
Booster capacity	1.5kVA
Voltage boosting rate	2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s (selectable)
Minimum resolution	Error 0.2kV/s
Power distortion:	<1%
Voltage precision:	±(2%reading+2 digits)
Electrodes Gap:	2.5mm
Dimension:	670 mm×420 mm×410 mm
Weight:	42kg
Environmental temperature:	0-40ºC
Relative humidity:	≤75%RH
Working power	AC 220V ± 20%
Power Frequency	50 Hz ± 5 Hz
Standing time	The default value is 15 min, and the optional range is 1-15 min (increment step is 1 min).
Interval time	The default value is 5 min, and the optional range is 1-10 min (increment step is 1 min).
Stirring time:	The default value is 10 s, the optional range is 5-90 s (increment step is 5 s)
Boosting voltage:	The default value is 80 kV, and the optional range is 10-80 kV (increment step is 10kV).
Testing time:	The default value is 6 times, and the optional range is 1-6 times (increment step is 1 time)
Vessel select:	Test vessel is selectable

 More details on Three Test Cells Oil Dielectric Breakdown Voltage Tester EPOT series please contact EPHipot Electric, we have professional tech team to design correctly designed products and systems.
