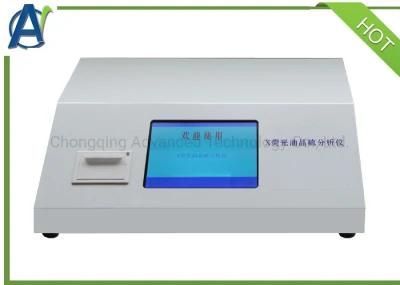

ASTM D4294 Sulfur in Oil Analyzer by Xrf Method

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Test Standard：ASTM D4294
  • Measuring Range：0.0017%~5%
  • Detection Limit：17ppm
  • Sample Quantity：3 Ml-5ml

Base Info

  • Model NO.：SCT-III
  • Dimension：480mm×380mm×140mm
  • Weight：13kg
  • Test Time：30, 60, 90, 120, 150s
  • Display：LCD
  • Application：Oil Testing
  • Transport Package：Plywood Case
  • Specification：Small
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Measuring range0.0017%~5%2Repeatability (r)<0.4347 X0.64463Reproducibility (R)<1.9182 X0.64464Detection limit17 PPM5Oil sample quantity3 ml-5ml6Measurement time

it can preset 30, 60, 90, 120, 150s, measurement repeat times:1, 2, 3, 5, 10(times).

(The default measurement time of this instrument is 3 minutes, and the fastest measurement time is 1 minute.)

7Sample measurementAutomatic measurement of single sample, average value and standard deviation at the end of measurement.8Calibration curve numbersit can save 10 calibration curves.9Working conditionAmbient temperature: (10~30)ºC
Relative humidity: ≤85% (30ºC)10Dimension480mm×380mm×140mm11Weight13KG
Factory overview
ASTM D4294 Sulfur in Oil Analyzer by Xrf Method

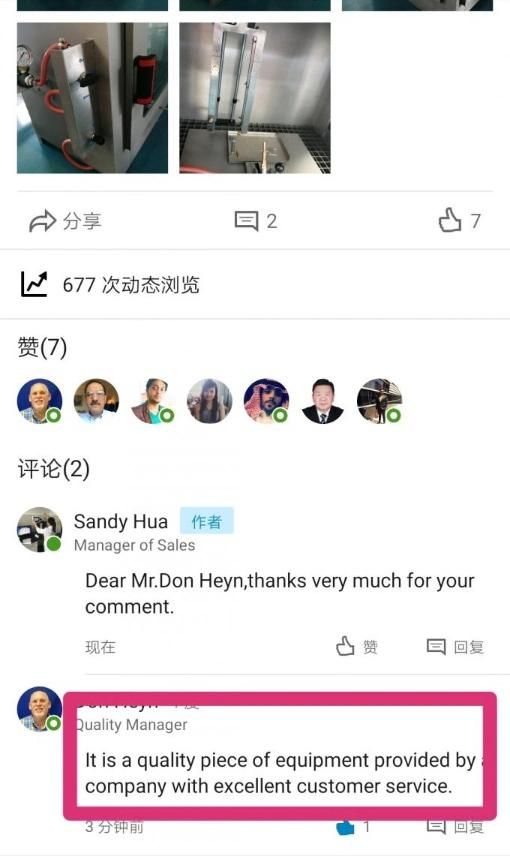

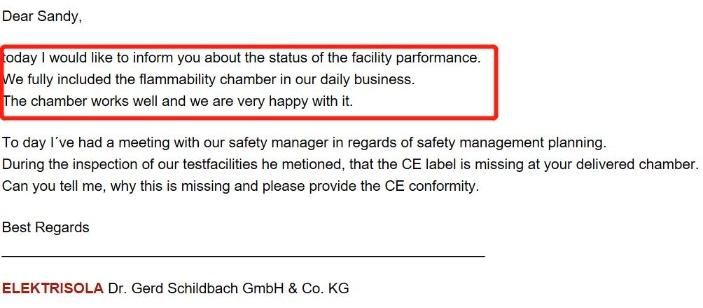

Customer Feedback

Germany
ASTM D4294 Sulfur in Oil Analyzer by Xrf Method
USA
ASTM D4294 Sulfur in Oil Analyzer by Xrf Method
FAQ
1.What's the delivery time?
About 30 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
