• Model NO.：KMH-408L
• Humidity Range：20-98%R.H.
• Temp. Constancy：+,-0.5oc
• Humidity Constancy：+,-2.5%R.H.
• Equipment Power：7.5kw
• Heat up Time：-40 Oc~+100 Oc Within 45mins
• Pull Down Time：+20 Oc~-40 Oc Within 60mins
• Power：AC380+,-10% 50Hz 3phase4wires+Groud Wires
• Transport Package：Strong Plywood Case, Meet International Standards
• Specification：CE, SGS
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

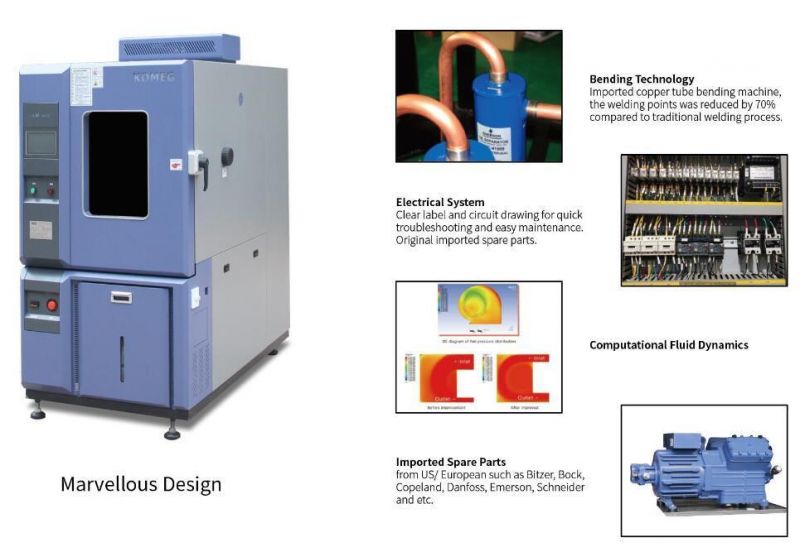

Environmental Temperature and Humidity Chamber

Secifications ( at +20ºC room temp.  Or+25ºC water temp with empty load)ModelKMH-R seriesKMH-L seriesKMH-S series150R225R408R800R1000R150L225L408L800L1000L225S408S800S1000STemp. range -20ºC~150ºC -40 ºC~+150ºC -70ºC~+150ºC Interior sizelW(mm)600700700100010006007007001000100070070010001000H(mm)600700750100010006007007501000100070075010001000D(mm)460480800800100046048080080010004808008001000Exterior sizeW(mm)880980980128012808809809801280128098098012801280H(mm)17301890194021602160173018901940216021601890194021602160D(mm)14001460174017501950140014601740175019501460174017501950Power(KW)5.867.512.812.87.57.58.514.514.59.510.618.518.5Weight(KG)240280400500580250300420530600330450550650Humidity uniformity±3.0%R.H±5.0%R.H±3.0%R.H±5.0%R.H±3.0%R.H±5.0%R.HHeat up time -20ºC~+100ºC,within 35 min -40ºC~+100ºC, within 45 min -70ºC~+100ºC,within 60 minPull down time +20ºC~-20ºC, within 45 min +20ºC~-40ºC , within 60 min +20ºC~-70ºC,within 80 minStandard accessoriesSight window*1,  cable port(portΦ50mm)*1,   shelves*2,    chamber lamp*1,    power cable *2mSafety device  (standard)No fuse breaker, over pressureover heat and over current protection for compressor,
Over temp. protect, over load protect of blower, dry heat protectionControl SystemBalanced Temperature & Humidity Control SystemRefrigeration systemAir Cooled (Water Cooled Type is option)Hermetic compressor,Single stage refrigeration system,                          CFC-Free refrigerant(HFC-507/HFC-23)Hermetic compressor, Cascade Refrigeration ,             CFC free refrigerant                           (HFC-507/HFC-23)ControllerPanel:7-inch LCD Touch panel,    Chinese or English display selectableOperation model :Program or fix point runningMemory capacity :120programs,1200steps,All repeat 999 cycles, part repeat 99 cyclesHumidity Range20~98%R.HTemp. constancy±0.5ºC   Humidity constancy±2.5%R.HTemp. uniformity±2.0ºCInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane Foam and Glass Fiber WoolAmbient Temp.+5ºC~+35ºCWiring method AC 380±10%50Hz ,3 phase 4 wires +Ground WiresNote:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
Standard configurations:
Sight window X 1
Cable port (port Ø 50mm) X 1
Shelves X 2
Chamber lamp X 1
Power cable X 2m
No fuse breaker, over-pressure, over-heat and over-current for compressor, over-temperature, overloading of blower, dry heat-protection
Optional accessories:
Cable port: Ø 100mm is available
Shelves
RO-type water purifier: R-80/day
Provided to keep the humidifying heater and wet bulb wick free from scale
Inner glass door with operating port: A glass door can be provided behind the main door so that specimens can be observed
Two operating ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door
Dehumidifier: The rotation regenerating dehumidifier M-120 ensures precise control of low-humidity (5° C 5% RH) for electronics
