• Model NO.：KTS-252A
• Exterrior Dimension(W*H*D)：1750*2000*1930mm
• High Temp. Chamber：+60 Oc~+200 Oc
• Low Temp. Chamber：-55 Oc~-10 Oc
• Pre-Heat Time：+60 Oc~+200 Oc Within 20mins
• Pre-Cold Time：+20 Oc~-55 Oc Within 60mins
• Test Chamber：-40 Oc~+150 Oc
• Controller：Touch Screen Controller Chinese and English Menu
• Type：Material Testing Machine
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and customs made, ISO9001, SGS
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

SpecificationsNote:1. We reserve the right to change specifications without prior notice  2. Customized sizes and configurations availableModelKTS-A SeriesKTS-B SeriesKTS-D Series72A100A150A200A252A300A480A72B100B150B200B252B300B480B72D100D150D200D252D300DInterior sizeW(mm)450500600670700800800450500600670700800800450500600670700800H(mm)400450500600600600800400450500600600600800400450500600600600D(mm)400450500500600650750400450500500600650750400450500500600650Exterior sizeW(mm)14901540164017201750185018501490154016401720175018501850149015401640172017501850H(mm)17901840189020002000200022001790184018902000200020002200179018401890200020002000D(mm)16001700183018501930198025001600170018301850193019802500160017001830185019301980Test weight(KG)5101215182020510121518202051012151820Low Temp. chamber -55ºC~-10ºC -70ºC~-10ºC -80ºC~-10ºCPre-heat time +20ºC~-55ºC ,Within 60 min +20ºC~-70ºC ,Within 60 min +20ºC~-80ºC ,Within 60 mins Test. chamber -40ºC~+150ºC -55ºC~+150ºC -65ºC~+150ºCHigh Temp. chamber +60ºC~+200ºCPre-heat time +60ºC~+200ºC ,Within 20 minRecovery timeHigh-Temp Exposure 30 minLow-Temp Exposure 30 minRecovery time within 5 minSafety deviceNo fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection,                            over load protection for blower, dry heat protectionStandard accessoryCable port(portΦ50mm)*1,   shelves*2Interior materialStainless steel plate(SUS 304)Exterior materialBaked painting steel or stainless steel(SUS304)Insulation materialRigid polyurethane Foam+glass fiber woolRefrigeration systemWater CooledSemi-hermetic compressor, cascade  refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel:7-inch LCD Touch panel,Chinese or English display selectableOperation model:Program or fix point runningMemory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.Accuracy:Temp.:0.1% of F.S±1 digit     Humidity:0.1% of F.S±1 digitInput:Temp.:pt-100                Humidity:pt-100 or ~5V DCVAmbient Temp.+5ºC~+35ºCPowerAC 380±10%50Hz,3 phase 4 wires +Ground Wires

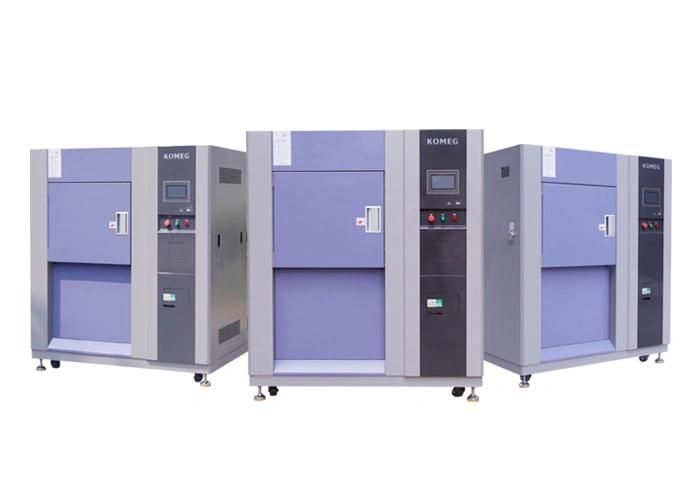

KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
The vertical, two-zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three-zone thermal shock chamber utilizes controlled areas for hot, ambient, and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two-compartment product carrier that simultaneously moves products between the hot and cold zones.
