• Model NO.：TR-TC-Q9704
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Quality：Same as OEM
• Transport Package：Paper,Wood Box
• Specification：Stainless Steel
• Trademark：TRYTE
• Origin：China,Hongkong
• Production Capacity：15000PCS,Year

Basic Info.

Model NO. TR-TC-Q9704 Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Quality Same as OEM Transport Package Paper/Wood Box Specification Stainless Steel Trademark TRYTE Origin China/Hongkong Production Capacity 15000PCS/Year

Product Description

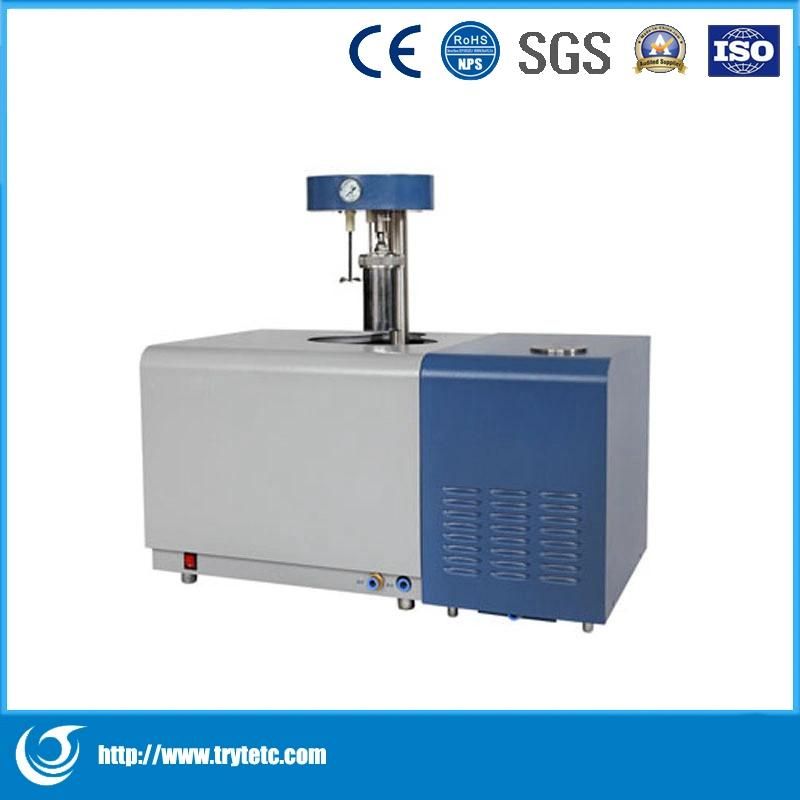

Fully Automatic Calorimeter-Bomb Calorimeter-Oxygen Bomb Calorimeter

Application area:

It is applicable in the industry such as electrical power, coal, papermaking, petrochemical, cement, farming, medical research, and instruction to measure the Calorific Value of combustible materials.



Technical parameters:

Calorimeter type: Isoperibol
Temperature range: 5ºC~40ºC

Measuring Range:5MJ/kg~40MJ/kg

Temperature resolution: 0.0001ºC
Precision (Precision Mode): RSD≤0.1%
Testing time (Precision Mode): 8 min
Power Supply: 220V, 50/60HZ
Power: ≤1.5kw
Dimension: 630mm×420mm×450 mm
Weight: 55kg



Features:

1.CE certificated; exported to European countries.

2. With the semi-conductor water refrigeration system, the instrument can automatically determinate the refrigerating capacity and balance the circulation system according to the caloric of previous time. Thus the water temperature can be kept constant, and the influence of environment can be greatly reduced. Perfectly solved the problem that the tests cannot be made continuously after 4-5 tests have been made because the temperature difference between outer bucket water and environment exceeds 1.5ºC.

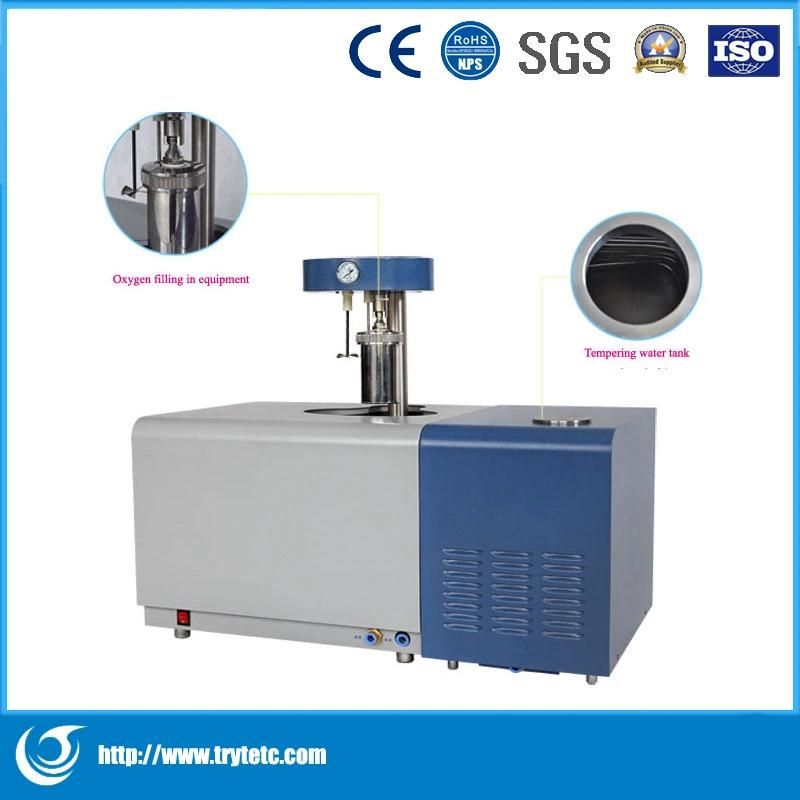

3.Equipped with the latest oxygen bomb, auto oxygen filling facility, and auto elevating system. All the work the operator need to do is to put the sample-filled oxygen bomb on the pothook, then it will automatically descend to the set position and fill oxygen. After the experiment, the oxygen bomb will automatically ascend and let the exhaust gas out of the laboratory, so the laboratory can be kept clean.

4. All the processes in the experiment are automatic, there is no need to fill oxygen, relief air, measure water, adjust water temperature. So the workload is greatly reduced.

5. Probe-type electronic measuring cup is used to measure the inner bucket water, repetition error is less than 0.5g, so the water quantity is more accurate and the testing time is shorter.

6. With the high-efficiency magnetic force churning facility, the water in the inner bucket convect more quickly, so the main testing period is more stable.

7. The special auto stop and auto draining joints are equipped to change the water. When the drainpipe is connected, the instrument discharge water; when the drainpipe is taken off, the water will stop effusing.

8. Using the advanced USB technology, one computer can control 1-4 calorimeter buckets or other instruments, thus to make up synthesized testing instrument.

9. Completely support Windows systems; high stability; can link electronic scale and share data in long distance through network.

Packing:




Company Information:





    As a diversified manufacturer of high-tech products, it was founded in 1999, and devoted to the products, sales and technical service for various industries and fields like Energy analysis instrument, Oil, coal, steel, and geology; medical analysis and application instruments, biochemistry analyzer, elisa reader, blood analyzer,and urine; as well as laboratory application instruments,autoclave/sterilizer,freeze dryer, incubator,drying oven,balance,ICP,DRS,HPLC,gas chromatography,and spectrophotometer,meanwhile,TRYTE Technologies integrated and purchased some companies of PCB board, highway instruments at home and abroad. Our company has become the "one stop" instrument procurement service provider worthy of the name.
      TRYTE technologies (TRYTE) mainly sell products by selling direct to customer, but also through distributors, resellers and manufacturer representatives, telephone sales and e-commerce sales, customers cover all over 80% of the world's countries and regions.TRYTE have solutions with rules adaptability according to the specific requirements of the design, from the instrument to some laboratories or departments.Whichever kind of solution you choose, you can fully trust it, because it is proved from 100, 00 successful results, leading development process, and decades of actual certification experience.
