Solar Panel PV Module Environment Chamber UV Preconditioning Test Machine

Dongguan Hong Tu Instrument Co., Ltd.
  • Max Diameter of Workpiece：>3200mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HTPV-13A
  • Display：Digital
  • Control：PLC Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Contller：PLC Controlled
  • Material：Stainless Steel and Aluminum Alloy
  • Standard：IEC61215 IEC61646
  • Certificate：ISO SGS
  • Delivery：30 Work Days
  • Packages：Strong Wooden Case
  • Wararnty Time：30 Work Days
  • Transport Package：Wooden Case
  • Specification：IEC 61215-2005 and ED. 1, IEC 61646-2008
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：50 Sets Per Month

Description

Use materialcan completely obstruct ultraviolet rays, tightness, good thermal insulation's high quality materirals Irradiation area2000mm×2000mmTesting sample quantity2 PCSLight source above 2000hoursLight brandGermany holen Single lamp UVA and UVB relative energy rateUVB approx occupy total energy 3%~10%Irradiation strengthwavelength 280nm~400nm's irradiation strength can reach about 200W/m2, promise the test cycle reduce as far as possibleIrradiance uniformitybetter than ±15%Monitor and display waysReal-time monitor and show UVA and UVB strengthModule surface temperature60ºC±5ºCTemperature resolution0.1ºCOzone Amost no ozones is producedLight waysupper light, module test plane vertical light sourceControl ways Touch screen control Electricity380V 60HZ

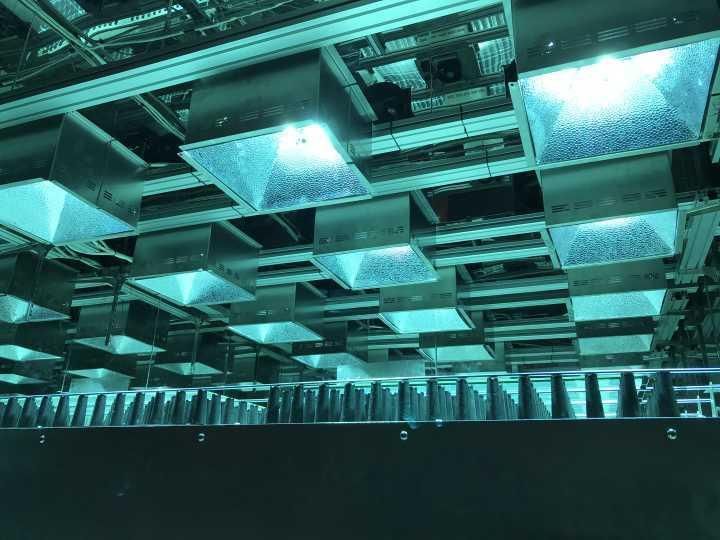

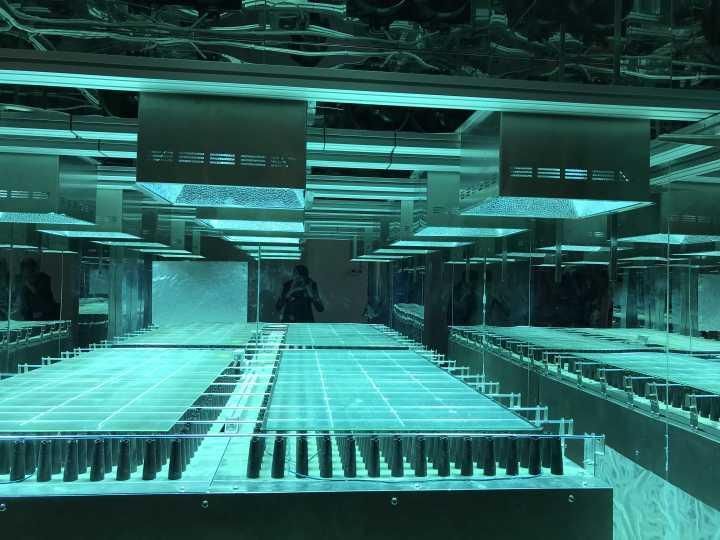

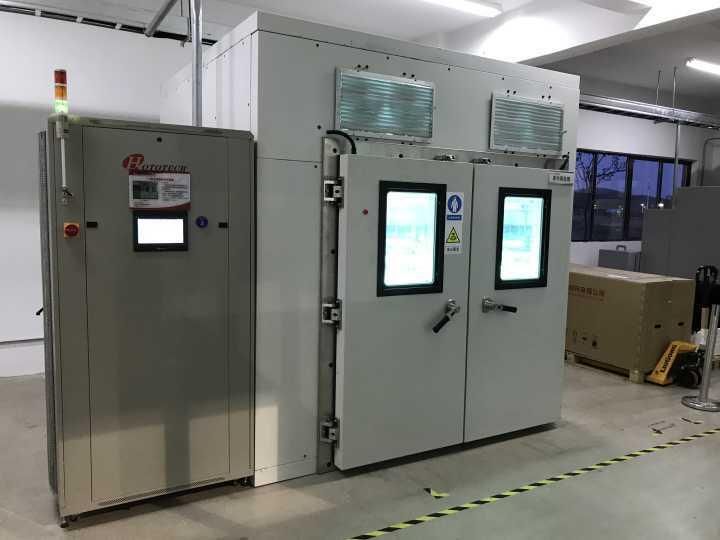

The Testing Machine appearance and details
Solar Panel PV Module Environment Chamber UV Preconditioning Test Machine

Solar Panel PV Module Environment Chamber UV Preconditioning Test Machine

Solar Panel PV Module Environment Chamber UV Preconditioning Test Machine
