Yaw-100d 100kn/200kn/300kn Computer Electronic Compression Tester

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：Standard
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Compression Testing Machine
  • Maxcapacity：100kn,200kn,300kn

Base Info

  • Model NO.：YAW-100D
  • Accuracy Grade：1
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Computer
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC 380V ,220V
  • Oil Cylinder Position：Under
  • Color：Gray, White , Blue,Green or Customized
  • Resolution：0.01kn
  • Distance Between Pressure Plate：280mm
  • Distance Between Columns：300mm
  • Pressure Plate：60mm
  • Compression Testing：Application
  • Transport Package：Standard Sea Shipping Case
  • Specification：630*457*1410mm
  • Trademark：HST or OEM
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Sets,Month

Description

Overview Floor typeControl methodConstant stress and displacement, closed loop control methodAccuracy class1 classTest force range2%~100%F·STest force value accuracyBetter than ±1%Force display resolution20000Displacement value accuracyBetter than ±0.5%Displacement resolution0.005mmDisplacement rate control range0.05~40mm/minStress rate control range0.05~10KN/SCompression stroke80mmMax distance between upper and lower pressure plate280mmMax distance between two columns300mmProduct Description

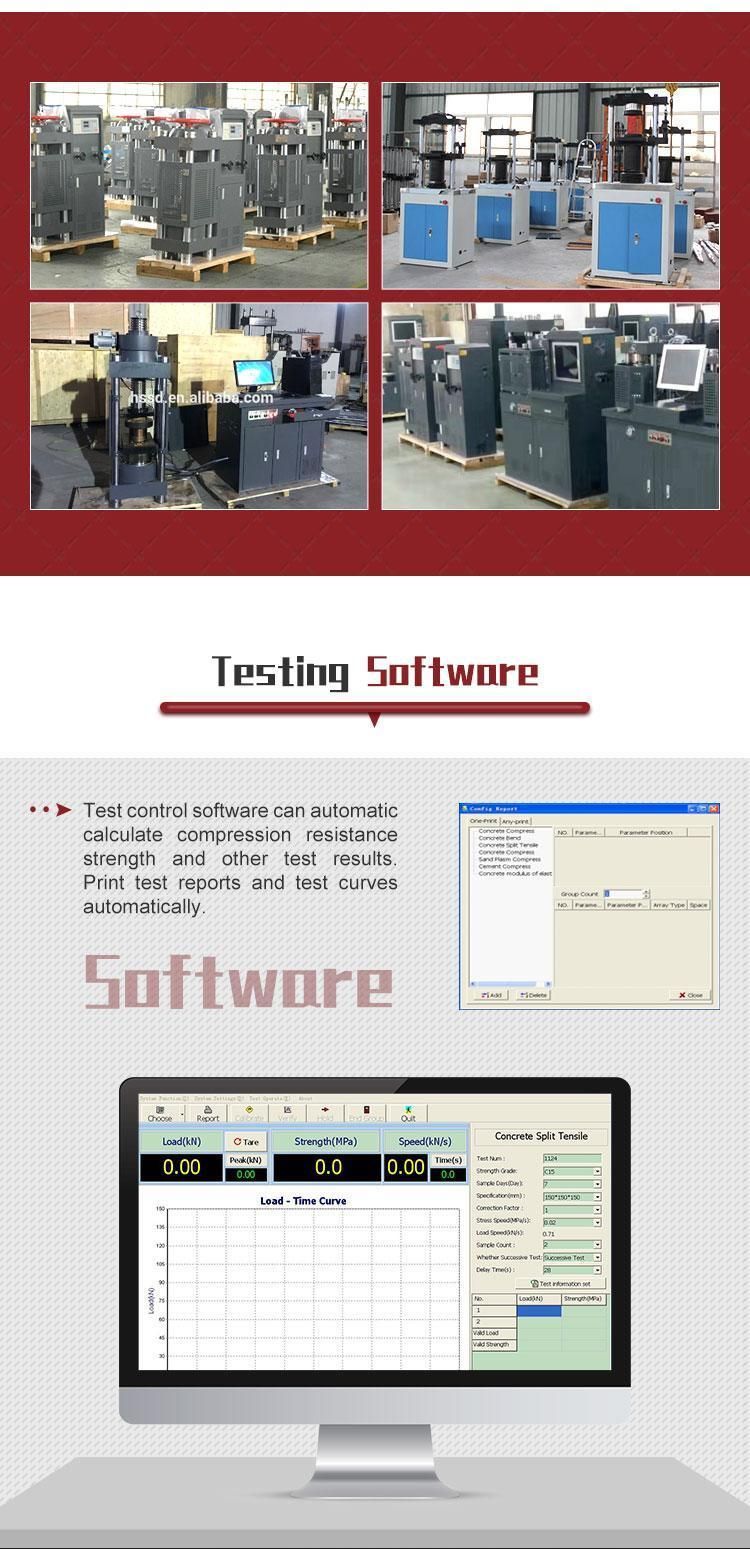

Our workshop:Yaw-100d 100kn/200kn/300kn Computer Electronic Compression TesterYaw-100d 100kn/200kn/300kn Computer Electronic Compression Tester

Our customers



Yaw-100d 100kn/200kn/300kn Computer Electronic Compression Tester
Yaw-100d 100kn/200kn/300kn Computer Electronic Compression TesterOur exhibation

Yaw-100d 100kn/200kn/300kn Computer Electronic Compression Tester

Certifications

Yaw-100d 100kn/200kn/300kn Computer Electronic Compression Tester

Packaging & Shipping

Yaw-100d 100kn/200kn/300kn Computer Electronic Compression Tester

Contact

Dear customers, for more informations please send enquiry directly to Tina:
