• Model NO.：TMAX-QXQM

Basic Info.

Model NO. TMAX-QXQM

Product Description

0.4L-100L Omni-directional Planetary Ball Mi
 Overview

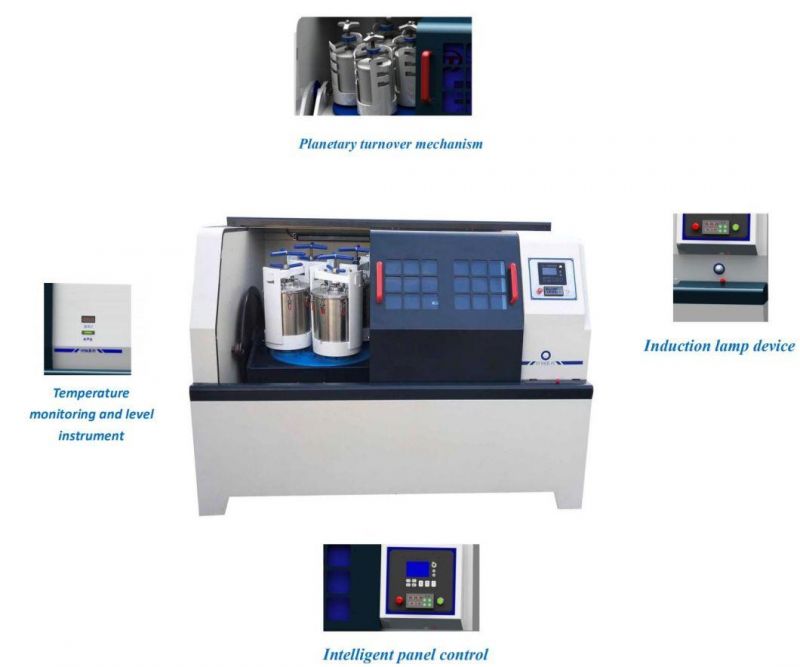

The omni-directional planetary ball mill is based on the vertical ball mill, adding planetary rotation and overturning function. When the material in the planetary plate and ball mill jar is planetary, the ball can also do 360 ° overturning in a fixed space, so as to realize the multi-dimensional movement of the ball and material in the ball mill jar, and improve the disorder movement of the ball and material. There is no dead angle grinding for the whole material in the grinding tank, which makes the grinding material more uniform, and can effectively solve the problems of some materials sinking to the bottom and sticking to the tank.

Features:

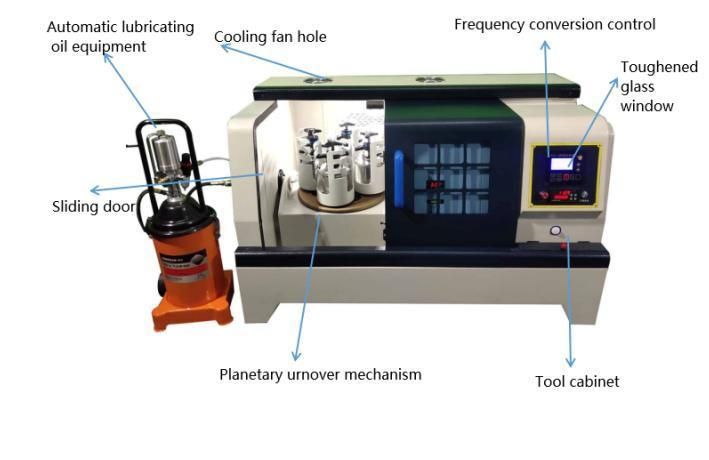

1. The equipment is light, with a push-pull door, which is convenient for operation.

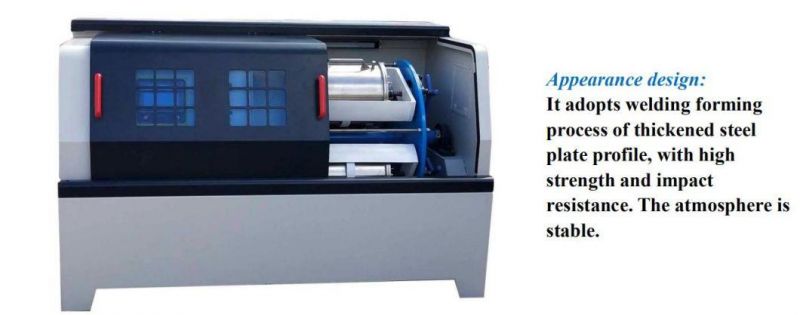

2. The shell adopts high precision laser cutting, CNC bending forming, elegant and exquisite, high-end and stable planetary disk, the structural components are processed by numerical control processing technology, and the metal heat treatment process of air infiltration is used to ensure the rotational speed of shaft parts, wear resistance and prevent shaft breakage.

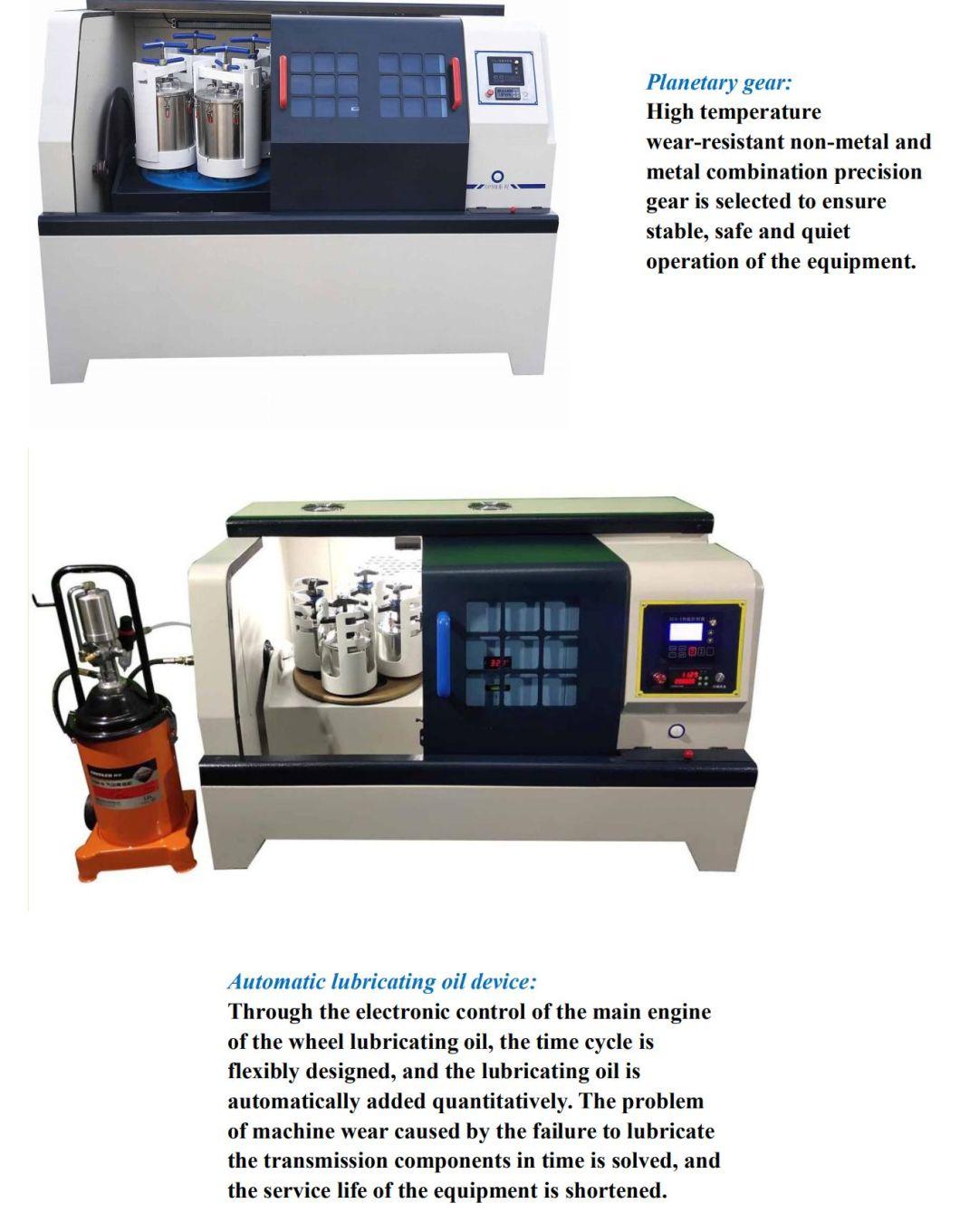

3. High temperature and wear-resistant non-metal and metal precision gear is adopted for rotating gear, and lubricating grease is used for lubrication.
4.Automatic lubricating oil device:
Through the electronic control of the main engine of the wheel lubricating oil, the time cycle is flexibly designed, and the lubricating oil is automatically added quantitatively. The problem of machine wear caused by the failure to lubricate the transmission components in time is solved, and the service life of the equipment is shortened.

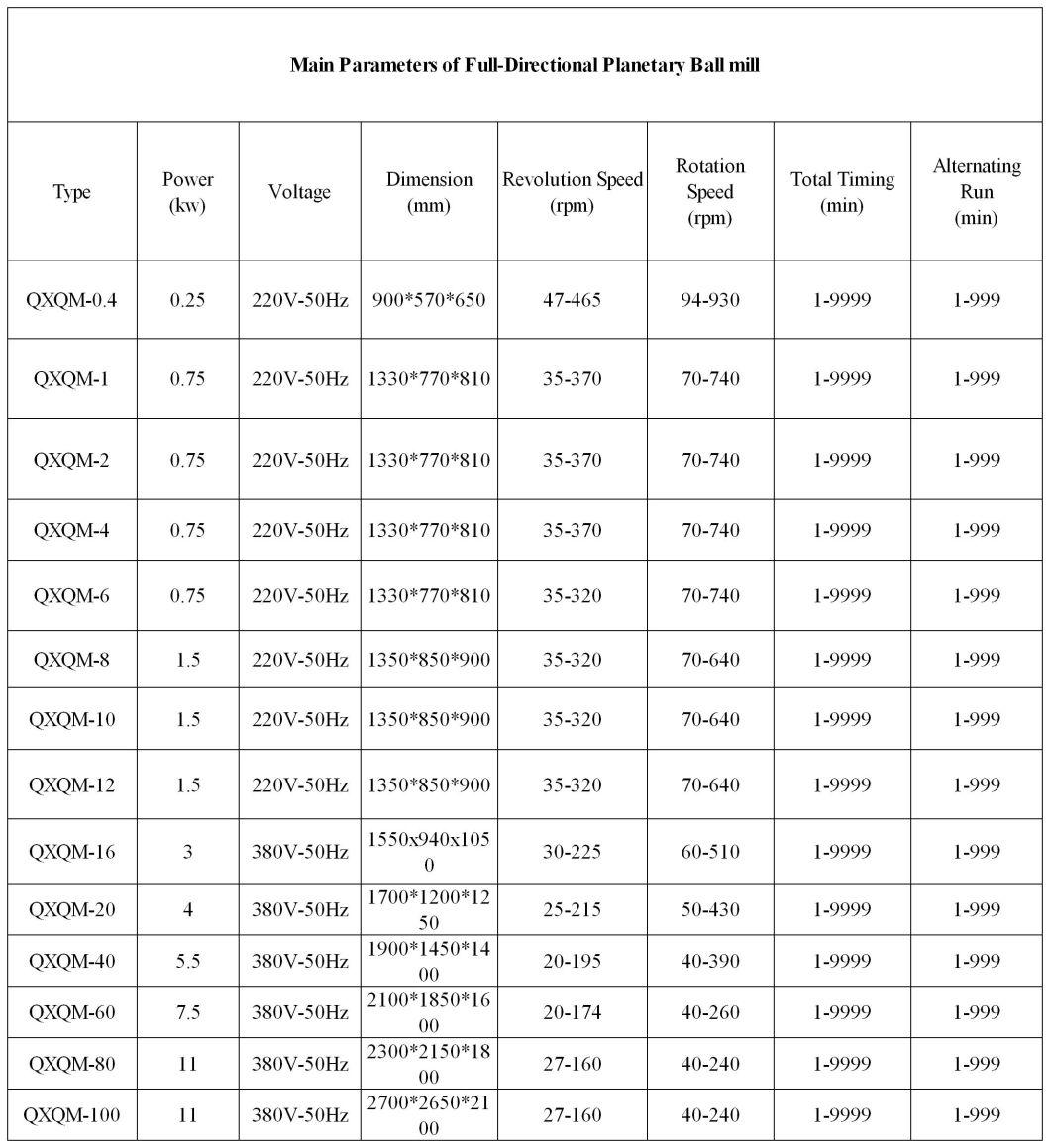

Specifications

Drive Mode	Gear drive
Operate Mode	Two or four grinding jars working together
Maximum Loading Capacity	2/3 of the total volume of milling jars
Each Jar's Volume	0.1L-25L; Total:0.4L-100L
Feeding Size	Soil material≤10mm,other materials≤3mm
Output Granularity	Smallest granule reaches 0.1μm
Rotational Speed Ratio	1:2
Max.Continuous Operating Time	48 Hours
Materials of Jar	Stainless steel.agate,nylon,corundum,zirconia,etc
