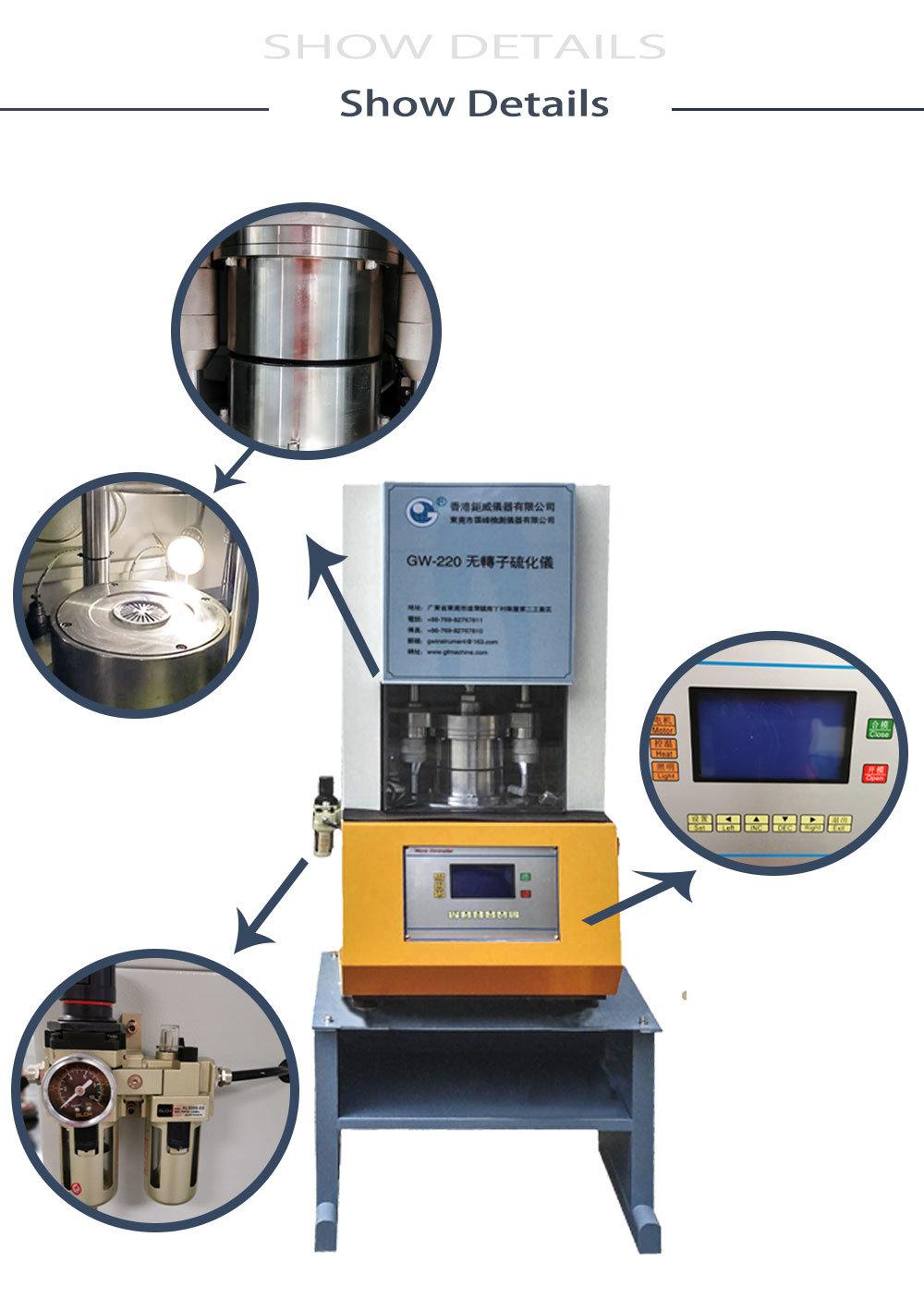

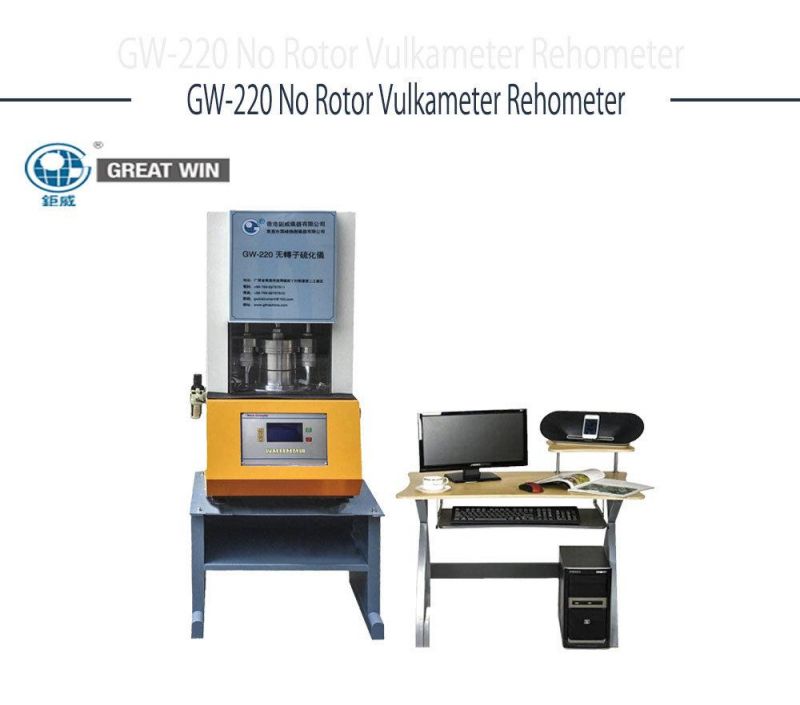

High Quality Rubber Moving Die Rheometer (GW-220A)

GREAT WIN INSTRUMENT CO., LTD.
  • After-sales Service：Online Service or Door to Door Training
  • Warranty：1 Year
  • Max Diameter of Workpiece：1200mm
  • Mass Scope of Workpiece：<900kg
  • Type：Rubber Rheometer
  • Maxcapacity：Rubber Rheometer

Base Info

  • Model NO.：GW-220A
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Computer Rubber Rheometer

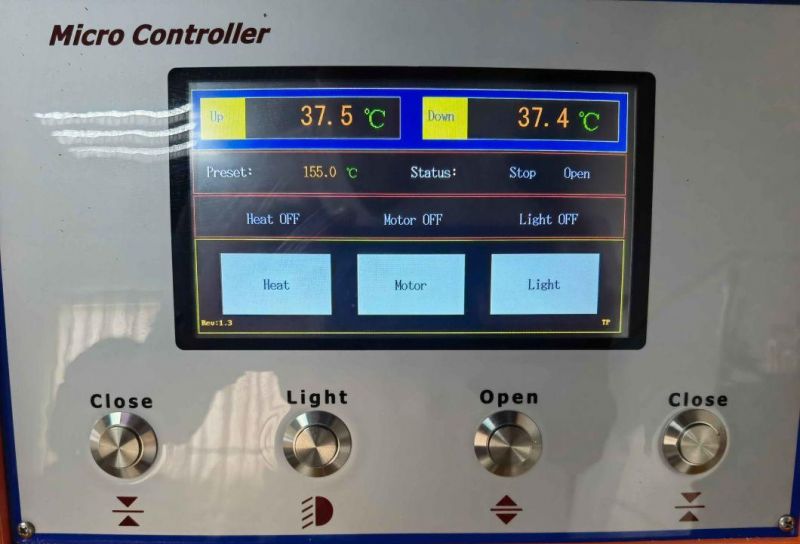

  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-220A
  • Torque Range：0-5n.M 0-10n.M 0-20n.M
  • Air-Pressure Requirement：0.5MPa--0.65MPa (User Prepare The Dia 8 Trachea)
  • Swing Frequency：100r,Min(About 1.67Hz)
  • Temperature Resolution：0.1 Centigrade
  • Torque Resolution：0.001nm

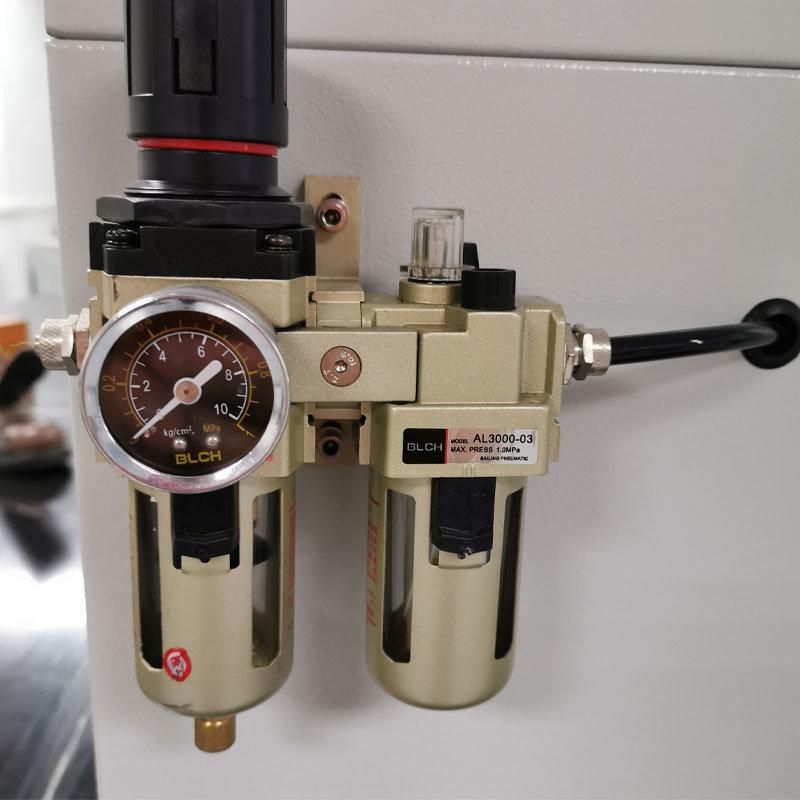

  • Compressed Air：0.35-0.40MPa
  • Transport Package：Standard Export Safety Packing
  • Specification：60KG
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Heating rate
 15ºC/min
 Control range
 Room temperature~200 ºC
 Minimum display
 0.01ºC
 Torque Range
 0--20NM
 Minimum torque reading
 0.001NM
 Number swing angle
 ±0.5ºC ,±1ºC ,±2ºC (Standard angle 1 degree)
 Swing angle
 100r/min(1.66HZ)
 Weight
 244kg
 Voltage
 220V
 Power
 1000W



•Standard for:
GB/T16584 ISO6502


High Quality Rubber Moving Die Rheometer (GW-220A)
High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)
High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)High Quality Rubber Moving Die Rheometer (GW-220A)


What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?

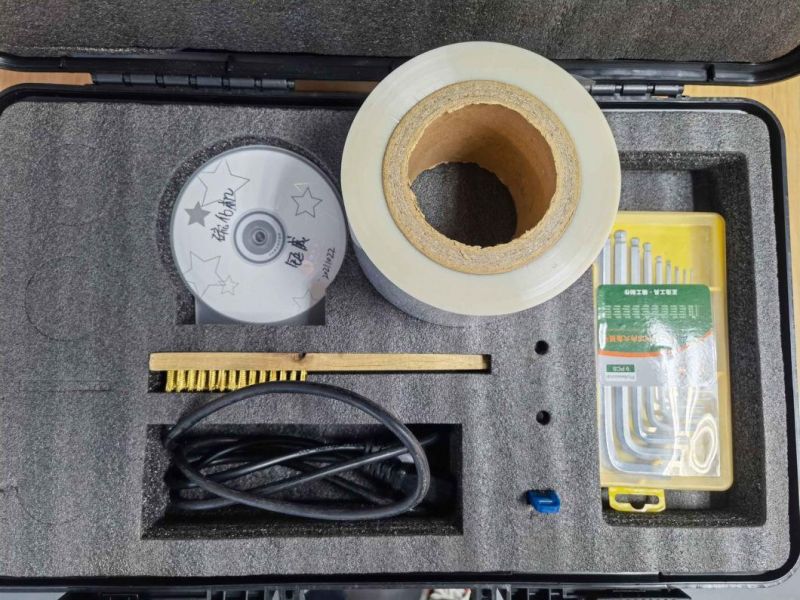

We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
