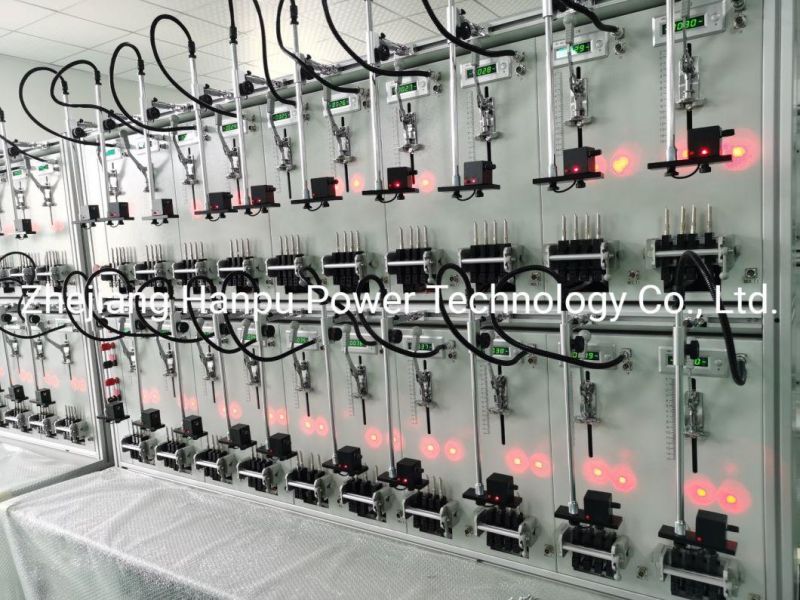

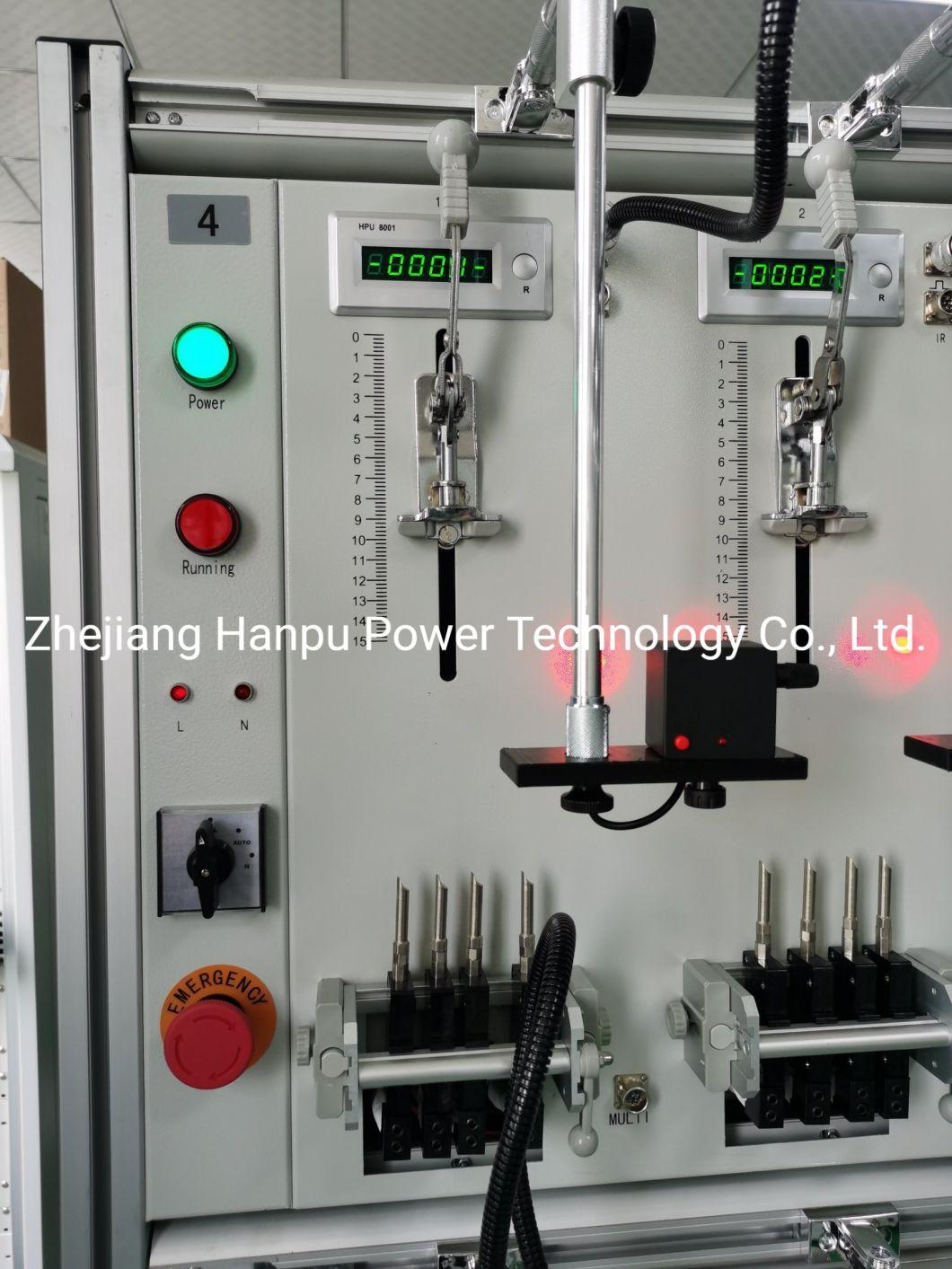

1pH Electrical Meter Test with 40 Positions
Zhejiang Hanpu Power Technology Co., Ltd.- After-sales Service:Yes
- Warranty:12months
- Max Diameter of Workpiece:2400mm
- Mass Scope of Workpiece:2000kg
- Type:Universal Testing Machine
- Maxcapacity:50-288V
Base Info
- Model NO.:PTC8125D-40
- Accuracy Grade:0.05 , 0.1
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Digital
- Control:Computer Control and Manual Control
- Weight:1000-2000Kg
- Power Source:50-288V
- Oil Cylinder Position:Under
- The Test Bench Accuracy Class:0.05
- Reference Standard Energy Meter:Hc3101B Accuracy Class: 0.05
- Output Frequency Range:45Hz~65Hz; Resolution: 0.01Hz
- 2.9numbers of Calibrated Energy Meter:40
- Transport Package:Standard Wooden Case
- Specification:0.05
- Trademark:Hanpu
- Origin:Zhejiang Jiaxing
- HS Code:9030849000
- Production Capacity:3000
Description
Overview
3.1 Accuracy class: 0.05 / 0.1
3.2 Reference standard energy meter:
HC3101H, Accuracy class: 0.02
Or HC3101A, Accuracy class: 0.05/0.1
3.3 Output Voltage: Range: 220V(120V and 240V optional)
Adjustment range: 0 ~ 120%
Fine adjustment: Better than 0.01%
3.4 Output current: Range: 0.1A ~ 100A(max 200A optional)
Adjustment range: 0 ~ 120%
Fine adjustment: Better than 0.01%
3.5 Phase range: 0-359.9 °; Fine adjustment: 0.01 °
3.6 Frequency: 45-65Hz; Fine adjustment: 0.01Hz
3.7 Output waveform distortion coefficient: Voltage, current ≤ 0.5%
3.8 Output voltage, current, power stability ≤ 0.05% (180s)
3.9 Output capacity: Voltage: ≥ 15VA, current: ≥25VA(every meter)
3.10 Load: Resistive, inductive and capacitive
3.11 Harmonic Output: 2- 21 harmonic, content ≤ 40%; 3, 5, 7 or any 3rd harmonic superposition, cumulative content ≤ 40%
3.12 Starting current output: 5mA (min), accuracy: ≤ 5%; Starting power: Accuracy: ≤ 5%
3.13 Communication test: RS485 communication test, carrier wave communication test (optional).
3.14 Numbers of calibrated energy meter: 40 (12/24/48 on requested )
3.15 Environmental condition:
Operating environment temperature: 20ºC±5ºC;
Ambient environment humidity: 40% -60% RH
3.16 Input power: AC220V ± 15%, frequency: 50 ± 5% Hz
4. Other details
Product Description
Detailed Photos
Product Parameters
3. Specification
3.1 Accuracy class: 0.05 / 0.1
3.2 Reference standard energy meter:
HC3101H, Accuracy class: 0.02
Or HC3101A, Accuracy class: 0.05/0.1
3.3 Output Voltage: Range: 220V(120V and 240V optional)
Adjustment range: 0 ~ 120%
Fine adjustment: Better than 0.01%
3.4 Output current: Range: 0.1A ~ 100A(max 200A optional)
Adjustment range: 0 ~ 120%
Fine adjustment: Better than 0.01%
3.5 Phase range: 0-359.9 °; Fine adjustment: 0.01 °
3.6 Frequency: 45-65Hz; Fine adjustment: 0.01Hz
3.7 Output waveform distortion coefficient: Voltage, current ≤ 0.5%
3.8 Output voltage, current, power stability ≤ 0.05% (180s)
3.9 Output capacity: Voltage: ≥ 15VA, current: ≥25VA(every meter)
3.10 Load: Resistive, inductive and capacitive
3.11 Harmonic Output: 2- 21 harmonic, content ≤ 40%; 3, 5, 7 or any 3rd harmonic superposition, cumulative content ≤ 40%
3.12 Starting current output: 5mA (min), accuracy: ≤ 5%; Starting power: Accuracy: ≤ 5%
3.13 Communication test: RS485 communication test, carrier wave communication test (optional).
3.14 Numbers of calibrated energy meter: 40 (12/24/48 on requested )
3.15 Environmental condition:
Operating environment temperature: 20ºC±5ºC;
Ambient environment humidity: 40% -60% RH
3.16 Input power: AC220V ± 15%, frequency: 50 ± 5% Hz
4. Other details
